Applied anatomy and clinical significance of three-dimensional reconstruction of the lumbosacal plexus

doi:10.3969/j.issn.2095-4344.2016.53.006

Abstract

Abstract:

BACKGROUND: Conception of three-dimensional reconstruction of the lumbosacal plexus is confused, and actual physical anatomy is needed to confirm its range and area thus providing guidence for clinical pratice.

OBJECTIVE: To measu the range and area of three-dimensional reconstruction of the lumbosacal plexus using different definitions, thereby providing anatomical basis for minimally invasive technique of lumbar disc.

METHODS: Posterior dissections of the lumbosacral plexus were performed bilaterally on 20 embalmed adult cadavers. Particular attention was paid to dissect anterior branches of lumbar nerve, upper articular process and lower vertebrae. Bilateral nerve roots at each spinal level were identified, and dissected distally to expose the plexus. The length of bottom and height of three-dimensional reconstruction locating on the lateral upper articular process between L₃-S₁ and the lateral of dural sac were measured to calculate the area.

RESULTS AND CONCLUSION: (1) The area of three-dimensional reconstruction locating on the lateral upper articular process between L₃-S₁ ranged from 23.8 mm² to 30.7 mm²in males, and 18.7 mm² to 27.3 mm², respectively. The area of three-dimensional resconstruction locating on the lateral dural sac ranged from 92.4mm² to 103.7 mm², and 87.5 mm² to 102.7mm², respectively. (2) In conclusion, the area of three-dimensional reconstruction locating on the lateral upper articular process between L₃-S₁ and dural sac covers from 18.7 mm² to 30.7 mm², and from 87.5 to 103.7 mm², respectively, so operating in this triangle is safe.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Lumbosacral Plexus, Dissection, Intervertebral Disk, Tissue Engineering

CLC Number:

R318

Zhu Ai-guo, Chen Yun, Zhang Feng, Zhu Jian-wei, Jin Guo-hua. Applied anatomy and clinical significance of three-dimensional reconstruction of the lumbosacal plexus[J]. Chinese Journal of Tissue Engineering Research, 2016, 20(53): 7946-7951.

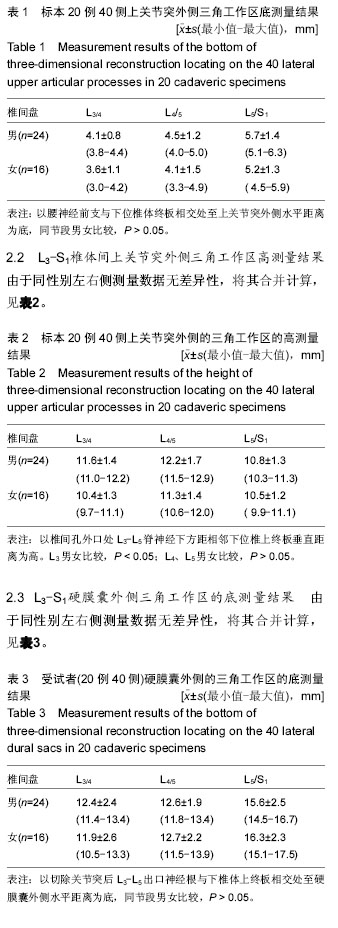

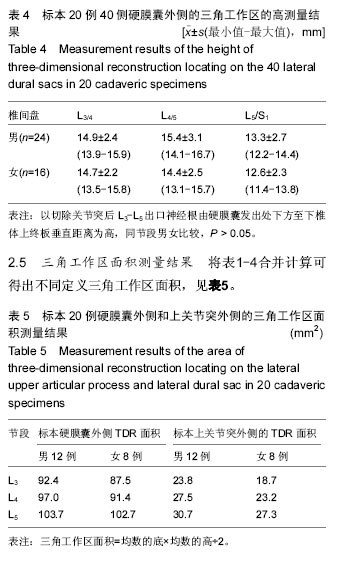

Figures/Tables 2

References

[1] Bridwell KH,Rewald RL.The Textbook of Spine Surgery[M].Lippin-Paven Publisher.1997:1544.

[2] Peng B,Hao J,Hou J,et al. Possible pathogenesis of painful intervertebral disc degeneration.Spine.2006; 31(5):560-566.

[3] Deco RA,Weinstein JN.Low back pain.New Engl J Med.2001;344(5):363-370.

[4] 蔡钦林.有关腰椎间盘突出症与腰椎管狭窄的诊断与治疗[J].中华骨科杂志,1996,16(2):75.

[5] Hijikata S,Yamagishi M,Nakayma T.Percutaneous discectomy:a new treatment method for lumbar disc hemiation.J Toden Hosp.1975;5(1):5-13.

[6] Tsou PM,Yeung AT.Transfororaminal endoscopic decompression for radiculopathy secondary to intracanal noncontained lumbar disc herniations: outcome and technique.The Spine J.2002;2(1):41-48.

[7] Choy DS.Percutaneous laser disc decompression (PLDD):a first line treatment for herniated discs.J Clin Laser Med Surg.2001;19(1):1-2.

[8] Gevargez A,Groenemeyer DW,Czerwinski F.CT-guided percutaneous laser disc decompression with Ceralas D.Eur-Radiol.2000;10(8):1239-1241.

[9] Muto M,Avella F.Percutaneous treatment of herniated lumbar disc by intradiscal oxygen-ozone injection. Intervent Neuroradiol,1998,4:279-286.

[10] Bocci V.Biological and clinical effects of ozone:has ozone therapy a future in medicine? .Br J Biomed Sci.1999;56(4):270-279.

[11] Velio B ed.Oxygen-Ozone therapy:a critical evaluation.Dordrecht: Kluwer Academic,2002,241-324.

[12] 李成.内窥镜下侧入路腰椎间盘切除术临床解剖学研究进展.[J].四川解剖学杂志2007,15(3):40-41.

[13] Kambin P, Brager MD. Percutaneous posterolateral discectomy: anatomy and mechanism. Clin Orthop Relat Res.1987;(223):145-154.

[14] 滕皋军,何仕诚,郭全如,等.非钻孔法经皮穿刺L5-S1椎间盘---附侧后路进针途径的解剖学和X线解剖学研究[J].介入放射学杂志,1994,(3):218-222.

[15] 林炎生,周庭水,韩景如,等.经皮穿刺L3-L4,L4-L5椎间盘的断层解剖与CT[J].广东医学院学报,2002.20(3): 170-171.

[16] 游箭,李春平,杜勇,等. 经皮腰椎间盘后外侧入路三角工作区的薄层断面解剖和三维重建[J].中华创伤骨科杂志, 2008,10(2): 120-123.

[17] Mirkovic SR,Schwartz DG,Glazier KD.Anatomic considerations in lumbar poster-olateral percutaneous rocedures.1995;20(18):965-971.

[18] Regan JJ, McAffee PC, Mack MJ. Arthroscopic Microdiscectomy: Posterolateral Approach. In: Atlas of Endoscopic Spine Surgery.Quality Medical Publishing, Inc.1995:257-273.

[19] 邹德威,马华松,海涌,等. 脊柱内窥镜下腰椎间盘摘除术(附80例初步报告) [J].中国脊柱脊髓杂志, 1998,8(6): 307-310.

[20] 李传健,杨庆贤,钟光明,等.L4-L5和L5-S1旁椎间孔注射穿刺入路的应用解剖研究[J].解剖学研究, 2013,35(1): 58-60.

[21] 刘德隆,田世杰,苏庆军,等. 腰神经根解剖及其在经皮穿刺椎间盘摘除术中的临床意义[J]. 临床骨科杂志, 2000, 2(2):88-91.

[22] 孙良业,张定华,尹超. 经皮穿刺 L4-5 椎间盘后 1/3 路径的应用解剖[J].中华骨科杂志,1995,15(12):865-866.

[23] 滕皋军. 经皮腰椎间盘摘除术[M].江苏:江苏科技出版社, 2000:107.

[24] Hijikata S. Percutaneous nucleotomy:a new concept technique and 12 years’experience．ClinOrthop.1989；238:9-23.

[25] Onik G,Maroon J,Davis GW.Automated Percutaneous diskectomy at the L5-S1 level.Clin Orthop.1989；238: 71-76.

[26] 金大地.腰椎间盘突出症微创手术治疗的相关问题[J].中国脊柱脊髓杂志,2003,13(7): 39.

[27] 郭世绂.骨科临床解剖学[M].山东:山东科技出版社,2001: 154.

[28] Ditsworth DA. Endoscopic transforaminal lumber discectomy and reconfiguration: apostero-lateral approach into the spine canal.Surg Neurol. 1998；49(6): 588-597.

[29] 蔡玉强,曹广如.腰椎间盘突出症和腰椎管狭窄症术中并发症原因分析及处理[J].贵州医药,2006,30(11):1020- 1022.

[30] 陈德玉,卢旭华.腰椎手术并发症与翻修[J].国外医学:骨科学分册,2005,26(6):382-284.

[31] 袁仕国,李义凯,王华军,等.腰椎间盘孔侵入性操作的应用解剖[J].中国临床解剖学杂志,2010,28(2):127-130.
