Finite element analysis of fixed platform prosthesis and rotating platform prosthesis in total knee replacement

doi:10.3969/j.issn.2095-4344.2016.39.004

Abstract

Abstract:

BACKGROUND: There are studies on three-dimensional finite element analysis of total knee replacement, but few research concerns contact pressure and contact area inside and outside polyethylene liner of fixed prosthesis and rotating platform prosthesis in total knee replacement.

OBJECTIVE: To explore the contact pressure and contact area inside and outside polyethylene liner of fixed platform prosthesis and rotating platform prosthesis in total knee replacement.

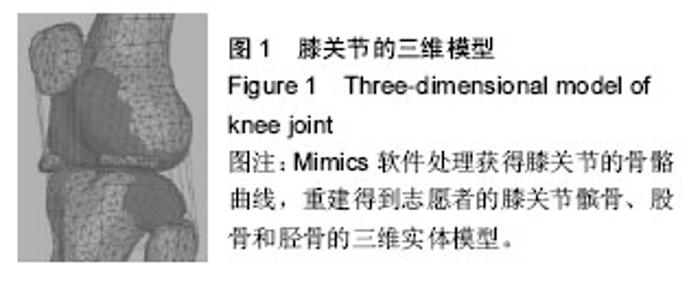

METHODS: We established three-dimensional finite element models of fixed platform prosthesis and rotating platform prosthesis in total knee replacement and compared contact pressure and contact area inside and outside polyethylene liner of fixed platform prosthesis and rotating platform prosthesis in total knee replacement.

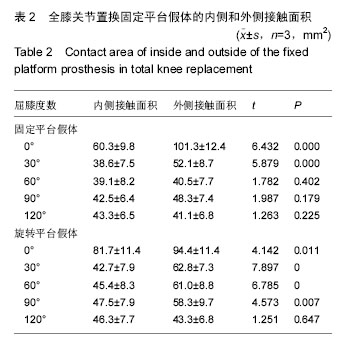

RESULTS AND CONCLUSION: The peak contact pressure inside and outside polyethylene liner of fixed platform prosthesis and rotating platform prosthesis in total knee replacement was minimum at 0° of genuflex. The peak contact pressure inside polyethylene liner was higher than that outside polyethylene liner of fixed platform prosthesis and rotating platform prosthesis in total knee replacement at 0°-90° of genuflex (P < 0.05). The peak contact pressure inside and outside polyethylene liner of fixed platform prosthesis was higher than that of rotating platform prosthesis in total knee replacement at 60°-120° of genuflex (P < 0.05). The contact area inside and outside polyethylene liner of fixed platform prosthesis and rotating platform prosthesis in total knee replacement was maximum at 0° of genuflex. The contact area inside polyethylene liner of fixed platform prosthesis in total knee replacement was lower than that of outside at 0°-30° of genuflex (P < 0.05). The contact area inside polyethylene liner of fixed platform prosthesis in total knee replacement was lower than that of outside at 0°-90° of genuflex (P < 0.05). The contact area inside and outside polyethylene liner of fixed platform prosthesis was lower than that of rotating platform prosthesis in total knee replacement at 30°-120° of genuflex (P < 0.05). These results suggested that peak contact pressure inside polyethylene liner of fixed and rotating platform prostheses was higher than that outside in total knee replacement, and the inside contact area was lower than that of outside. Inside and outside contact pressure of the rotating platform prosthesis was lower than that of fixed platform prosthesis. Inside and outside contact area of the rotating platform prosthesis was higher than that of fixed platform prosthesis.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Arthroplasty, Replacement, Knee, Finite Element Analysis, Tissue Engineering

CLC Number:

R318

Zhang Li-chao, Zhang Li-min, Wu Li-zhu. Finite element analysis of fixed platform prosthesis and rotating platform prosthesis in total knee replacement[J]. Chinese Journal of Tissue Engineering Research, 2016, 20(39): 5801-5806.

Figures/Tables 2

References

[1] Kini SG, Hin LC, Haniball J. Lateral cortex blowout during PFNA blade insertion in a subtrochanteric fracture---Should bone quality determine the type of nail used? Chin J Traumatol. 2015;18(2):116-119.
[2] Sun LJ, Wu ZP, Dai CQ, et al. A comparative study of less invasive stabilization system and titanium elastic nailing for subtrochanteric femur fractures in older children. Acta Orthop Belg. 2015;81(1):123-130.
[3] Zehir S, Zehir R, Sarak T. Early surgery is feasible in patients with hip fractures who are on clopidogrel therapy. Acta Orthop Traumatol Turc. 2015;49(3): 249-254.
[4] Keswani A, Lovy A, Khalid M, et al. The effect of aortic stenosis on elderly hip fracture outcomes: A case control study. Injury. 2016;47(2):413-418.
[5] Parker MJ. Hemiarthroplasty versus internal fixation for displaced intracapsular fractures of the hip in elderly men: a pilot randomised trial. Bone Joint J. 2015; 97-B(7): 992-996.
[6] Tosounidis TH, Lampropoulou-Adamidou K, Kanakaris NK. Intramedullary nailing of sequential bilateral atypical subtrochanteric fractures and the management of distal femoral intraoperative fracture. J Orthop Trauma. 2015. in press.
[7] Iyengar KP, Matar HE, Nadkarni JB. Retrograde Intramedullary Nailing for Femoral Shaft Fractures in Elderly Patients with Previous Ipsilateral Dynamic Hip Screw Fixation. Gerontology. 2015;62(1):16-21.
[8] Kenan S, Gold A, Salai M, et al. Long-Term Outcomes Following Reduction and Fixation of Displaced Subcapital Hip Fractures in the Young Elderly. Isr Med Assoc J. 2015;17(6):341-345.
[9] Liu P, Wu X, Shi H, et al. Intramedullary versus extramedullary fixation in the management of subtrochanteric femur fractures: a meta-analysis. Clin Interv Aging. 2015;10:803-811.
[10] Manohara R, Liang S, Huang D, et al. Cancellous screw fixation for undisplaced femoral neck fractures in the elderly. J Orthop Surg (Hong Kong). 2014;22(3):282-286.
[11] Kini SG, Hin LC, Haniball J. Lateral cortex blowout during PFNA blade insertion in a subtrochanteric fracture---Should bone quality determine the type of nail used? Chin J Traumatol. 2015;18(2):116-119.
[12] Huang SG, Chen B, Zhang Y, et al. Comparison of the Clinical Effectiveness of PFNA, PFLCP, and DHS in Treatment of Unstable Intertrochanteric Femoral Fracture. Am J Ther. 2015. in press.
[13] Makki D, Matar HE, Jacob N, et al. Comparison of the reconstruction trochanteric antigrade nail (TAN) with the proximal femoral nail antirotation (PFNA) in the management of reverse oblique intertrochanteric hip fractures. Injury. 2015;46(12):2389-2393.
[14] 陆建华,张小飞,马向阳,等.亚洲型股骨顺行髓内钉A2FN微创内固定治疗股骨干骨折[J].中国骨与关节损伤杂志, 2013,28(6):562-563.
[15] 吴广森,赵东升,黄爱文,等. Expert A2 FN治疗成人股骨干骨折[J].医学研究杂志,2015,44(5):101-104.
[16] 胥少汀,葛宝丰,徐印坎,等.实用骨科学[M].4版.北京:人民军医出版社,2012:947-948.
[17] 陈孝平,石应康,邱贵兴,等.外科学[M].2版.北京:人民卫生出版社,2010:958-959.
[18] 杜学忠,孙波,李瓦里.微创手术经皮加压钢板系统治疗股骨粗隆间骨折32例体会[J].中国中医骨伤科杂志,2010, 18(3):20-21.
[19] 毕凤江.不同类型老年股骨粗隆间骨折治疗方法进展[J].中国中医药咨讯,2010,2(1):65.
[20] 林祥波.固定与旋转平台膝关节假体有限元?体外生物力学分析及临床应用研究[D].上海:第二军医大学,2009.
[21] 张功林,葛宝丰.股骨粗隆下骨折手术治疗进展[J].中国骨伤,2011,24(9):791-793.
[22] 孙劲.股骨粗隆间骨折髓外内固定方法的进展[J].中国矫形外科杂志,2011,19(2):120-122.
[23] Kim JW, Oh CW, Byun YS, et al. A biomechanical analysis of locking plate fixation with minimally invasive plate osteosynthesis in a subtrochanteric fracture model. J Trauma. 2011;70(1):E19-23.
[24] Varela-Egocheaga JR, Iglesias-Colao R, Suárez-Suárez MA, et al. Minimally invasive osteosynthesis in stable trochanteric fractures: a comparative study between Gotfried percutaneous compression plate and Gamma 3 intramedullary nail. Arch Orthop Trauma Surg. 2009;129(10):1401-1407.
[25] 苏琦,杨新征,周敏,等.锁定钢板治疗股骨粗隆下骨折的临床分析[J].实用骨科杂志,2012,18(10):943-945.
[26] 李辉,彭阿钦.老年股骨转子间骨折术后隐性失血的分析[J].河北医药,2013,35(10):1505-1506.
[27] Guyver PM, McCarthv MJ, Jain NP, et al. The short-tenn functional and radiological outcome of palienls treated with the synthes proximal femoral nail antirutation (PFNA) for unstable pmximal femoral fractures. Eur J Orthop Surg Traumatol. 2011;21(7): 493-501.
[28] 杨晓建.PFN-A治疗老年骨质疏松性股骨粗隆间骨折82例[J].中国老年学杂志,2012,32(19):4431-4432.
[29] Bailey O, Ferguson K, Crawfurd E, et al. No clinical difference between fixed- and mobile-bearing cruciate-retaining total knee arthroplasty: a prospective randomized study. Knee Surg Sports Traumatol Arthrosc. 2015;23(6):1653-1659.
[30] Ulivi M, Orlandini L, Meroni V, et al. Survivorship at minimum 10-year follow-up of a rotating-platform, mobile-bearing, posterior-stabilised total knee arthroplasty. Knee Surg Sports Traumatol Arthrosc. 2015;23(6):1669-1675.
[31] LaCour MT, Sharma A, Carr CB, et al. Confirmation of long-term in vivo bearing mobility in eight rotating-platform TKAs. Clin Orthop Relat Res. 2014; 472(9):2766-2773.
