Construction of Lenke3 type adult idiopathic scoliosis finite element model and thoracic screw guide target 3D model

doi:10.3969/j.issn.2095-4344.2015.53.012

Abstract

Abstract:

BACKGROUND: Studies have shown that posterior orthopedic internal fixation and anterior orthopedic internal fixation all can get good clinical outcomes for treatment of adult idiopathic scoliosis, however, it has not been reported on what kind of methods could achieve a better clinical outcome for treatment of Lenke3 type adult idiopathic scoliosis, have less risk of pedicle screws breakage and more reliable long-term efficacy.

OBJECTIVE: To establish the Lenke 3 type adult idiopathic scoliosis finite element model and thoracic screw guide target 3D model using finite element analysis software, so as to provide scientific basis for biomechanical analysis and scientific pedicle screw implantation.

METHODS:The CT scan image from T₁ to sacrum of one 28 years old volunteer with Lenke 3 type adult idiopathic scoliosis was imported into Mimics 16.0 software by Dicom form. Integral idiopathic scoliosis three dimensional model was established by geometry clear technology. Nail guide target of thoracic vertebra was established on vertebral model by design module in Mimics 16.0 software. The point cloud form of three dimensional model was imported into Geomagic Studio 11.0 software. Series of image processing of model were conducted. At last, three dimensional model was imported into ANSYS 14.0 finite element analysis software in order to build finite element model with biological properties.

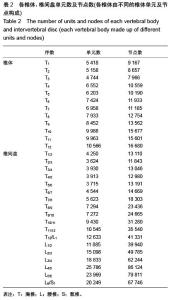

RESULTS AND CONCLUSION: Complete Lenke 3 type adult idiopathic scoliosis three dimensional finite element model was established successfully. It concluded 440 975 tetrahedron units and 580 bar units, totally 441 555 units and 1 077 318 nodes. Totally 12 nail guide target models of thoracic vertebra were established, including 4 682 tetrahedron units and 7 390 nodes. Lenke 3 type adult idiopathic scoliosis three dimensional finite element model and nail guide target of thoracic vertebral model with a realistic appearance were established successfully in this experiment. These results confirm that Lenke 3 type adult idiopathic scoliosis three dimensional finite element model provides scientific basis for further biomechanical experiments. Meanwhile, the construction of nail guide target model of thoracic vertebra provide a new scientific method for thoracic pedicle screw placement.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

CLC Number:

R318

Xin Da-qi, Huo Hong-jun, Hu Zhen-ming, Yang Xue-jun, Xing Wen-hua, Zhao Yan, Han Di. Construction of Lenke3 type adult idiopathic scoliosis finite element model and thoracic screw guide target 3D model[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(53): 8597-8602.

Figures/Tables 1

References

[1] 方秀统,李明,赵颖川,等.成人特发性脊柱侧凸手术疗效的分析[J].中国矫形外科杂志,2010,18(3):208-211.

[2] Kim YJ, lenke LG, Kim J, et al. Comparative analysis of pedicle screw versus hybrid instrumentation in posterior spinal fusion of adolescent idiopathic scoliosis. Spine. 2006; 31(3):291-298.

[3] Carr AJ. Adolescent idiopathic scoliosis in identical twins. Bone Joint Surg (Br). 1990;72(6):1077.

[4] Giampietro PF, Blank RD. Synteny-defined candidate genes for congenital and idiopathic scoliosis. AM J Med Genet. 1999; 83(3):164-177.

[5] Qiu XS, Tang NL, Yeung HY, et al. Synteny-defined candidate genes for congenital and idiopathic scoliosis. Clin Orthop Relat Res. 2007;462:53-58.

[6] Stokes IA, Laible JP. Three-dimensional osseo-ligamentous model of the thorax representing initiation of scoliosis by a symmeric growth. Biomech. 1990;23:589-595.

[7] Azegami H, Murachi S, Kitoh L, et al. Etiology of idiopathic scoliosis computational study. Clin Orthop Related Res. 1998;(357):229-236.

[8] Huynh AM, Aubin CE, Rajwani T, et al. Pedicle growth asymmetry as a cause of adolescent idiopathic scoliosis:a biomechanical study. Eur Spine. 2007,16(4):523-529.

[9] 张兴,邱勇,朱锋,等.两种矫形方法治疗成人特发性脊柱侧凸的疗效比较[J].中国脊柱脊髓杂志,2012,(3):201-205.

[10] 范建平,王传锋,朱晓东,等.Ponte截骨治疗成人特发性脊柱侧凸疗效分析[J].临床骨科杂志, 2013,(2):121-124.

[11] Lenke LG, Betz RR. Adolescent idioparthic scoliosis:a new classification to determine extent of spinalarthrodesis. Bone J Surg (Am). 2001;83:1169-1181.

[12] 黄盛佳,霍洪军,杨学军,等.PUMCIId1型青少年特发性脊柱侧凸三维有限元模型的建立[J].中国组织上程研究,2014,18(26): 4219-4223.

[13] Goel VK, Monroe BT, Gilbertson LG, et al. lnterlaminar shear stresses and laminae separation in a disc. Finite elementanalysis of the L3-L4 motion segment subjected to axial compressive loads. Spine (Phila Pa 1976). 1995;20(6): 689-698.

[14] Kim HJ, Chun HJ, Kang KT, et aL. A validated finite elementanalysis of nerve root stress in degenerative lumbar scoliosis. Med Biol Eng Comput. 2009;47(6):599-605.

[15] Nie WZ, Ye M, Liu ZD, et al. The patient-specific brace design and biomechanical analysis of adolescent idiopathic scoliosis. Biomech Eng. 2009;131(4):41-47.

[16] Chen CS, Cheng CK, Liu CL, et al. Stress analysis of the disc adjacent to interbody fusion in lumbar spine. Med Eng Phys. 2001;23(7):483-491.

[17] Fagan MJ, Julian S, Mohsen AM. Finite element analysis in spine research. Proc Inst Mech Eng H. 2002;16(5):281-298.

[18] Rybicki Z, Jung M, Michajlik A. Acid-base balance and blood gases changes and "lactate excess" in acute respiratory alkalosis during general anaesthesia. Anaesth Resusc Intensive Ther. 1976;4(3):167-173.

[19] Andriacchi TP, Schultz AB, Belytschko TB, et al. Milwaukee brace correction of idiopathic scoliosis.A biomechanical analysis and a restrospective study. Bone Joint Surg Am. 1976;58(6):806-815.

[20] Viviani GR, Ghista DN, Lozada PJ, et al. Biomechanical analysis and simulation of scoliosis surgical correction. Clin Orthop Relat Res. 1986(208):40-47.

[21] Zhang H, Hu X, Wang Y, et al. Use of finite element analysis of a Lenke type 5 adolescent idiopath c scoliosis case to assess possible surgical outcomes. Comput Aided Surg. 2013;18(3-4):84-92.

[22] 刘少华,张宏其,吴建煌,等.半脊椎所致先天性脊柱侧凸三维有限元模型的建立[J].中国现代医学杂志,2013,23(28):33-37.

[23] Salmingo RA, Tadano S, Fujisaki K, et al.Relationship of forces acting on implant rods and degree of scoliosis correction. Clin Biomech (Bristol, Avon). 2013;28(2):122-128.

[24] Little JP, Izatt M, Labrom RD, et al. An FE investigation simulating intra-operative corrective forces applied to correct scoliosis deformity.Scoliosis. 2013;8(1):9.

[25] 唐绍锋,姚女兆,夏曦,等.统一解剖标志徒手胸椎椎弓根置钉技术的初步应用[J].中国临床解剖学杂志,2015,(5):588-592.

[26] Fennell VS, Palejwala S, Skoch J, et al. Freehand thoracic pedicle screw technique using a uniform entry point and sagittal trajectory for all levels: preliminary clinical experience. J Neurosurg Spine. 2014;21(5):778-784.

[27] Kim YJ, Lenke LG, Bridwell KH, et al. Free hand pedicle screw placement in the thoracic spine: is it safe? Spine. 2004; 29(3):333-342.

[28] Wang T, Tang CX, Yang GJ, et al. Comparison of accuracy of pedicle screw placement in the thoracic spine using funnel technique and free hand technique. Zhongguo gu shang. 2009; 22(8):593-595.

[29] Hyun SJ, Kim YJ, Cheh G, et al. Free hand pedicle screw placement in the thoracic spine without any radiographic guidance: technical note, a cadaveric study. J Korean Neurosurg Soc. 2012;51(1):66-70.

[30] Allam Y, Silbermann J, Riese F, et al. Computer tomography assessment of pedicle screw placement in thoracic spine: comparison between free hand and a generic 3D-based navigation techniques. Eur Spine J. 2013;22(3):648-653.
