Relationship of bone cement injection volume with the stress of osteoporotic compression fractured and adjacent vertebrae

doi:10.3969/j.issn.2095-4344.2015.52.001

Abstract

Abstract:

BACKGROUND: Vertebroplasty and kyphoplasty can effectively repair osteoporotic vertebral compression fractures, but postoperative change of stress in the fractured vertebrae and adjacent vertebrae can lead to new fractures.
OBJECTIVE: To analyze the stress changes of the fractured and adjacent vertebrae with different bone cement injection volume by three-dimensional finite element method.
METHODS: One healthy adult male volunteer was selected for lumbar spine CT scan. The acquired images were

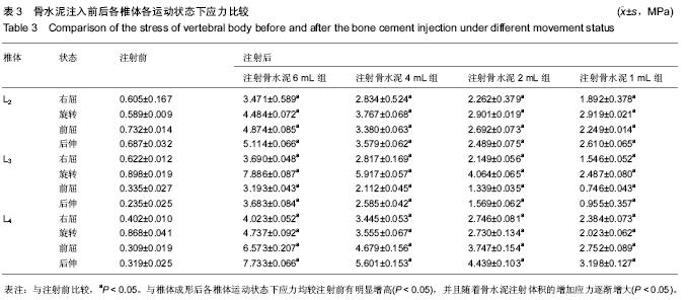

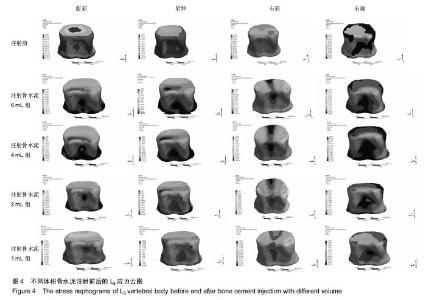

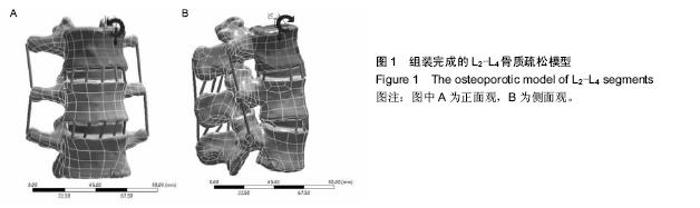

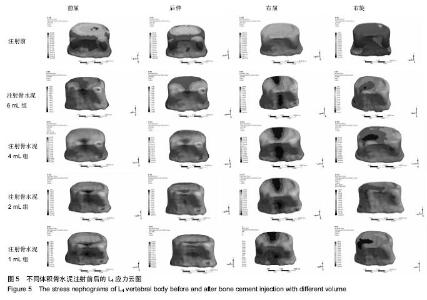

imported for three-dimensional reconstruction using Mimics. The three-dimensional model was smoothed, polished and denoised by Geomagic software, and then the solid mode was built under Workbench Ansys. The osteoporotic vertebral compression fracture model in L2-L4 segments was established after assignment. Bone cement of 1, 2, 4, 6 mL was injected into the L3 vertebrae respectively and distributed in the middle of the vertebrae as spherical shape. 500 N pre-load was applied on L2 surface with an additional moment of 50 N•m. The lower surface free degree of L4 was restrainted. The L2-L4 forward flexion, extension, right flexion and axial rotation on the right side were stimulated to compare the stress changes of fractured vertebrae and adjacent vertebrae before and after the bone cement injection with different volume.
RESULTS AND CONCLUSION: The stresses of fractured and adjacent vertebrae after the bone cement injection were significantly increased; meanwhile, the stresses of fractured and adjacent vertebrae increased with the increase of bone cement injection volume, which may be one of the factors leading to the compression fractures of adjacent vertebrae.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

CLC Number:

R318

Bao Yong-zheng, Zhu Zhou-xing, Feng Yun-sheng, Wu Qiang, Hu Kong-he, He Xiao-long. Relationship of bone cement injection volume with the stress of osteoporotic compression fractured and adjacent vertebrae[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(52): 8365-8372.

Figures/Tables 4

References

[1] 严伟洪,仇胥斌,杨惠林,等.胸腰段骨质疏松三维有限元模型的建立及临床应用[J].吉林医学,2011,2(32):1053-1056.

[2] Belytschko T, Kulak RF, Schuhz AB, et al. Finite element stress analysis of an intervertebral disc. Biomechanics. 1974; 7(3): 277-285.

[3] Can KD, Grimm MJ, Yang KH. Load sharing within a human lumbar vertebral body using the finite element method. Spine. 2001;26(12): 253-260.

[4] Bleiler C, Wagner A, Stadelmann VA, et al. Multiphasic modelling of bone-cement injection into vertebral cancellous bone. Int J Numer Method Biomed Eng. 2015; 31(1):e02696.

[5] Matsuura Y, Giambini H, Ogawa Y, et al. Specimen-specific nonlinear finite element modeling to predict vertebrae fracture loads after vertebroplasty. Spine (Phila Pa 1976). 2014;39(22): E1291-1296.

[6] Cho AR, Cho SB, Lee JH, et al. Effect of Augmentation Material Stiffness on Adjacent Vertebrae after Osteoporotic Vertebroplasty Using Finite Element Analysis with Different Loading Methods. Pain Physician. 2015;18(6):E1101-1110.

[7] Imai K. Computed tomography-based finite element analysis to assess fracture risk and osteoporosis treatment. World J Exp Med. 2015;5(3):182-187.

[8] Giambini H, Qin X, Dragomir-Daescu D, et al. Specimen-specific vertebral fracture modeling: a feasibility study using the extended finite element method. Med Biol Eng Comput. 2015.

[9] Imai K. Analysis of vertebral bone strength, fracture pattern, and fracture location: a validation study using a computed tomography-based nonlinear finite element analysi. Aging Dis. 2015;6(3):180-187.

[10] Clouthier AL, Hosseini HS, Maquer G, et al. Finite element analysis predicts experimental failure patterns in vertebral bodies loaded via intervertebral discs up to large deformation. Med Eng Phys. 2015;37(6):599-604.

[11] Liebl H, Garcia EG, Holzner F, et al. In-vivo assessment of femoral bone strength using Finite Element Analysis (FEA) based on routine MDCT imaging: a preliminary study on patients with vertebral fractures. PLoS One. 2015;10(2): e0116907.

[12] Liang D, Ye LQ, Jiang XB, et al. Biomechanical effects of cement distribution in the fractured area on osteoporotic vertebral compression fractures: a three-dimensional finite element analysis. J Surg Res. 2015;195(1):246-256.

[13] Amjadi Kashani MR, Nikkhoo M, Khalaf K, et al. An in silico parametric model of vertebrae trabecular bone based on density and microstructural parameters to assess risk of fracture in osteoporosis. Proc Inst Mech Eng H. 2014;228 (12):1281-1295.

[14] Okamoto Y, Murakami H, Demura S, et al. The effect of kyphotic deformity because of vertebral fracture: a finite element analysis of a 10° and 20° wedge-shaped vertebral fracture model. Spine J. 2015;15(4):713-720.

[15] Tanigawa N, Kariya S, Komemushi A, et al. Percutaneous vertebroplasty for osteoporotic compression fractures: long-term evaluation of the technical and clinical outcomes. AJR Am J Roentgenol. 2011;196(6):1415-1418.

[16] Trout AT, Kallmes DF, Kaufmann TJ. New fractures after vertebroplasty: adjacent fractures occur significantly sooner. AJNR. 2006;27:217-223.

[17] Rohlmann A, Zander T, Bergmann G. Spinal loads after Osteoporosis vertebral fractures treated by vertebroplasty or kyphoplasty. Eur Spine J. 2006;15(8):1255-1264.

[18] Rotter R, Pflugmacher R, Kandziora F, et al. Biomechanical in vitro testing of human Osteoporosis lumbar vertebrae following prophylactic kyphoplasty with different candidate materials. Spine (Phila Pa 1976). 2007;32(13):1400-1405.

[19] Aquarius R, Homminga J, Verdonschot N, et al. The fracture risk of adjacent vertebrae is increased by the changed loading direction after a wedge fracture. Spine (Phila Pa 1976). 2011; 36(6):408-412.

[20] 赵云芳,滕范文,香淑媚. PVP术后对邻近节段椎体生物力学影响的有限元分析[J]. 齐齐哈尔医学院学报,2015,32(20):2980- 2981.

[21] 卢昌怀,刘志军,张宏波,等.骨水泥量及分布对椎体成形术后相邻椎体生物力学影响的三维有限元分析[J].中国骨质疏松杂志, 2015,21(1):29-33.

[22] Yan L, Chang Z, Xu Z,et al .Biomechanical effects of bone cement volume on the endplates of augmented vertebral body: a three-dimensional finite element analysis. Chin Med J (Engl). 2014;127(1):79-84.

[23] Fei Q, Li QJ, Li D, et al. Biomechanical effect on adjacent vertebra after percutaneous kyphoplasty with cement leakage into disc: a finite element analysis of thoracolumbar osteoporotic vertebral compression fracture. Zhonghua Yi Xue Za Zhi. 2011;91(1):51-55.

[24] Liebschner MA, Rosenberg WS, Keaveny TM. Effects of bone bone cement volume and distribution on vertebral stiffness after vertebroplasty. Spine (Phila Pa 1976). 2001;26(14): 1547-1554.

[25] Martin?i? D, Brojan M, Kosel F, et al. Minimum cement volume for vertebroplasty. Int Orthop. 2015;39(4):727-733.

[26] Kallmes DF, Jensen ME. Percutaneous vertebroplasty. Radiology. 2003;229(1):27-36.

[27] 李勇,刘宗智,刘军,等. 小剂量骨水泥经皮椎体后凸成形术治疗骨质疏松性椎体压缩骨折[J]. 脊柱外科杂志,2015,13(4): 211-214.

[28] 程才,王路,李书奎. 经皮椎体成形术中注入不同剂量骨水泥治疗骨质疏松性椎体压缩骨折的对比研究[J]. 中国骨与关节损伤杂志,2013,28(5):460-461.

[29] 王延涛,孔畅,凌云,等.单侧椎弓根入路小剂量骨水泥注射治疗骨质疏松性椎体压缩骨折的临床研究[J]. 颈腰痛杂志,2014,35(6): 447-450.

[30] 郜顺兴,王芳芳,田伟荣,等.改良小剂量骨水泥椎体成形术治疗中老年胸腰椎病理性骨折150例[J]. 中国医药导报,2015,12(3): 33-36.

[31] 吕振木,王秋生,冯亚高,等.小剂量骨水泥PVP治疗多节段椎体压缩性骨折[J]. 中国骨与关节杂志,2013,12(2):80-83.

[32] 王路,李凌霞,程才,等.应用低剂量骨水泥注入治疗骨质疏松性压缩骨折的临床研究[J]. 重庆医学,2014,43(2):188-190.

[33] 费昊东,谢跃,季峰,等.小剂量骨水泥注射在经皮椎体成形术治疗骨质疏松椎体骨折中的应用[J]. 南通大学学报(医学版),2014, 34(4):335-336.

[34] 洪海潮,刘翔,曾明广,等.小剂量骨水泥椎体成形术治疗骨质疏松伴椎体压缩性骨折的疗效观察[J].广东医学院学报,2013,31(4): 424-425.

[35] 吕振木,杨中华,崔青,等.小剂量骨水泥椎体成形术治疗骨质疏松伴椎体压缩性骨折[J].中国矫形外科杂志,2010,17(12): 1043-1044.

[36] 包拥政,莫世赞,胡孔和,等.骨折时间对椎体成形术后骨水泥在椎体内弥散的影响[J].广东医学,2015,36(6):890-893.

[37] 吴强,包拥政,莫世赞,等.高粘度与低粘度骨水泥椎体成形术治疗OVCFs的疗效观察[J].国际医药卫生导报,2015,21(1) : 29 -31,34.
