Innova 3D-guided percutaneous vertebraplasty puncture reduces bone cement breakage

doi:10.3969/j.issn.2095-4344.2015.16.003

Abstract

Abstract:

BACKGROUND: Percutaneous vertebraplasty is a new means for the treatment of vertebral compression fractures and bone metastases. The multiplaner reconstruction with digital substraction angiography (DSA)-Innova 3D plays an important role in guiding the percutaneous vertebraplasty puncture, which can effectively prevent the leakage of bone cement.
OBJECTIVE: To explore the value of DSA-Innova 3D in the guidance of puncture of percutaneous vertebroplasty.
METHODS: From March 2014 to September 2014, a total of 72 patients with 94 vertebras were selected for percutaneous vertebraplasty, of whom 36 (48 vertebras) with Innova 3D (experimentalgroup) and 36 (46 vertebras) without Innova 3D (control group). Spiral CT scan was performed in all patients to assess the distribution of bone cement. The imaging quality in the two groups was compared by Mann-Whitney U test.
RESULTS AND CONCLUSION: CT showed bone cement leakage occurred in 7 of the 36 patients in the control group. Leakages were into the lumber disc in two cases, paravertebral space in two cases, vertebral pedicle in one case or veins in two cases. However, only one case of bone cement leakage was observed in the experimental group. With the guidance of DSA-Innova 3D, the experimental group had signficantly lower leakage and fluoroscopic time than the control group (P < 0.05). The multiplaner reconstruction with DSA-Innova 3D plays an important role in guiding the percutaneous vertebraplasty puncture, thereby effectively reducing the leakage of bone cement.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

全文链接：

Key words: Vertebraplasty, Angiography, Digital Subtraction, Imaging Processing, Computer-Assisted

CLC Number:

R318

Li Song-hua, Yang Kai, Shen Yu-lan, Tian Qing-hua, Wu Chun-gen. Innova 3D-guided percutaneous vertebraplasty puncture reduces bone cement breakage[J]. Chinese Journal of Tissue Engineering Research, 2015, 19(16): 2473-2478.

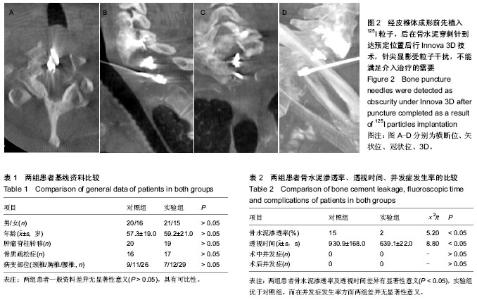

Figures/Tables 2

References

[1] 王纯,陈健,王修,等.3D-CT经皮穿刺椎体成形术治疗椎体转移瘤中的应用[J].实用临床医药杂志,2014,18(21):49.
[2] Polascik TJ. Bisphosphonates in oncology: evidence for the prevention of skeletal events in patients with bone metastases. Drug Des Devel Ther. 2009;3(1):27.
[3] SachsDC, Inamasu J, Mendel EE, et al. Transoral vertebroplasty for renal cell metastasis involing the axis.Spine. 2006;31(24):E925-928.
[4] Chew C,O’Dwyer PJ, Edwards R. Health service cost associated with percutaneous vertebroplasty in patients with spinal metastases. Clin Radiol. 2013;4(12):103-107.
[5] 张辉,刘林,骆文远,等.椎体硬化成型和切除术治疗脊柱转移瘤的临床疗效对比分析[J]. 中华肿瘤防治杂志,2013,20(5): 374-376.
[6] Cakmels V,Vallee JN,Rose M,et al.Osteoblastic and mixed spinal metastases:evaluation of the analgesic efficacy of percutaneous vertebroplasty. AJNR. 2007;28(3):570-574.
[7] 罗志军,倪红联,陈庆.经皮椎体成形术治疗溶骨性椎体转移瘤临床探讨[J].实用肿瘤学杂志,2009,24(1):72-74.
[8] Salapura V,Jeromel M.Minimally invasive (percutaneous)treatment of metastatic spinal and extraspinal disease-review. Acta Clin Croat. 2014;53(1):44-54.
[9] Kallmes DF,Jensen ME.Percutaneous vertebroplast. Radiology. 2003;229(1):27-36.
[10] Wang Z,Zhen Y,Wu C,et al.CT fluoroscopy-guided percutaneous osteoplasty for the treatment of osteolytic lung cancer bone metastases to the spine and pelvis. J Vasc Interv Radiol. 2012;23(9):1135-1142.
[11] Yang Z,Tan J,Zhao R,et al. Clinical in vestigations on the spinal osteoblastic metastasis treated by combination of percutaneous vertebroplasty and 125I seeds implantation versus radiotherapy. Cancer Biother Radiopharm. 2013;28(1): 58-64.
[12] 何强,肖亦明,朱纯生,等.旋转DSA三维及软组织断层重建成像在经皮椎体成形术的临床应用[J].中国医科大学学报,2011,40(4)：382-383.
[13] Llanos RA,Viana-Tejedor A,Abella HR,et al.Pulmonary and intracardiac cement embolism after a percutaneous vertebroplasty. Clin Res Cardiol. 2013;102(5):395-397.
[14] 陈亮,程昀,邓忠良,等.经皮穿刺椎体成形术治疗骨质疏松性骨折骨不愈合的临床研究[J].重庆医科大学学报,2014,5(1): 169-172.
[15] Masala S,Magrini A ,Taglieri A.Chronic obstructive pulmonary disease (COPD) patients with osteoporotic vertebral compression fractures (OVCFs): improvement of pulmonary function after percutaneous vertebroplasty(VTP). Eur Radiol. 2014;24(7):1577-1585.
[16] 李岳勇,陆建勋,张倬彬,等.DSA导向经皮椎体成形术治疗椎体转移瘤87例疗效分析[J].中华肿瘤防治杂志,2015,22(2):143-147.
[17] 刘伟,郑君涛,马原,等.不同容量骨水泥用于经皮穿刺椎体成形术的疗效评价[J].中国矫形外科杂志,2011,19(16):1394-1395.
[18] John M. Percutaneous Vertebroplasty: Complication Avoidance and Technique Optimization. Am J Neuroradiol. 2003;24(8):1697-1706.
[19] Cotton A, Dewatre F, Cortet B, et al. Percutaneous vertebroplasty For osteolytic metastases and myeloma:effects of the percentage of Lesion filling and the leakage of methylmethacrylate at clinical followup .Radiology. 1996;200 (823):525-530.
[20] Jang JS, Lee SH, Jung SK. Pulmonary embolism of polymethylmethacrylate after percutaneous vertebroplasty:a report of three cases .Spine. 2002;27(19):416-418.
[21] Scroop R, Eskridge J, Britz GW. Paradoxical cerebral arterial Embolization of cement during intraoperative vertebroplasty: case report. AJNR Am J Neuroradiol. 2002; 23(5):868-870.
[22] Hostin R, Carr J, Gupta MC, et al. Importance of the peridural membranein percutaneous vertebroplasty. J Spinal Disord Tech. 2005; 18(1):34-39.
[23] Lee BJ,Lee SR,Yoo TY. Paraplegia as a complication of percutaneous vertebroplasty with polymethylmethacrylate: acasereport. Spine. 2002;27(19):419-422.
[24] Martin JB, Jean B, Sugiu K, et al.Vertbroplasy: clinical experience and follow-upresults. Bone. 1999;25 (2):115-155.
[25] Ryu KS, Park CK, Kim MC, et al. Dose-dependent epidural leakage of polymethylmethacrylate after percutaneous vertebroplasty in Patientswith osteporotic vertebralcompression fractures. J Neurosurg. 2002;96(1):56-61.
[26] Heran NS, Song JK, Namba K, et al. The utility of Dyna CT in neuroendovascular procedures. AJNR. 2006;27(2):330-332.
[27] 顾一峰,吴春根,程永德,等.旋转DSA 的软组织断层重建技术在经皮椎体成形术后并发症诊断中的价值[J].介入放射学杂志, 2006,9(15): 547-551.
[28] Gangi A, Kastler BA, Dietemann JL. Percutaneous vertebroplasty guidedby a combination of CT and fluoroscopy. AJNR. 1994;15(1):83-86.
[29] Eichler K, Zangos S, Mack MG, et al. Combination of percutaneous osteosynthesis and vertebroplasty of thoracolumbar split fractures underCT and fluoroscopy guidance: a new technique.Skeletal Radiol. 2014;43(4): 493-498.
[30] Amoretti N, Lesbats V, Marcy PY, et al. Dual guidance (CT and fluoroscopy) vertebroplasty: radiation dose to radiologists. How much and where? Skeletal Radiol. 2010; 39(12): 1229-1235.
[31] Amoretti N, Lesbats-Jacquot V, Marcy PY, et al. Vertebroplasty and kyphoplasty under dual guidance (CT and fluoroscopy): radiation dose to radiologist. A comparative study. J Neuroradiol. 2011;38(3):135-140.
[32] Bollen L,van der Linden YM,Pondaag W, et al. Prognostic factors associated with survival in patients with symptomatic spinal bone metastases:a retrospective cohort study of 1,043 patients. Neuro Oncol. 2014;16(7):991-998.
