Gelatin methacryloyl hydrogel loaded with injectable platelet-rich fibrin promotes skin wound repair

doi:10.12307/2025.588

Abstract

Abstract: BACKGROUND: Currently, gelatin methacryloyl and its composite materials are widely used in the field of skin wound repair, but single-function dressings only provide some passive protection and lack functions such as killing bacteria or regulating endogenous factors to promote skin wound healing. Injectable platelet-rich fibrin contains high concentrations of cytokines, which can promote skin wound healing.
OBJECTIVE: To observe the effect of gelatin methacryloyl hydrogel loaded with injectable platelet-rich fibrin on skin wound healing.

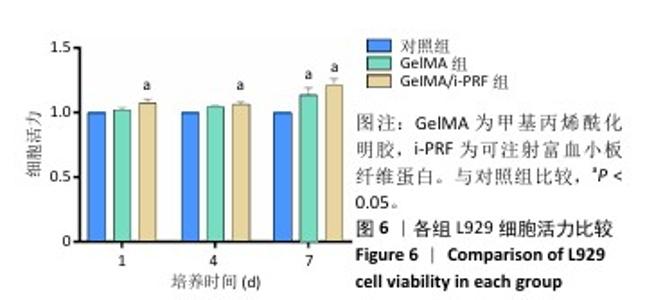

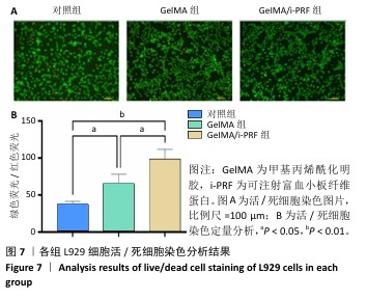

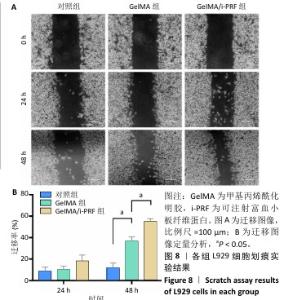

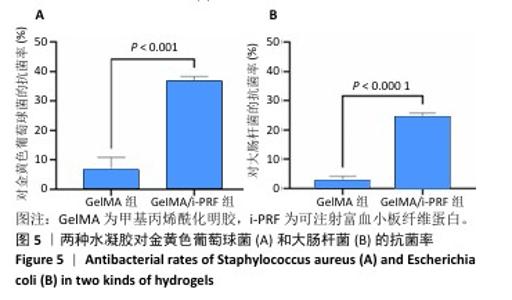

METHODS: (1) Injectable platelet-rich fibrin was isolated and extracted from rat venous blood. Gelatin methacryloyl/injectable platelet-rich fibrin hydrogel (denoted as GelMA/i-PRF hydrogel) was prepared by mixing equal volumes of gelatin methacryloyl and injectable platelet-rich fibrin. At the same time, pure gelatin methacryloyl hydrogel (denoted as GelMA hydrogel) was prepared. The morphology, swelling and degradation properties of the hydrogel were characterized. Staphylococcus aureus (or Escherichia coli) were inoculated on the surface of GelMA hydrogel and GelMA/i-PRF hydrogel to detect the antibacterial properties of the hydrogel. L929 cells were inoculated on the surface of the two hydrogels. The cell proliferation, viability, and migration ability were detected by CCK-8 assay, live/dead cell staining, and scratch test. (2) A full-thickness skin defect with a diameter of 10 mm was made on the back of 9 SD rats. They were randomly divided into three groups for intervention. The control group was injected with PBS at the defect site, and the other two groups were injected with GelMA hydrogel and GelMA/i-PRF hydrogel at the defect site, respectively. The wound healing was observed within 11 days after surgery. The samples were taken for hematoxylin-eosin and Sirius red staining 11 days later.

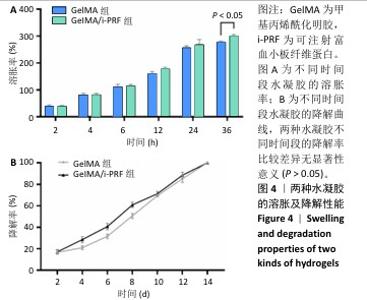

RESULTS AND CONCLUSION: (1) GelMA/i-PRF hydrogel had a good pore structure with an average pore size of (111.4±10.4) µm. The surface roughness and swelling rate were greater than those of GelMA hydrogel, and the degradation performance was not significantly different from that of GelMA hydrogel. Compared with GelMA/hydrogel, GelMA/i-PRF hydrogel had stronger antibacterial ability, could promote L929 cell proliferation, and improve cell viability and migration ability. (2) Compared with GelMA/hydrogel, GelMA/i-PRF hydrogel can promote the healing of rat skin wounds and improve the quality of skin wound healing. (3) Gelatin methacryloyl/injectable platelet-rich fibrin hydrogel can accelerate the healing of skin wounds by promoting the proliferation and migration of skin fibroblasts, and improve the quality of skin wound healing.

Key words: composite hydrogel, injectable platelet-rich fibrin, gelatin methacryloyl, wound dressing, skin tissue engineering, engineered skin material

CLC Number:

Wei Dongdong, Shi Meikun, Wang Lei. Gelatin methacryloyl hydrogel loaded with injectable platelet-rich fibrin promotes skin wound repair[J]. Chinese Journal of Tissue Engineering Research, 2026, 30(14): 3643-3651.

Figures/Tables 12
