Reliability and validity of My Jump 2 application to measure lower limb vertical stiffness of college students

doi:10.12307/2023.850

Abstract

Abstract: BACKGROUND: Confirming the reliability and validity of the My jump 2 application for measuring lower limb vertical stiffness may offer the possibility of it as an alternative to the Kistler three-dimensional force platform for measuring lower limb stiffness.
OBJECTIVE: To verify the reliability and validity of the My Jump 2 application in measuring lower limb vertical stiffness of college students.

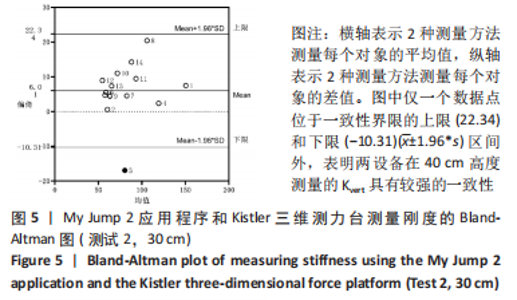

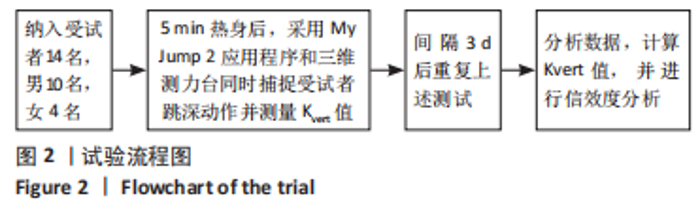

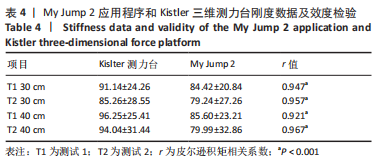

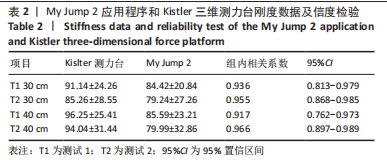

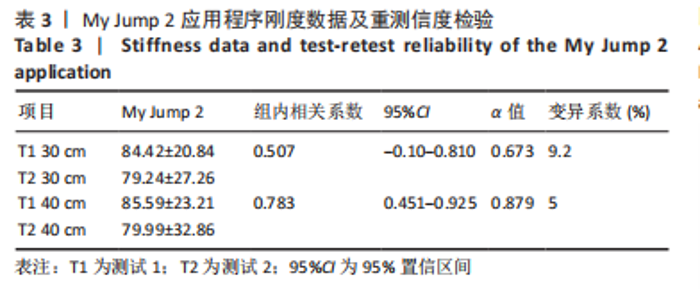

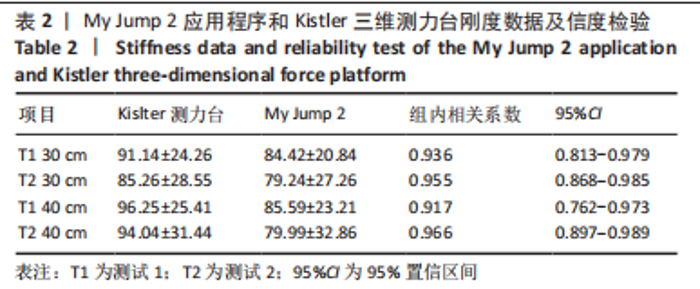

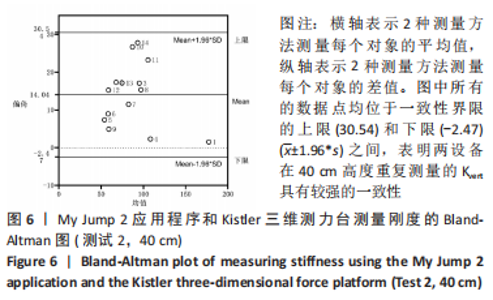

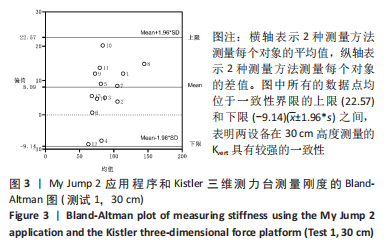

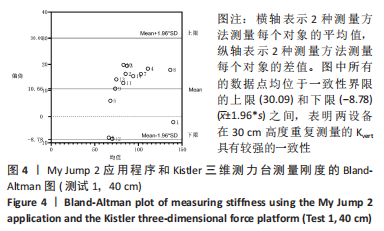

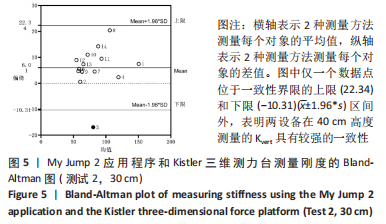

METHODS: The drop jump data of the participants were collected through the Kistler three-dimensional force platform and the My Jump 2 application, and the vertical stiffness of the participants’ lower limb vertical stiffness was calculated. The intraclass correlation coefficient was used to analyze the data measured by the My Jump 2 application and the Kistler three-dimensional force platform, attempting to verify the reliability of the My Jump 2 application. The bias and average between the two devices were drawn into a Bland-Altman diagram to verify the consistency between the two test methods. Finally, the test-retest reliability of the My Jump 2 applications at 30 cm and 40 cm was analyzed using the Cronbach’s alpha (α) and coefficient of variation. Pearson product-moment correlation was used to analyze the correlation of My Jump 2 applications.
RESULTS AND CONCLUSION: My Jump 2 application has high reliability and validity when measuring the vertical stiffness of the lower limb. At the same time, due to its advantages of low cost, convenient portability and field testing for large samples, it can be used as an alternative to the Kistler three-dimensional force platform to test the vertical stiffness of the lower limb in college students and similar populations.

Key words: lower limb stiffness, reliability, validity, drop jump

CLC Number:

Song Weijun, Mao Xinyu, Chen Chao, Wang Zhihai, Qu Kaiyuan, Yang Mingming, Wang Dan. Reliability and validity of My Jump 2 application to measure lower limb vertical stiffness of college students[J]. Chinese Journal of Tissue Engineering Research, 2024, 28(2): 172-176.

Figures/Tables 9

References

[1] BUTLER RJ, CROWELL HP, DAVIS MC. Lower extremity stiffness: implications for performance and injury. Clin Biomech. 2003;18(6):511-517.
[2] PRUYN EC, WATSFORD M, MURPHY A. The relationship between lower-body stiffness and dynamic performance. Appl Physiol Nutr Metab, 2014;39(10):1144-1150.
[3] LATASH ML, ZATSIORSKY VM. Joint stiffness: Myth or reality? Human Movement Sci. 1993;12(6):653-692.
[4] MALONEY SJ, FLETCHER IM. Lower limb stiffness testing in athletic performance: a critical review lower limb stiffness testing in athletic performance: a critical review. Sports Biomech. 2021;20(1):109-130.
[5] CHELLY SM, DENIS C. Leg power and hopping stiffness: relationship with sprint running performance. Med Sci Sports Exerc. 2001;33(2):326.
[6] SHIH YO, TENG HL, POWERS CM. Lower Extremity Stiffness Predicts Ground Reaction Force Loading Rate in Heel Strike Runners. Med Sci Sports Exerc. 2019; 51(8):1692-1697.
[7] MAQUIRRIAIN J. Leg stiffness changes in athletes with Achilles tendinopathy. Int J Sports Med. 2012;33(7):567-571.
[8] FLANAGAN EP, GALVIN L, HARRISON AJ. Force production and reactive strength capabilities after anterior cruciate ligament reconstruction. J Athl Train. 2008; 43(3):249-257.
[9] MALONEY SJ, RICHARDS J, NIXON DG, et al. Do stiffness and asymmetries predict change of direction performance? J Sports Sci. 2017;35(6):547-556.
[10] ARAMPATZIS A, SCHADE F, WALSH M, et al. Influence of leg stiffness and its effect on myodynamic jumping performance. J Electromyogr Kinesiol. 2001;11(5):355-364.
[11] KUITUNEN S, OGISO K, KOMI PV. Leg and joint stiffness in human hopping. Scand J Med Sci Sports. 2011;21(6):e159-e167.
[12] ARAMPATZIS A, BRÜGGEMANN GP, KLAPSING GM. Leg stiffness and mechanical energetic processes during jumping on a sprung surface. Med Sci Sports Exerc. 2001;33(6):923-931.
[13] BRAZIER J, MALONEY S, BISHOP C, et al. Lower Extremity Stiffness: Considerations for Testing, Performance Enhancement, and Injury Risk. J Strength Cond Res. 2019;33(4):1156-1166.
[14] WATSFORD ML, MURPHY AJ, MCLACHLAN KA, et al. A prospective study of the relationship between lower body stiffness and hamstring injury in professional Australian rules footballers. Am J Sports Med. 2010;38(10):2058-2064.
[15] DRILLER M, TAVARES F, MCMASTER T, et al. Assessing a smartphone application to measure countermovement jumps in recreational athletes. Int J Sports Sci Coaching, 2017.
[16] BOGATAJ Š, PAJEK M, HADŽIĆ V, et al. Validity, Reliability, and Usefulness of My Jump 2 App for Measuring Vertical Jump in Primary School Children. Int J Environ Res Public Health. 2020;17(10):3708.
[17] STANTON R, WINTOUR SA, KEAN CO. Validity and intra-rater reliability of My Jump app on iPhone 6s in jump performance. J Sci Med Sport. 2016: S144024401630216X. 10.1016/j.
[18] HAYNES T, BISHOP C, ANTROBUS M, et al. The validity and reliability of the my jump 2 app for measuring the reactive strength index and drop jump performance. J Sports Med Phys Fitness. 2018;59(2):253-258.
[19] YINGLING VR, CA STRO DA, DUONG JT, et al. The reliability of vertical jump tests between the Vertec and My Jump phone application. Peer J. 2018; 6: e4669.
[20] MALONEY SJ, RICHARDS J, NIXON DGD, et al. Do stiffness and asymmetries predict change of direction performance? J Sports Scie. 2016;35(6):1-10.
[21] KÖNIG M, HEMMERS S, EPRO G, et al. Matching Participants for Triceps Surae Muscle Strength and Tendon Stiffness Does Not Eliminate Age-Related Differences in Mechanical Power Output During Jumping. Front Physiol. 2018;9:1345.
[22] 孙晓乐,夏锐,张希妮,等. 疲劳干预对拉长-缩短周期动作中下肢生物力学的影响[J]. 中国运动医学杂志,2018,37(1):19-27.
[23] 井兰香, 刘宇. 篮球运动员8周负重超等长训练后下肢及髋、膝、踝关节动力学和刚度变化[J]. 中国运动医学杂志,2010,29(4):417-429.
[24] 苏荣海, 李少杰, 徐茂洲. 下肢刚度模型的测量与应用[J]. 山东体育学院学报,2019,35(4):90-96.
[25] TKK A, MYLB B. A Guideline of Selecting and Reporting Intraclass Correlation Coefficients for Reliability Research. J Chiropr Med. 2016;15(2):155-163.
[26] PETERSON RA. Meta-analysis of Cronbach’s Coefficient Alpha | Journal of Consumer Research | Oxford Academic. J Consumer Res. 1994;21(2):381-391.
[27] CORMACK SJ, NEWTON RU, MCGUIGAN MR, et al. Reliability of measures obtained during single and repeated countermovement jumps. Int J Sports Physiol Perform. 2008;3(2):131-144.
[28] CASAMICHANA D, CASTELLANO J, CALLEJA-GONZALEZ J, et al. Relationship Between Indicators of Training Load in Soccer Players. Strength Cond Res. 2013; 27(2):369-374.
[29] BLAND JM, ALTMAN DG. Statistical methods for assessing agreement between two methods of clinical measurement. Lancet. 1986;1(8476):307-310.
[30] CHOUKOU MA, LAFFAYE G, TAIAR R. Reliability and validity of an accele-rometric system for assessing vertical jumping performance. Biol Sport. 2014;(1):55-62.
[31] ROGERS SA, HASSMÉN P, HUNTER A, et al. The Validity and Reliability of the MyJump2 Application to Assess Vertical Jumps in Trained Junior Athletes. Measure Phys Educ Exerc Sci. 2018;23(1):69-77.
[32] BUČAR M, ČUK I, PAJEK J, et al. Reliability and validity of judging in women’s artistic gymnastics at University Games 2009. Eur J Sport Sci. 2012;12(3):207-215.
