Orthopedic robot-assisted cortical bone trajectory screw internal fixation for the treatment of lumbar degenerative diseases

doi:10.12307/2022.590

Abstract

Abstract: BACKGROUND: Traditional pedicle screw has the risk of screw loosening in osteoporotic lumbar spine internal fixation, and cortical bone trajectory screw fixation can increase the holding power of screws, which can improve the accuracy of screw placement and reduce radiation injury with the assistance of orthopedic robots.
OBJECTIVE: To compare the accuracy and safety of robot-assisted and manual cortical bone trajectory screw fixation in the treatment of lumbar degenerative diseases with osteoporosis.

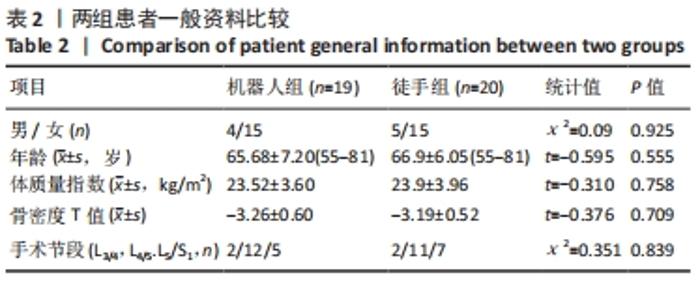

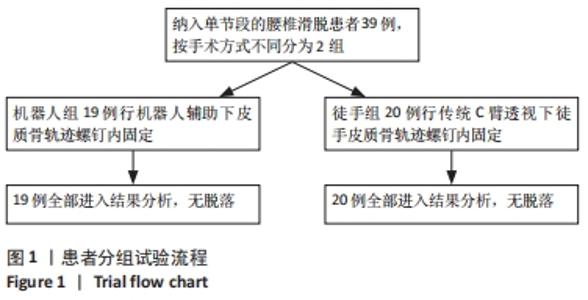

METHODS: The clinical data of 39 patients with lumbar spine diseases and osteoporosis admitted from January 2018 to April 2020 were retrospectively analyzed. According to the different operation methods, the patients were divided into a robot group (n=19) and a manual group (n=20). The data of operation time, fluoroscopy frequency, fluoroscopy dose, intraoperative blood loss, incision length, hospitalization costs, and accuracy of screw placement were collected. Japanese Orthopedic Association scores were also used to compare preoperative and postoperative lumbar nerve function. This study protocol was approved by the Medical Ethics Committee of Sichuan Provincial People’s Hospital (approval No. 2019[298]).

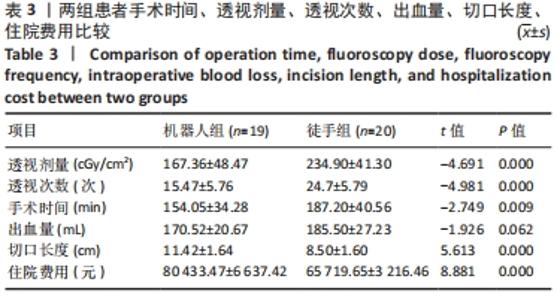

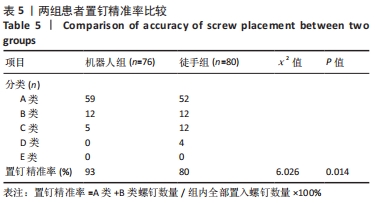

RESULTS AND CONCLUSION: Compared with the manual group, the operation time was shorter, and intraoperative fluoroscopy frequency and fluoroscopy dose were significantly lower in the robot group (P < 0.05). The robot group had significantly longer incision length and higher hospitalization cost than the manual group (both P < 0.05). There was no significant difference between the two groups of patients in intraoperative blood loss and Japanese Orthopedic Association scores before, 3 months and 6 months after operation (P > 0.05). Accuracy of screw placement was 93% (71/76) in the robot group and 80% (64/80) in the manual group, and there was a significant difference between the two groups (P=0.014). To conclude, robot-assisted screw placement can reduce operation time, fluoroscopy frequency, fluoroscopy dose and increase accuracy of placement, compared with manual cortical bone trajectory screw fixation.

Key words: robot, cortical bone trajectory screw, lumbar degenerative disease, accuracy, fluoroscopy dose

CLC Number:

Lin Shu, Hu Jiang, Wan Lun, Tang Liuyi, Wang Yue, Yu Yang. Orthopedic robot-assisted cortical bone trajectory screw internal fixation for the treatment of lumbar degenerative diseases[J]. Chinese Journal of Tissue Engineering Research, 2022, 26(15): 2356-2360.

Figures/Tables 7

References

[1] 刘博,谷元,王鹏,等.椎体后凸成形术治疗580例老年性骨质疏松性椎体压缩性骨折疗效的影响因素分析[J].中国骨质疏松杂志, 2019,25(10):1469-1473.
[2] REXITI P, AIERKEN G, WANG S, et al. Anatomical research on strength of screw track fixation in novel cortical bone trajectory for osteoporosis lumbar spine. Am J Transl Res. 2019;11(11):6850-6859.
[3] SANTONI BG, HYNES RA, MCGILVRAY KC, et al. Cortical bone trajectory for lumbar pedicle screws. Spine J. 2009;9(5):366-373.
[4] DELGADO-FERNANDEZ J, GARCIA-PALLERO MA, BLASCO G, et al. Review of cortical bone trajectory: evidence of a new technique. Asian Spine J. 2017;11(5):817-831.
[5] LI HM, ZHANG RJ, GAO H, et al. Biomechanical fixation properties of the cortical bone trajectory in the osteoporotic lumbar spine. World Neurosurg. 2018;119:e717-e727.
[6] HUANG M, TETREAULT TA, VAISHNAV A, et al. The current state of navigation in robotic spine surgery. Ann Transl Med. 2021;9(1):86.
[7] 林书,胡豇,万仑,等.骨科机器人辅助经皮椎体后凸成形治疗多节段脊柱转移瘤[J].中国组织工程研究,2020,24(33):5249-5254.
[8] 林书,胡豇,万仑,等.机器人与透视辅助经皮椎弓根螺钉置入的比较[J].中国矫形外科杂志,2020,28(20):1830-1834.
[9] GERTZBEIN SD, ROBBINS SE. Accuracy of pedicular screw placement in vivo. Spine (Phila Pa 1976). 1990;15(1):11-14.
[10] WEISER L, HUBER G, SELLENSCHLOH K, et al.Insufficient stability of pedicle screws in osteoporotic vertebrae: biomechanical correlation of bone mineral density and pedicle screw fixation strength. Eur Spine J. 2017;26(11):2891-2897.
[11] WU ZX, GONG FT, LIU L, et al. A comparative study on screw loosening in osteoporotic lumbar spine fusion between expandable and conventional pedicle screws. Arch Orthop Trauma Surg. 2012;132(4): 471-476.
[12] GAO H, ZHANG R, JIA C, et al. Novel Placement of Cortical Bone Trajectory Screws in the Lumbar Spine: A Radiographic and Cadaveric Study. Clin Spine Surg. 2018;31(6):E329-E336.
[13] SKINNER R, MAYBEE J, TRANSFELDT E, et al. Experimental pullout testing and comparison of variables in transpedicular screw fixation. A biomechanical study. Spine (Phila Pa 1976). 1990;15(3):195-201.
[14] ZHOU X, MENG X, ZHU H, et al.Early versus late percutaneous kyphoplasty for treating osteoporotic vertebral compression fracture:A retrospective study. Clin Neurol Neurosurg. 2019;180:101-105.
[15] 任航宁,居来提·买提肉孜,帕尔哈提·热西提,等.皮质骨轨迹椎弓根系统拔出力下腰椎的有限元分析[J].中国组织工程研究, 2021,25(36):5771-5776.
[16] MATSUKAWA K, YATO Y, KATO T, et al. In vivo analysis of insertional torque during pedicle screwing using cortical bone trajectory technique. Spine ( Phila Pa 1976). 2014;39(4):E240-245.
[17] MATSUKAWA K, YATO Y, IMABAYASHI H, et al．Biomechanical evaluation of lumbar pedicle screws in spondylolytic vertebrae: comparison of fixation strength between the traditional trajectory and a cortical bone trajectory. J Neurosurg Spine: 2016;24(6):910-915.
[18] 付荣华,耿晓鹏,付国勇,等.椎弓根皮质骨通道与常规通道螺钉治疗骨质疏松性腰椎疾病[J].中国矫形外科杂志,2020,28(5):405-409.
[19] LE X, TIAN W, SHI Z, et al. Robot-assisted versus fluoroscopy-assisted cortical bone trajectory screw instrumentation in lumbar spinal surgery: a matched-cohort comparison. World Neurosurg. 2018;120: e745-e751.
[20] MATSUKAWA K, KAITO T, ABE Y. Accuracy of cortical bone trajectory screw placement using patient-specific template guide system.Neurosurg Rev. 2020;43(4):1135-1142.
[21] 林书,胡豇,万仑,等.“天玑”骨科机器人辅助下经皮椎弓根螺钉植钉安全性评价[J].中国修复重建外科杂志,2021,35(7):813-817.
[22] MECHLENBURG I, DAUGAARD H, SØBALLE K. Radiation exposure to the orthopaedic surgeon during periacetabular osteotomy. Int Orthop. 2009;33:1747-1751.
[23] CHIANG HW, LIU YL, CHEN TR, et al. Scattered radiation doses absorbed by technicians at different distances from X-ray exposure: experiments on prosthesis. Biomed Mater Eng. 2015;26(suppl 1):S1641-S1650.
[24] KERIC N, EUM DJ, AFGHANYAR F, et al. Evaluation of surgical strategy of conventional vs percutaneous robot-assisted spinal transpedicular instrumentation in spondylodiscitis. J Robot Surg. 2017;11:17-25.
[25] ZHANG Q, XU YF, TIAN W, et al. Comparison of Superior-Level Facet Joint Violations Between Robot-Assisted Percutaneous Pedicle Screw Placement and Conventional Open Fluoroscopic-Guided Pedicle Screw Placement. Orthop Surg. 2019;11(5):850-856.
[26] FENG S, TIAN W, SUN Y, et al. Effect of Robot-Assisted Surgery on Lumbar Pedicle Screw Internal Fixation in Patients with Osteoporosis.World Neurosurg. 2019;125:e1057-e1062.
[27] HAN X, TIAN W, LIU Y, et al. Safety and accuracy of robot-assisted versus fluoroscopy-assisted pedicle screw insertion in thoracolumbar spinal surgery:a prospective randomized controlled trial. J Neurosurg Spine. 2019;8:1- 8.
[28] YANG JS, HE B, TIAN F, et al. Accuracy of Robot-Assisted Percutaneous Pedicle Screw Placement for Treatment of Lumbar Spondylolisthesis: A Comparative Cohort Study. Med Sci Monit. 2019;25:2479-2487.
