Thoracolumbar pedicle anatomy in Han and Uygur male population in Xinjiang Uygur Autonomous Region: a computed tomography-based morphometric study

doi:10.3969/j.issn.2095-4344.2017.15.019

Abstract

Abstract:

BACKGROUND: Thoracolumbar segments (T₁₁-L₂) prone to damage due to its special anatomical and biomechanical characteristics. Therefore, fully understanding the shape of pedicle of vertebral arch and finding the visible, constant, and the point of insertion of the pedicle axis is very important to the safety of pedicle screw placement.

OBJECTIVE: To measure the surgically relevant parameters of thoracolumbar pedicles between Han and Uygur males using computed tomography (CT) scan to provide some anatomic reference data for pedicle screw fixation.

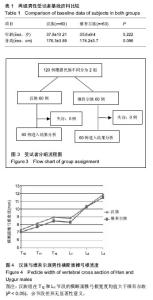

METHODS: The vertebral bodies and pedicles of adult males were scanned (60 cases of Han people and 60 cases of Uygur people) from T₁₀-L₃ with CT. The parameters were processed by three-dimensional reconstruction. Transverse pedicle width, pedicle axis length, transverse pedicle angle, and sagittal pedicle angle were measured by using length and angle measurement tool of browser in bone-window CT images. The age and stature information were recorded. All the data above were processed by SPSS 13.0 software.

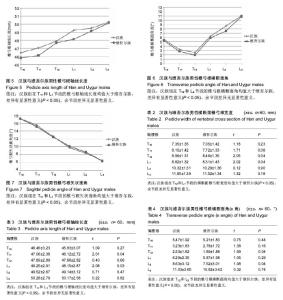

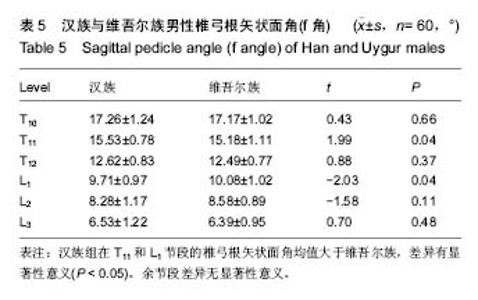

RESULTS AND CONCLUSION: (1) The mean transverse pedicle width of T₁₂ and L₁ in Han was bigger than that in the Uygur. (2) The mean transverse pedicle angle of T₁₂ and L₂ in Han was bigger than that in the Uygur. (3) The mean pedicle axis length and sagittal pedicle angle of T₁₁ and L₁ in Han were bigger than that in the Uygur (P < 0.05). (4) There were some differences among some parameters of the thoracolumbar pedicles between the Han and Uygur people. Data from any study only can be used as a guide for pedicle screw fixation. Preoperative CT evaluation may provide an individualized strategy to reduce the incidence of postoperative complications caused by misplacement.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Thoracolumbar, Pedicle, Anatomy, Han Uigur, CT

CLC Number:

R318

Yang Xiao-kai, Liu Shuai, Li Lei, Huang Wei-min, Zhang Yu-kun, Bi Jin-kun, Zhou Gang. Thoracolumbar pedicle anatomy in Han and Uygur male population in Xinjiang Uygur Autonomous Region: a computed tomography-based morphometric study [J]. Chinese Journal of Tissue Engineering Research, 2017, 21(15): 2400-2405.

Figures/Tables 3

References

[1] Watanabe K, Matsumoto M, Tsuji T, et al. Ball tip technique for thoracic pedicle screw placement in patients with adolescent idiopathic scoliosis. J Neurosurg Spine. 2010;13(2): 246-252.

[2] 陈克冰,刘少喻,李浩淼,等.球形探针技术在椎弓根螺钉置钉术中的应用[J].中华骨科杂志,2011,31(12):1314-1318.

[3] Lee GY, Massicotte EM, Rampersaud YR.Clinical accu-racy of cervicothoracic pedicle screw placement: a comparison of the“open”lamino-foraminotomy and computer-assisted techniques.J Spinal Disord Tech.2007;20(1): 25-32.

[4] Lonner BS,Auerbach JD,Estreicher MB,et al.Thoracic pedicle screw instrumentation: the learning curve and evolution in technique in the treatment of adolescent idiopathic scoliosis. Spine.2009;34(20): 2158-2164.

[5] Kim YJ, Lenke LG, Bridwell KH, et al. Free-hand pedicle screw placement in the thoracic spine: is it safe? Spine.2004; 29(3):333-342.

[6] Allam Y, Silbermann J, Riese F, et al. Computer tomography assessment of pedicle screw placement in thoracic spine:comparison between free hand and a generic 3D-based navigation techniques. Eur Spine J.2013;22(3):648-653.

[7] Acharya S, Dorje T, Srivastava A. Lower dorsal and lumbar pedicle morphometry in Indian population: a study of four hundred fifty vertebrae. Spine.2010；35(10): E378-E384.

[8] Abuzayed B, Tutunculer B, Kucukyuruk B, et al. Anatomic basis of anterior and posterior instrumentation of the spine: morphometric study.Surgical and radiologic anatomy.2010；32(1): 75-85.

[9] Wood KB, Li W, Lebl DSJ, et al. Management of thoracolumbar spine fractures[J]. The spine journal: official journal of the North American Spine Society.2014；14(1): 145-164

[10] 曹泽, 严飞, 赵科平,等. 椎弓根螺钉置入内固定法治疗胸腰段骨折脱位的效果分析[J]. 现代生物医学进展, 2016, 16(29):5723-5726.

[11] 侯树勋,史亚民.国人下胸椎及腰椎椎弓根的观测及其临床意义[J].中华骨科杂志, 1994,14(4):22-24.

[12] 杜良杰,李建军. 国人成年男性胸腰椎椎弓根径线和偏角与脊椎节段序数的相关性研究[J]. 中国脊柱脊髓杂志, 2009, 7: 545-549.

[13] 阮狄克, 蔡福金. 经椎弓根内固定的形态与生物力学研究[J]. 中国矫形外科杂志, 2000, 7(6): 562-564.

[14] 胡勇,谢辉,徐荣明,等.青少年脊柱侧凸患者胸椎椎弓根螺钉置入的准确性和安全性评价[J].中国脊柱脊髓杂志, 2006,16(11): 820-824.

[15] Wadhwa RK, Thakur JD, Khan IS, et al. Adjustment of suboptimally placed lumbar pedicle screws decreases pullout strength and alters biomechanics of the construct: a pilot cadaveric study. World Neurosurg.2015;83(3):368-375.

[16] Matsukawa K, Yato Y, Imabayashi H, et al.Biomechanical evaluation of the fixation strength of lumbar pedicle screws using cortical bone trajectory: a finite element study. J Neurosurg Spine. 2015;23(4):471-478.

[17] Calvert GC, Lawrence BD, Abtahi AM, et al. Cortical screws used to rescue failed lumbar pedicle screw construct: a biomechanical analysis.J Neurosurg Spine. 2015;22(2): 166-172.

[18] 李龙付,杨惠林,李关兴,等. 术前CT测量对胸腰惟惟弓根置钉准确性的影响[J]. 中国脊柱脊髓杂志,2008,18(12): 949-950.

[19] Miyawaki S, Tomonari H, Yagi T, et al. Development of a novel spike-like auxiliary skeletal anchorage device to enhance miniscrew stability.Am J OrthodDentofacial Orthop. 2015; 148(2):338-344.

[20] Chen Z, Wu B, Zhai X,et al. Basic study for ultrasound-based navigation for pedicle screw insertion using transmission and backscattered methods.PLoS One. 2015;10(4):e0122392.

[21] Amaritsakul Y, Chao CK, Lin J. Comparison study of the pullout strength of conventional spinal pedicle screws and a novel design in full and backed-out insertions using mechanical tests. Proc Inst Mech Eng H. 2014;228(3): 250-257.

[22] Hicks JM, Singla A, Shen FH, et al. Complications of pedicle screw fixation in scoliosis surgery: a systematic review. Spine. 2010;35(11):E465-470.

[23] Lonstein JE, Denis F, Perra JH,et al. Complications associated with pedicle screws. J Bone J Surg Am. 1999; 81(11):1519-528.

[24] Gautschi OP, Schatlo B, Schaller K, et al. Clinically relevant complications related to pedicle screw placement in thoracolumbar surgery and their management: a literature review of 35,630 pedicle screws. Neurosurg Focus. 2011; 31(4):E8.

[25] Wegener B, Birkenmaier C, Fottner A, et al. Delayed perforation of the aorta by a thoracic pedicle screw. Eur Spine J. 2008;17(Suppl 2):S351-354.

[26] 崔冠宇,田伟,刘波,等. 胸椎安全置入椎弓根螺钉的解剖特点:正常发育与特发性脊柱侧凸青少年比较[J].中国组织工程研究, 2015,19(26):4158-4163.

[27] Valentin GH,Pedersen LN,Maribo T,et al.Wearing an active spinal orthosis improves back extensor strength in women with osteoporotic vertebral fractures. Prosthetics and orthotics international.2014;38(3): 232-238.

[28] Li KC, Yu SW, Li A, et al. Subpedicle decompression and vertebral reconstruction for thoracolumbar magerl incomplete burst fractures via a minimally invasive method. Spine.2014；39(5): 433-442.

[29] Zindrick MR, Wiltse LL, Doornik A, et al. Analysis of the morphometric characteristics of the thoracic and lumbar pedicles.Spine.1987;12(2): 160-166.

[30] Kretzer RM,Chaput C,Sciubba DM,et al.A computed tomography-based morphometric study of thoracic pedicle anatomy in a random United States trauma population.. J Neurosurg Spine. 2011;14(2):235-243.
