Arthroscopic treatment with tension band wire for avulsion fracture of tibial intercondylar eminence

doi:10.3969/j.issn.2095-4344.2014.53.019

Abstract

Abstract:

BACKGROUND: Avulsion fracture of tibial intercondylar eminence, as a fracture of insertion of anterior cruciate ligament, was caused by huge shear stress and angulated movement. The arthroscopic treatment was preferred. There is controversy about the style of fixation: pining or tension band wire under arthroscopy.
OBJECTIVE: To detect the clinical efficacy of arthroscopic treatment with tension band wire for avulsion fracture of tibial intercondylar eminence.

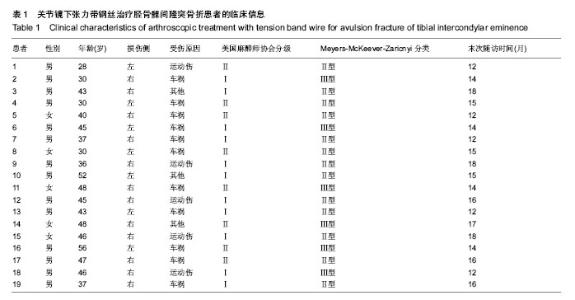

METHODS: From January 2010 to August 2014, 19 patients were treated by arthroscopic treatment with tension band wire in Changzhou TCM Hospital. All patients were followed up at 1, 3, 6, 12 months post-operation. The results of Lanchman test, bone healing time, range of motion, and Lysholm score of knee joint function were recorded at the final follow-up.

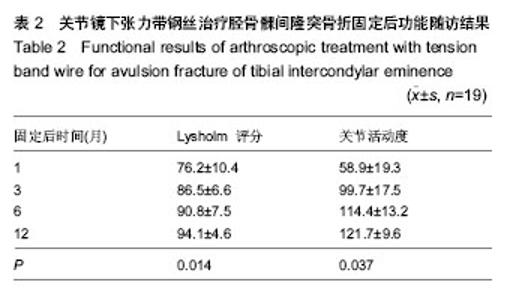

RESULTS AND CONCLUSION: All patients got followed. At the final follow-up, the Lanchman tests were all negative, the bone healing time was 7-11 months (average 8.4±1.9 months), Lysholm score was 94.1±4.6 points, and the range of motion was 121.7±9.6°. Good results were got by arthroscopic treatment with tension band wire for avulsion fracture of tibial intercondylar eminence. Advantages of this method are minimal invasive, good fixation of the anterior cruciate ligament.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

全文链接：

Key words: arthroscope, bone fixation wire, fractures, bone nails

CLC Number:

R318

Peng Li-bo, Zhao Hong, Xie Zi-kang, Wang Bin, Qu Yu-xing. Arthroscopic treatment with tension band wire for avulsion fracture of tibial intercondylar eminence[J]. Chinese Journal of Tissue Engineering Research, 2014, 18(53): 8629-8633.

Figures/Tables 3

References

[1] 仲文军,王恒,阮子平,等.膝关节疾患的关节镜诊断和微创治疗[J].中华全科医学,2011,9(2):209-210.
[2] 冯华,高波,王满宜.胫骨髁间前棘骨折的关节镜治疗[J].中华骨科杂志,2001,21(5):294-296.
[3] Myer DM, Purnell GJ Jr, Caldwell PE 3rd, et al. ORV arthroscopic reduction and internal fixation of tibial eminence fractures. Arthrosc Tech. 2013;2(4):e341-345.
[4] McLennan JG. The role of arthroscopic surgery in the treatment of fractures of the intercondylar eminence of the tibia. J Bone Joint Surg Br. 1982;64(4):477-480.
[5] 蔡显义,徐立路,王贵清,等.关节镜下治疗胫骨髁间隆起撕脱骨折[J].中国矫形外科杂志, 2006,4:76- 77.
[6] Osti L, Merlo F, Liu SH, et al. A simple modified arthroscopic procedure for fixation of displaced tibial eminence fractures. Arthroscopy. 2000;16(4):379-382.
[7] Vega JR, Irribarra LA, Baar AK, et al. Arthroscopic fixation of displaced tibial eminence fractures: a new growth plate-sparing method. Arthroscopy. 2008;24(11):1239-1243.
[8] 郭剑,李方祥,韩明远,等.关节镜下ExtremiFix空心双头加压螺钉治疗成人胫骨髁间隆突骨折[J].中华微创外科杂志,2013, 13(5):444-445.
[9] 蔡俊丰,王予彬,祝建光,等.膝关节前交叉韧带撕脱骨折最佳入路的实验研究[J].中国微创外科杂志,2010,10(5):431-434.
[10] 桂鉴超,王黎明,顾湘杰,等.关节镜下单隧道内缝线法治疗胫骨髁间隆突骨折[J].中华骨科杂志, 2006,26(5):354-357.
[11] 张振东,王维山,董金波,等.空心可吸收螺钉治疗胫骨髁间隆突撕脱骨折临床分析[J].中华全科医学, 2012,10(5):685.
[12] Kluemper CT, Snyder GM, Coats AC, et al. Arthroscopic suture fixation of tibial eminence fractures. Orthopedics. 2013; 36(11):e1401-1406.
[13] Suganuma J, Akutsu S. Arthroscopically assisted treatment of tibial plateau fractures. Arthroscopy. 2004;20(10):1084-1089.
[14] Huang TW, Hsu KY, Cheng CY, et al. Arthroscopic suture fixation of tibial eminence avulsion fractures. Arthroscopy. 2008;24(11):1232-1238.
[15] Lubowitz JH, Elson WS, Guttmann D. Part Ⅱ: arthroscopic treatment of tibial plateau fractures: intercondylar eminence avulsion fractures. Arthroscopy. 2005;21(1):86-92.
[16] Pan RY, Yang JJ, Chang JH, et al. Clinical outcome of arthroscopic fixation of anterior tibial eminence avulsion fractures in skeletally mature patients: a comparison of suture and screw fixation technique. J Trauma Acute Care Surg. 2012;72(2):E88-93.
[17] Reynders P, Reynders K, Broos P. Pediatric and adolescent tibial eminence fractures: arthroscopic cannulated screw fixation. J Trauma. 2002;53(1):49-54.
[18] 朱建国,恽常军,朱小国,等.关节镜下空心拉力螺钉内固定治疗胫骨髁间隆突骨折[J].中国骨与关节损伤杂志, 2010, 25( 2): 179-180.
[19] Kocher MS, Micheli LJ, Gerbino P, et al. Tibial eminence fractures in children: prevalence of meniscal entrapment. Am J Sports Med. 2003;31(3):404-407.
[20] Hapa O, Barber FA, Süner G, et al. Biomechanical comparison of tibial eminence fracture fixation with high-strength suture, EndoButton, and suture anchor. Arthroscopy. 2012;28(5):681-687.
[21] Havlas V, Kautzner J, Tr? T, et al. Arthroscopic technique using crossed K-wires for avulsion fractures of intercondylar eminence in children. Acta Chir Orthop Traumatol Cech. 2011; 78(4):343-347.
[22] 刘云鹏,刘沂.骨与关节损伤和疾病的诊断分类及功能评定标准[M].北京:清华大学出版社,2002:87-88.
[23] 战民庆,牟宇科,宋军川,等.关节镜下前交叉韧带胫骨棘止点撕脱骨折的内固定治疗[J].中国骨与关节损伤杂志, 2007,22(7): 609-610.
[24] Lysholm J, Gillquist J. Evaluation of knee ligament surgery results with special emphasis on use of a scoring scale. Am J Sports Med. 1982;10(3):150-154.
[25] 刘云鹏,杨柳,陈光兴,等.关节镜下胫骨髁间棘骨折的治疗[J].中华创伤骨科杂志, 2006,8(4):330-333.
[26] 赵金忠,蒋垚,沈灏,等.关节镜下8字法缝线固定治疗成人胫骨髁间隆突骨折[J].中国修复重建外科杂志, 2003,17(3):205-208.
[27] 赵金忠,皇甫小桥.关节镜下缝线固定治疗前十字韧带撕脱骨折不愈合[J].中华骨科杂志, 2007,27(3):188-192.
[28] Ando T, Nishihara K. Arthroscopic internal fixation of fractures of the intercondylar eminence of the tibia. Arthroscopy.1996; 12(5):616-622.
[29] 王旭东,曲剑林,李刚,等.关节镜下钢丝固定治疗胫骨髁间嵴撕脱骨折[J].中国微创外科杂志,2010,10(9):807-808.
[30] 王丹,叶光亮,钟建明,等.前交叉韧带胫骨止点撕脱骨折的关节镜下治疗[J].中华创伤杂志,2003,19(7):432-433.
[31] Chen SY, Cheng CY, Chang SS, et al. Arthroscopic suture fixation for avulsion fractures in the tibial attachment of the posterior cruciate ligament. Arthroscopy. 2012;28(10): 1454-1463.
[32] Ahn JH, Lee YS, Lee DH, et al. Arthroscopic physeal sparing all inside repair of the tibial avulsion fracture in the anterior cruciate ligament: technical note. Arch Orthop Trauma Surg. 2008;128(11):1309-1312.
[33] Sawyer GA, Anderson BC, Paller D, et al. Biomechanical analysis of suture bridge fixation for tibial eminence fractures. Arthroscopy. 2012;28(10):1533-1539.
[34] Sang W, Zhu L, Ma J, et al. A comparative study of two methods for treating type III tibial eminence avulsion fracture in adults. Knee Surg Sports Traumatol Arthrosc. 2012;20(8): 1560-1564.
[35] Hunter RE, Willis JA. Arthroscopic fixation of avulsion fractures of the tibial eminence: technique and outcome. Arthroscopy. 2004;20(2):113-121.
[36] Osti M, Benedetto KP. Results of arthroscopically assisted refixation of fractures of the intercondylar eminence. Z Orthop Unfall. 2010;148(3):288-291.
[37] Hirschmann MT, Mayer RR, Kentsch A, et al. Physeal sparing arthroscopic fixation of displaced tibial eminence fractures: a new surgical technique. Knee Surg Sports Traumatol Arthrosc. 2009;17(7):741-747.
