Coflex interspinous process dynamic internal fixation for lumbar degenerative diseases: the recovery of foraminal height and curative effects

doi:10.3969/j.issn.2095-4344.2014.13.017

Abstract

Abstract:

BACKGROUND: Recently, Coflex was widely used in hospital in China for the treatment of lumbar disc herniation and lumbar spinal stenosis, and obtained perfect therapeutic effects.
OBJECTIVE: To discuss the curative effect of treating lumbar degenerative diseases by Coflex interspinal device, and to explore the relationship between foraminal height and the curative effect by comparing the change of foraminal height and the change of lumbar function.
METHODS: Coflex implantation for lumbar disc herniation and lumbar spinal stenosis was performed. The foraminal height and the heights of anterior and posterior borders were investigated. ODI and visual analogue scale before internal fixation, at 1 year after treatment and during follow-up were recorded.
RESULTS AND CONCLUSION: The foraminal height and the heights of anterior and posterior borders were obviously increased after internal fixation. At 1 week after treatment, radiographs exhibited that the foraminal height and intervetebral height were maximal. The foraminal height and the heights of anterior and posterior borders decreased with prolonged follow-up time. At 26.4 months after mean internal fixation, significant
differences in the foraminal height and intervetebral height were detected as compared with pre-fixation. Results of ODI and visual analogue scale demonstrated that patients’ functions were significantly improved at 3 months after treatment, and further improved at about 1 year after fixation. The recovery of lumbar vertebra function was optimal. No significant difference in ODI score was detectable between final follow-up and 1-year fixation. These results suggested that Coflex for lumbar disc herniation and mild and moderate lumbar spinal stenosis obtained ideal therapeutic effects. Its therapeutic effects mainly originate from the intraoperative decompression on dura mater and nerve root. However, Coflex effects on the recovery of foraminal height gradually lost with prolonged follow-up time.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

全文链接：

Key words: lumbar vertebrae, internal fixators, intervertebral disk degeneration, spinal stenosis

CLC Number:

R318

Liang Chang-xiang, Chang Yun-bing, Gu Hong-lin, Liu Bin, Yin Dong, Zheng Xiao-qing, Huang Shuai-hao. Coflex interspinous process dynamic internal fixation for lumbar degenerative diseases: the recovery of foraminal height and curative effects[J]. Chinese Journal of Tissue Engineering Research, 2014, 18(13): 2065-2070.

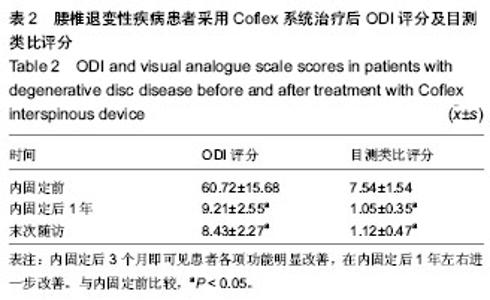

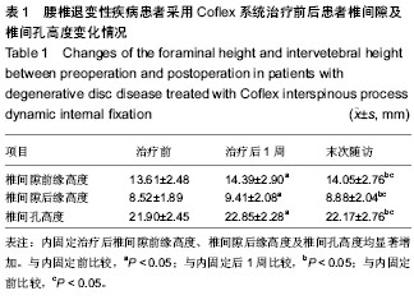

Figures/Tables 3

References

[1] Schoenfeld AJ. Adjacent segment degeneration afterlumbar spinal fusion:risk factors and implications for clinical practice．Spine. 2011;11(1):21-23．

[2] 陈肇辉,付强,王聪,等.腰椎后路单节段融合与非融合固定的对比分析[J].中国矫形外科杂志.2010;18(8):629-632.

[3] 倪文飞,徐华梓,周洋，等.棘突间动态稳定装置Coflex的临床应用及中长期疗效评价[J].中华外科杂志,2012,50(9):776-781.

[4] Richter A, Schütz C, Hauck M, et al. Does an interspinous device (Coflex) improve the outcome of decompressive surgery in lumbar spinal stenosis? One-year follow up of a prospective case control study of 60 patients. Eur Spine J. 2010;19(2):283-289.

[5] Levy RM, Deer TR. Systematic safety review and meta-analysis of procedural experience using percutaneous access to treat symptomatic lumbar spinal stenosis. Pain Med. 2012;13(12):1554-1561.

[6] Kettler A,Drumm J,Heuer F,et al. Can a modified interspinous spacer prevent instability in axial rotation and lateral bending? A biomechanical in vitro study resulting in a new idea. Clin Biomech (Bristol, Avon).2008;23(2):242-247.

[7] Wilke HJ, Drumm J, Häussler K, et al. Biomechanical effect of different lumbar interspinous implants on flexibility and intradiscal pressure.Eur Spine J. 2008;17(8):1049-1056.

[8] Celik H, Derincek A, Koksal I,et al. Surgical treatment of the spinal stenosis with an interspinous distraction device: do we really restore the foraminal height?Turk Neurosurg.2012; 22(1): 50-54.

[9] Monticone M, Baiardi P, Ferrari S, et al. Development of the Italian version of the Oswestry Disability Index (ODI-I): A cross-cultural adaptation, reliability, and validity study.Spine (Phila Pa 1976).2009;34(19):2090-2095.

[10] Weinstein JN, Lurie JD, Tosteson TD, et al. Surgical compared with nonoperative treatment for lumbar degenerative spondylolisthesis. four-year results in the Spine Patient Outcomes Research Trial (SPORT) randomized and observational cohorts. J Bone Joint Surg Am.2009;91(6): 1295-1304.

[11] Davis RJ, Errico TJ, Bae H, et al.Decompression and coflex interlaminar stabilization compared with decompression and instrumented spinal fusion for spinal stenosis and low-grade degenerative spondylolisthesis: two-year results from the prospective, randomized, multicenter, Food and Drug Administration Investigational Device Exemption trial.Spine (Phila Pa 1976).2013;38(18):1529-1539.

[12] Leung JP, Lam TP, Ng BK, et al. Posterior ISOLA segmental spinal system in the treatment of scoliosis.J Pediatr Orthop. 2002;22(3):296-301.

[13] Stoffel M, Behr M, Reinke A,et al.Pedicle screw-based dynamic stabilization of the thoracolumbar spine with the Cosmic-system: a prospective observation.Acta Neurochir (Wien).2010;152(5):835-843.

[14] Christie SD, Song JK, Fessler RG. Dynamic interspinous process technology. Spine (Phila Pa 1976). 2005;30 (16 Suppl): S73-78.

[15] 刘斌,尹东,王巧民,等.腰椎棘突间非融合技术:Coflex™与Wallis临床比较[J].南方医科大学学报,2010,30(11):2455-2458.

[16] Skidmore G, Ackerman SJ, Bergin C,et al.Cost-effectiveness of the X-STOP® interspinous spacer for lumbar spinal stenosis.Spine (Phila Pa 1976). 2011;36(5):E345-356.

[17] Schaeren S, Broger I, Jeanneret B. Minimum four-year follow-up of spinal stenosis with degenerative spondylolisthesis treated with decompression and dynamic stabilization. Spine (Phila Pa 1976).2008;33(18):E636-642.

[18] Kabir SM, Gupta SR, Casey AT.Lumbar interspinous spacers: a systematic review of clinical and biomechanical evidence.Spine (Phila Pa 1976).2010;35(25):E1499-1506.

[19] Richter A, Schütz C, Hauck M, et al.Does an interspinous device (Coflex) improve the outcome of decompressive surgery in lumbar spinal stenosis? One-year follow up of a prospective case control study of 60 patients.Eur Spine J. 2010;19(2):283-289.

[20] Wilke HJ, Drumm J, Haussler K ,et al. Biomechanical effect of different lumbar interspinous implants on flexibility and intradiscal pressure. Eur Spine J. 2008;17(8):1049-1056.

[21] Tsai KJ, Murakami H, Lowery GL, et al.A biomechanical evaluation of an interspinous device (Coflex) used to stabilize the lumbar spine.J Surg Orthop Adv. 2006;15(3):167-172.

[22] Hartmann F, Dietz SO, Kuhn S, et al.Biomechanical comparison of an interspinous device and a rigid stabilization on lumbar adjacent segment range of motion.Acta Chir Orthop Traumatol Cech. 2011;78(5):404-409.

[23] Trautwein FT, Lowery GL, Wharton ND, et al. Determination of the in vivo posterior loading environment of the Coflex interlaminar-interspinous implant.Spine J. 2010;10(3): 244-251.

[24] Putzier M, Schneider SV,et al. The surgical treatment of the lumbar disc prolapse: nucleotomy with additional transpedicular dynamic stabilization versus nucleotomy alone. Spine (Phila Pa 1976).2005;30(5):E109-114.

[25] 徐丁,陈一衡,曾晗冰,等. Coflex棘突间动态固定系统治疗腰椎间盘突出症的短期疗效评价[J]. 中华外科杂志,2009,47(18): 1379-1382.

[26] 余将明,朱云荣,许鹏,等. Coflex内固定术与PLIF术治疗腰椎管狭窄症的疗效对比[J].中国矫形外科杂志,2011,19(11):885-888.

[27] 刘进,刘浩,李光辉,等. Coflex动态固定术治疗腰椎退变性疾病的中期随访[J]. 中华外科杂志,2013,51(2):142-146.

[28] Kong DS, Kim ES, Eoh W. One-year outcome evaluation after interspinous implantation for degenerative spinal stenosis with segmental instability. J Korean Med Sci. 2007;22(2): 330-335.

[29] Kroppenstedt S,Gulde M,Sch(o)nmayr R,et al.Radiological comparison of instrumented posterior lumbar interbody fusion with one or two closed-box plasmapore coated titanium cages followup study over more than seven years. Spine.2008; 33(19): 2083-2088.

[30] Deer TR, Kim CK, Bowman RG 2nd, et al. Study of percutaneous lumbar decompression and treatment algorithm for patients suffering from neurogenic claudication. Pain Physician. 2012;15(6):451-460.

[31] 易红蕾,朱晓东,张伟,等.椎板开窗减压Coflex动态固定治疗中度腰椎管狭窄症的疗效评价[J].中国脊柱脊髓杂志,2010,20(10): 834-838.

[32] 缪烨,杨同其,徐耀增,等. 棘突间植入物Coflex与PLIF术式治疗节段性不稳的腰椎间盘突出症的疗效比较[J].中国当代医药, 2011,18(24):20-21.

[33] Hartmann F, Dietz SO, Hely H,et al. Biomechanical effect of different interspinous devices on lumbar spinal range of motion under preload conditions. Arch Orthop Trauma Surg. 2011;131(7):917-926.

[34] Richolt JA, Rauschmann MA, Schmidt S,et al.Interspinous spacers--technique of Coflex™ implantation.Oper Orthop Traumatol. 2010;22(5-6):536-544.

[35] Davis R, Auerbach JD, Bae H. Can low-grade spondylolisthesis be effectively treated by either coflex interlaminar stabilization or laminectomy and posterior spinal fusion? Two-year clinical and radiographic results from the randomized, prospective, multicenter US investigational device exemption trial. J Neurosurg Spine. 2013;19(2): 174-184.

[36] Khandwekar AP, Patil DP, Khandwekar V, et al. TecoflexTM functionalization by curdlan and its effect on protein adsorption and bacterial and tissue cell adhesion. J Mater Sci Mater Med. 2009;20(5):1115-1129.

[37] Trautwein FT, Lowery GL, Wharton ND,et al.Determination of the in vivo posterior loading environment of the Coflex interlaminar-interspinousimplant.Spine J.2010;10(3):244-251.

[38] Sobottke R, Schluter-Brust K, Kaulhausen T, et al. Interspinous implants (X Stop, Wallis, Diam) for the treatment of LSS: is there a correlation between radiological parameters and clinical outcome. Eur Spine J.2009;18(10):1494-1503.
