Xu Biao, Lu Tan, Jiang Yaqiong, Yin Yujiao

doi:10.12307/2025.127

Abstract

Abstract: BACKGROUND: Currently, numerous experiments delve into the intricate anatomy and biomechanical behavior of distinct segments of the supraspinatus muscle. However, the impact of shoulder joint stress resulting from damage to various regions of this muscle remains a scarcely explored domain. Understanding the repercussions of supraspinatus muscle injuries across different regions on the stress distribution and magnitude of articular cartilage and the glenoid is crucial for providing some theoretical support for clinical diagnosis and treatment.
OBJECTIVE: To ascertain the maximum stress values by simulating different degrees of supraspinatus muscle rupture on the humeral cartilage surface, glenoid lip, and glenoid cartilage joint surface using three-dimensional finite element software.
METHODS: Normal and healthy shoulder joint CT or MRI scans were processed through Mimics and Geomagic to extract molds. Subsequently, models were constructed via Solidworks. Varying degrees of supraspinatus muscle damage were simulated for each model to mimic fractures in different regions. Finally, Ansys, mechanical software, was employed for three-dimensional finite element biomechanical analysis, calculating stress values for the humeral cartilage surface, glenoid lip, and glenoid cartilage joint surface.

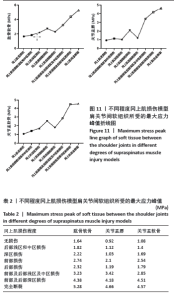

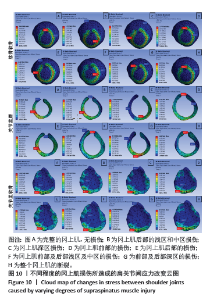

RESULTS AND CONCLUSION: (1) With worsening degrees of supraspinatus muscle injury, the stress on the shoulder joint cartilage surface and glenoid lip escalated. (2) Among various regions, the anterior part of the supraspinatus muscle exhibited paramount significance. (3) While supraspinatus muscle fractures of differing degrees impacted the magnitude of cartilage stress on the glenoid labial surface, the stress distribution remained constant. (4) It is indicated that during the initial stages of horizontal abduction of the shoulder joint, the anterior region assumes a pivotal role, followed by the posterior deep region. Injury to the anterior part of the supraspinatus muscle leads to a significant surge in stress within the shoulder joint’s soft tissue, potentially causing damage to the top of the glenoid lip and the anterior part of the glenoid cartilage.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: supraspinatus, shoulder joint, glenoid, biomechanics, finite element analysis

CLC Number:

Xu Biao, Lu Tan, Jiang Yaqiong, Yin Yujiao. Xu Biao, Lu Tan, Jiang Yaqiong, Yin Yujiao[J]. Chinese Journal of Tissue Engineering Research, 2025, 29(9): 1768-1774.

Figures/Tables 3

References

[1] CHANG RF, LEE CC, LO CM. Quantitative diagnosis of rotator cuff tears based on sonographic pattern recognition. PLoS One. 2019;14(2): e212741.
[2] ENDELL D, CHILD C, FREISLEDERER F, et al. Anatomy and diagnostics of subscapularis tendon lesions. Unfallchirurgie (Heidelb). 2022;125(8): 647-658.
[3] NYFFELER RW, SCHENK N, BISSIG P. Can a simple fall cause a rotator cuff tear? Literature review and biomechanical considerations. Int Orthop. 2021;45(6):1573-1582.
[4] LIU F, DONG J, SHEN WJ, et al. Detecting Rotator Cuff Tears: A Network Meta-analysis of 144 Diagnostic Studies. Orthop J Sports Med. 2020; 8(2):1810947780.
[5] 侯俊成, 王和平, 周海伟, 等. 冈上肌体积重建与定量分析对冈上肌撕裂术后肩关节外展功能的预测价值[J]. 浙江医学,2022,44(9): 935-940.
[6] SAINI G, LAWRENCE RL, STAKER JL, et al. Supraspinatus-to-Glenoid Contact Occurs During Standardized Overhead Reaching Motion. Orthop J Sports Med. 2021;9(10):941641964.
[7] JO CH, WANG PW. Arthroscopic supraspinatus advancement for retracted rotator cuff tears: a technical note. Clin Shoulder Elb. 2022; 25(4):328-333.
[8] 许本柯, 杨运平, 刘洪涛, 等. 冈上肌腱的血供特点及临床意义[J]. 中国临床解剖学杂志,2012,30(1):33-35.
[9] THUNES J, MATTHEW MR, PAL S, et al. The Effect of Size and Location of Tears in the Supraspinatus Tendon on Potential Tear Propagation. J Biomech Eng. 2015;137(8):81012.
[10] KIM SY, BOYNTON EL, RAVICHANDIRAN K, et al. Three-dimensional study of the musculotendinous architecture of supraspinatus and its functional correlations. Clin Anat. 2007;20(6):648-655.
[11] HERMENEGILDO JA, ROBERTS SL, KIM SY. Innervation pattern of the suprascapular nerve within supraspinatus: a three-dimensional computer modeling study. Clin Anat. 2014;27(4):622-630.
[12] YURI T, KUWAHARA Y, FUJII H, et al. Functions of the subregions of the supraspinatus muscle. Clin Anat. 2017;30(3):347-351.
[13] 何仿. 人体肩关节三维有限元模型的建立、验证及在肱骨骨折机制研究方面的应用[D].上海:第二军医大学,2006.
[14] 何仿, 苟三怀, 卜海富. 不同肩关节功能位置上肱骨三维有限元应力分析[J]. 临床骨科杂志,2006,9(6):559-561.
[15] WAKABAYASHI I, ITOI E, SANO H, et al. Mechanical environment of the supraspinatus tendon: a two-dimensional finite element model analysis. J Shoulder Elbow Surg. 2003;12(6):612-617.
[16] WU L. Nonlinear finite element analysis for musculoskeletal biomechanics of medial and lateral plantar longitudinal arch of Virtual Chinese Human after plantar ligamentous structure failures. Clin Biomech (Bristol, Avon). 2007;22(2):221-229.
[17] DUPREY S, BRUYERE K, VERRIEST JP. Human shoulder response to side impacts: a finite element study. Comput Methods Biomech Biomed Engin. 2007;10(5):361-370.
[18] SANO H, YAMASHITA T, WAKABAYASHI I, et al. Stress distribution in the supraspinatus tendon after tendon repair: suture anchors versus transosseous suture fixation. Am J Sports Med. 2007;35(4):542-546.
[19] REMIA LF, RAVALIN RV, LEMLY KS, et al. Biomechanical evaluation of multidirectional glenohumeral instability and repair. Clin Orthop Relat Res. 2003;(416):225-236.
[20] COLLIN P, THOMAZEAU H, WALCH G, et al. Clinical and structural outcome twenty years after repair of isolated supraspinatus tendon tears. J Shoulder Elbow Surg. 2019;28(1):196-202.
[21] ROH MS, WANG VM, APRIL EW, et al. Anterior and posterior musculotendinous anatomy of the supraspinatus. J Shoulder Elbow Surg. 2000;9(5):436-440.
[22] GATES JJ, GILLILAND J, MCGARRY MH, et al. Influence of distinct anatomic subregions of the supraspinatus on humeral rotation. J Orthop Res. 2010;28(1):12-17.
[23] CHARLTON IW, JOHNSON GR. A model for the prediction of the forces at the glenohumeral joint. Proc Inst Mech Eng H. 2006;220(8): 801-812.
[24] DICKERSON CR, CHAFFIN DB, HUGHES RE. A mathematical musculoskeletal shoulder model for proactive ergonomic analysis. Comput Methods Biomech Biomed Engin. 2007;10(6):389-400.
[25] PRINOLD JA, MASJEDI M, JOHNSON GR, et al. Musculoskeletal shoulder models: a technical review and proposals for research foci. Proc Inst Mech Eng H. 2013;227(10):1041-1057.
[26] 邢秋娟, 赵东峰, 戴薇薇, 等. 冈上肌部分损伤对肌腱应力分布影响的有限元分析[J]. 实用骨科杂志,2018,24(6):519-522.
[27] ONATE MM, BUREAU NJ. Supraspinatus Myotendinous Junction Injuries: MRI Findings and Prevalence. AJR Am J Roentgenol. 2019; 212(1):W1-W9.
[28] FAVRE P, SENTELER M, HIPP J, et al. An integrated model of active glenohumeral stability. J Biomech. 2012;45(13):2248-2255.
[29] STENGAARD K, HEJBOL EK, JENSEN PT, et al. Early-stage inflammation changes in supraspinatus muscle after rotator cuff tear. J Shoulder Elbow Surg. 2022;31(7):1344-1356.
[30] MANSKE RC, VOIGHT M, PAGE P, et al. The Application of Musculoskeletal Ultrasound in the Diagnosis of Supraspinatus Injuries. Int J Sports Phys Ther. 2023;18(5):88377.
[31] SEKI N, ITOI E, SHIBUYA Y, et al. Mechanical environment of the supraspinatus tendon: three-dimensional finite element model analysis. J Orthop Sci. 2008;13(4):348-353.
[32] INOUE A, CHOSA E, GOTO K, et al. Nonlinear stress analysis of the supraspinatus tendon using three-dimensional finite element analysis. Knee Surg Sports Traumatol Arthrosc. 2013;21(5): 1151-1157.
