Comparison of knee geometry between Chinese Han people and American Caucasians

doi:10.3969/j.issn.2095-4344.2897

Abstract

Abstract:

BACKGROUND: Some studies have shown that the anterior and posterior diameters and transverse diameters of the proximal tibia of the Chinese knee are smaller than those of the Caucasian in the United States, so there are some differences in the morphology of the knee, so the phenomenon of low matching

degree often occurs when the imported prosthesis system is applied to the Chinese.

OBJECTIVE: To measure the geometric parameters of the distal femur and the proximal tibia of Chinese and American, compare the differences.

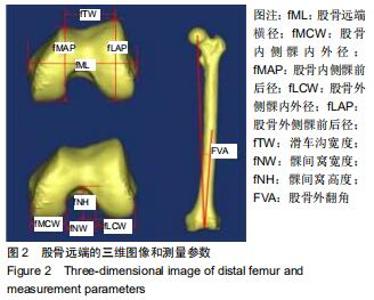

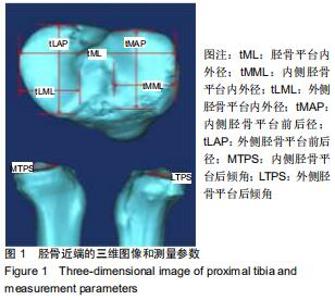

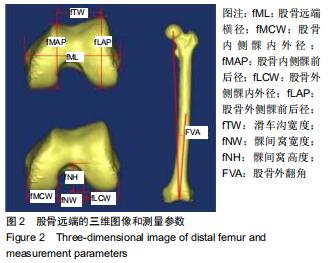

METHODS: The 50 Chinese Han patients planned to undergo anterior cruciate ligament reconstruction in the Department of Orthopedics, Beijing Tsinghua Changgung Hospital and 40 Caucasian patients planned for anterior cruciate ligament reconstruction at the University of Pittsburgh Sports Medicine Center were selected. The knee joints of 90 subjects were scanned by Computed Tomography. Three-dimensional reconstruction was performed by AW Volume Share 5 software. The Geomagic software was used to measure the parameters of the distal femur and proximal tibia.

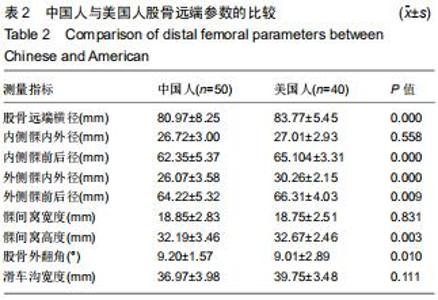

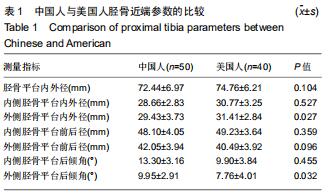

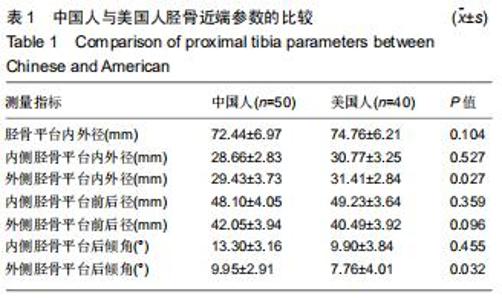

RESULTS AND CONCLUSION: (1) In the measurement parameters of the proximal femur, the inner and outer diameters of the lateral tibial plateau in Chinese were smaller than those of the American (P=0.027), and the posterior inclination of the lateral tibial plateau was greater in Chinese than that of the American (P < 0.05). There was no significant difference in the inner and outer diameters of the tibial plateau, the outer diameter of the medial tibial plateau, the anteroposterior diameter of the medial tibial plateau, the anteroposterior diameter of the lateral tibial plateau, and the posterior inclination angle of the medial tibial plateau between the two groups (P > 0.05). (2) In the measurement parameters of the distal femur, the transverse diameter of the distal femur, the medial and lateral diameters of the lateral condyle, the anteroposterior diameter of the medial condyle, the anteroposterior diameter of the lateral condyle, and the height of the intercondylar fossa were all less in Chinese than those of the American (P < 0.05); the valgus angle of the Chinese femur was greater than that of the American (P < 0.05). There was no significant difference in the inner and outer diameters of the medial condyle, the width of the intercondylar notch and the width of the trochlear groove between the two groups (P > 0.05). (3) There are some differences in many parameters of knee morphology between Chinese and American. It is necessary to design more individualized knee joint prosthesis for Chinese.

Key words: bone, knee, joint, prosthesis, implant, total knee replacement, distal femur, proximal tibia, morphology, measurement

CLC Number:

Gong Heng, Huang Bin, Fu Ligong, Liu Huawei, Chen Lianxu. Comparison of knee geometry between Chinese Han people and American Caucasians[J]. Chinese Journal of Tissue Engineering Research, 2020, 24(33): 5366-5370.

Figures/Tables 4

References

[1] YUE B, VARADARAJAN KM, AI S, et al. Differences of knee anthropometry between Chinese and white men and women. J Arthroplasty.2011;26(1):124-130.

[2] KAWAHARA S, OKAZAKI K, OKAMOTO S, et al. A lateralized anterior flange improves femoral component bone coverage in current total knee prostheses.Knee.2016;23(4):719-724.

[3] ROHILLA S, JAARSMA R, MAINI L, et al. Dimensions of distal femur in terms of total knee arthroplasty among different origins-A systematic review.Journal of Arthroscopy and Joint Surgery.2017;4(1):8-14.

[4] 严广斌.解剖轴与机械轴[J].中华关节外科杂志(电子版),2012, 6(4):653.

[5] WADA M, TATSUO H, BABA H, et al. Femoral intercondylar notch measurements in osteoarthritic knees.Rheumatology (Oxford).1999;38(6):554-558.

[6] CHENG CK, LUNG CY, LEE YM, et al. A new approach of designing the tibial baseplate of total knee prostheses.Clin Biomech(Bristol,Avon).1999:14(2):112-117.

[7] UEHARA K, KADOYA Y, KOBAYASHI A, et al. Anthropometry of the proximal tibia to design a total knee prosthesis for the Japanese population.J Arthroplasty.2002;17(8):1028-1032.

[8] MA QL, LIPMAN JD, CHENG CK, et al. A Comparison Between Chinese and Caucasian 3-Dimensional Bony Morphometry in Presimulated and Postsimulated Osteotomy for Total Knee Arthroplasty.J Arthroplasty.2017;32(9): 2878-2886.

[9] 曲铁兵,曾纪洲,林源,等.华北地区成人正常胫骨内侧平台后倾角的测量及临床意义[J].中华骨科杂志,2003,23(8):10-13.

[10] ERDEM M, GULABI D, CECEN GS, et al. Using fibula as a reference can be beneficial for the tibial component alignment after total knee arthroplasty, a retrospective study.Knee Surg Sports Traumatol Arthrosc.2015;23(7):2068-2073.

[11] IORIO R, BOLLE G, CONTEDUCA F, et al. Accuracy of manual instrumentation of tibial cutting guide in total knee arthroplasty.Knee Surg Sports Traumatol Arthrosc. 2013; 21(10):2296-2300.

[12] STIJAK L, HERZOG RF, SCHAI P. Is there an influence of the tibial slope of the lateral condyle on the ACL lesion? A case-control study.Knee Surg Sports Traumatol Arthrosc. 2008;16(2):112-117.

[13] CHIU KY, ZHANG SD, ZHANG GH. Posterior slope of tibial plateau in Chinese. J Arthroplasty.2000;15(2):224-227.

[14] ZHANG K, HAN Q, WANG H, et al. Measurement of proximal tibial morphology in northeast Chinese population based on three-dimensional reconstruction computer tomography. Medicine (Baltimore).2019;98(45):e17508.

[15] LIU Z, YUAN G, ZHANG W, et al. Anthropometry of the proximal tibia of patients with knee arthritis in Shanghai.J Arthroplasty. 2013;28(5):778-783.

[16] BAUWENS K, MATTHES G, WICH M, et al. Navigated total knee replacement. A meta-analysis. J Bone Joint Surg Am. 2007;89(2):261-269.

[17] 肖建林,刘潼,秦彦国,等.基于CT图像三维重建测量股骨外翻角[J].中国实验诊断学,2011,15(12):2041-2043.

[18] LI P, TSAI TY, LI JS, et al. Morphological measurement of the knee: race and sex effects.Acta Orthop Belg. 2014;80(2): 260-268.

[19] 董纪元,张健,王岩.国人人工膝关节几何外形尺寸的初步探讨[J].中国临床康复,2006,10(8):28-31,193.

[20] MISIR A, YILDIZ KI, KIZKAPAN TB. Wider femoral and mediolaterally narrower tibial components are required for total knee arthroplasty in Turkish patients.Knee Surg Sports Traumatol Arthrosc.2019;27(7):2155-2166.

[21] SEEDHOM BB, LONGTON EB, WRIGHT V, et al. Dimensions of the knee. Radiographic and autopsy study of sizes required by a knee prosthesis.Ann Rheum Dis.1972;31(1):54-58.

[22] SIDLER-MAIER CC, WADDELL JP. Incidence and predisposing factors of periprosthetic proximal femoral fractures: a literature review.International Orthopaedics. 2015; 39(9):1673-1682.

[23] HAFEZ MA, SHEIKHEDREES SM, SAWEERES ES. Anthropometry of Arabian Arthritic Knees: Comparison to Other Ethnic Groups and Implant Dimensions.J Arthroplasty. 2016;31(5):1109-1116.

[24] LOURES FB, DE ARAUJO GOES RF, DA PALMA IM, et al. Anthropometric study of the knee and its correlation with the size of three implants available for arthroplasty.Rev Bras Ortop. 2016;51(3):282-289.
