Metacarpal bone reconstruction plate single-segment fixation in the repair of atlas fracture: biomechanical analysis of in vitro three-dimensional motion

doi:10.3969/j.issn.2095-4344.2016.39.007

Abstract

Abstract:

BACKGROUND: To achieve the stability of the fracture reduction and try to keep the integrity of the cervical vertebra activity, domestic and foreign scholars have carried out the clinical and experimental research on the limited internal fixation of single segment, and achieved good clinical curative effect. There was no obvious discomfort symptoms caused by the instability of the atlantoaxial joint.

OBJECTIVE: To perform biomechanical analysis of fixed atlas fractures by single phase with three-dimensional motion experiment.

METHODS: Six fresh upper cervical spine specimens (C₀-C₅) were used, and made into models of double fracture of the anterior arch of the atlas. Single segment fixation was conducted with metacarpal bone reconstruction plate system simulation. Data of each specimen in intact state, fracture state and internal fixation state were measured. The neutral zones in fracture state, internal fixation state and intact state were compared, and the difference of three-dimensional motion range and intact state were compared.

RESULTS AND CONCLUSION: (1) There was statistically significant difference between the neutral zones and range of motion with those of fracture status and intact status (all P < 0.05). No significant difference was found between the result of fixation status and intact status (all P > 0.05). (2) Results verify that simulation of single-segment fixation of unstable atlas fractures with metacarpal bone reconstruction plate system can obtain good stability, restore the stability of the upper cervical spine, and simultaneously fully avoid adverse effects of fusion.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Cervical Vertebrae, Biomechanics, Internal Fixators, Tissue Engineering

CLC Number:

R318

Li Xiao-feng, Qin Jun-jie, Li Qiang, Yang Yuan. Metacarpal bone reconstruction plate single-segment fixation in the repair of atlas fracture: biomechanical analysis of in vitro three-dimensional motion[J]. Chinese Journal of Tissue Engineering Research, 2016, 20(39): 5819-5824.

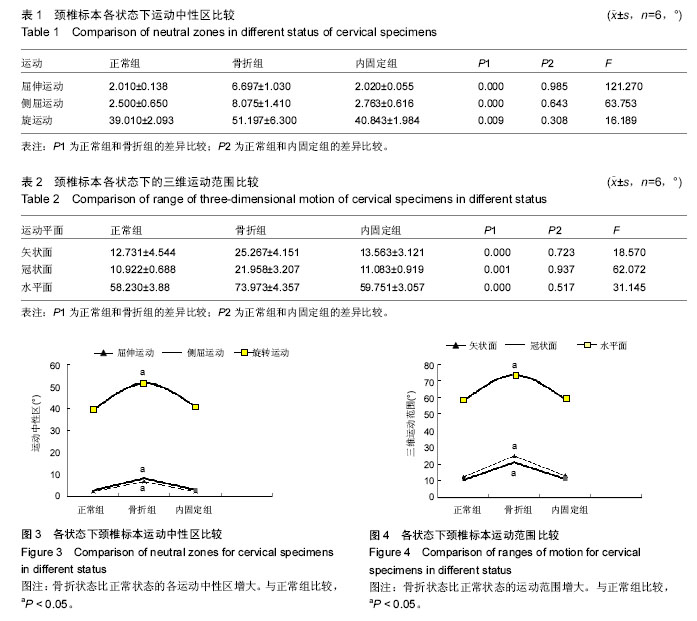

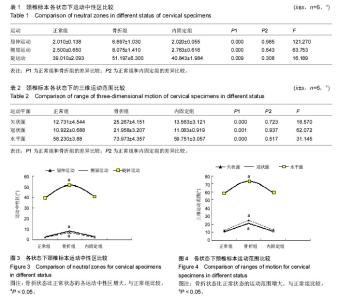

Figures/Tables 1

References

[1] 胡勇,徐荣明,马维虎,等.不稳性寰椎骨折的外科治疗策略[J].中华创伤杂志,2011,27(2):115-120.
[2] Sim HB, Lee JW, Park JT, et al. Biomechanical evaluations of various c1-c2 posterior fixation techniques. Spine. 2011;36(6): E401-407.
[3] Ringel F, Reinke A, Stuer C, et al. Posterior C1-2 fusion with C1 lateral mass and C2 isthmic screws: accuracy of screw position, alignment and patient outcome. Acta Neurochir(Wien). 2012;154(2): 305-312.
[4] Ruf M, Melcher R, Harms J. Transoral reduction and osteosynthesis C1 as a function -preserving option in the treatment of unstable Jefferson fractures. Spine. 2004;29(7):823-827.
[5] Bransford R, Chapman JR, Bellabarba C. Primary internal fixation of unilateral C1 lateral mass sagittal split fractures: a series of 3 cases. J Spinal Disord Tech. 2011;24(3):157-163.
[6] 胡勇,马维虎,顾勇杰,等.经口咽入路内固定治疗不稳定性寰椎骨折临床疗效分析[J] .脊柱外科杂志, 2011, 9(3): 131-134.
[7] 焦云龙,尹庆水. JeRP治疗不稳定型Jefferson骨折的应用解剖及生物力学评价[J].中国临床解剖学杂志, 2009, 27(3):340-343.
[8] Kakarla UK, Chang SW, Theodore N, et al. Atlas fractures. Neurosurgery. 2010;66(3 Suppl): 60-67.
[9] 吴亚俊. 新型腰椎动态内固定系统的生物力学研究[D]. 中国医科大学, 2010.
[10] 焦云龙. JeRP治疗不稳定型Jefferson骨折的相关研究[D].南方医科大学,2009.
[11] Naderi S,Crawford NR,Melton MS,et al. Biomechanical analysis of cranial settling after transoral odontoidectomy. Neurosurg Focus. 1999;6(6):e7.
[12] 王鹏,孟春玲,余新光.等. 寰椎环形结构完整性和继发性颅底陷入关系的有限元分析[J].军医进修学院学报, 2012, 33(11):1167-1170.
[13] 罗杰,许军.寰椎骨折机制的有限元分析[J].临床医学工程, 2014,3(21):286-290.
[14] 韩应超,杨明杰,潘杰,等.单纯寰椎侧块螺钉固定选择性治疗不稳定寰椎骨折的生物力学分析[J].中国脊柱脊髓杂志, 2014,24(1):68-73.
[15] Richter M, Schmidt R, Claes L, et al. Posterior atlantoaxial fixation:biomechanical in vitro comparison of six different techniques. Spine (Phila Pa1976). 2002;27(16):1724-1732.
[16] Panjabi M, Dvorak J, Duranceau J, et al. Three-dimensional movements of the upper cervical spine. Spine. 1988;13(7):726-730.
[17] 钮心刚,贾连顺,丁祖泉,等.翼状韧带断裂对枕颈部稳定性影响的生物力学实验研究[J].中国脊柱脊髓杂志,1998, 8(3): 138-141.
[18] Koller H, Resch H, Tauber M, et al. A biomechanical rationale for C1-ring osteosynthesis as treatment for displaced Jefferson burst fractures with incompetency of the transverse atlantal ligament. Eur Spine J. 2010; 19(8): 1288-1298.
[19] Puttlitz CM, Goel VK, Clark CR, et al. Biomechanical rationale for the pathology of rheumatoid arthritis in the craniovertebral junction. Spine. 2000;25:1607-1616.
[20] 田纪伟,夏天.寰椎横韧带损伤的诊断与治疗[J].中国脊柱脊髓杂志,2013,23(5):393-395.
[21] 吕厚山,译.脊柱内固定学[M].北京:中国医药科技出版社, 2001.
[22] Jin M, Asadoorian M, Hiller LP, et al. Hypertrophy of the anterior arch of the atlas associated with congenital nonunion of the posterior arch: a retrospective case-control study. Spine J. 2014;14(7):1155-1158.
[23] Ma W, Xu N, Hu Y, et al. Unstable atlas fracture treatment by anterior plate C1-ring osteosynthesis using a transoral approach. Eur Spine J. 2013;22(10): 2232-2239.
[24] Wu AM, Wang XY, Chi YL, et al. Management of acute combination atlas-axis fractures with percutaneous triple anterior screw fixation in elderly patients. Orthop Traumatol Surg Res. 2012;98(8):894-899.
[25] Iacoangeli M, Di Rienzo A, Alvaro L, et al. Fully endoscopic endonasal anterior C1 arch reconstruction as a function preserving surgical option for unstable atlas fractures. Acta Neurochir (Wien). 2012;154(10): 1825-1826.
