Finite element analysis of clavicle fracture with superior and anterior plate fixation

doi:10.3969/j.issn.2095-4344.2016.26.016

Abstract

Abstract:

BACKGROUND: Many scholars researched the biomechanics of middle clavicle fracture plate fixation, but little researched the plate position.

OBJECTIVE: To observe the biomechanical characteristics of anterior and superior plates for clavicle fracture with three-dimensional finite element models.

METHODS: Three-dimensional finite element models of clavicle fracture with anterior and superior plates were established. The stress after anterior and superior plate fixation was analyzed. The maximum stress and displacement of plate fixation for clavicular fracture were observed under compression, torsion and three-point bending.

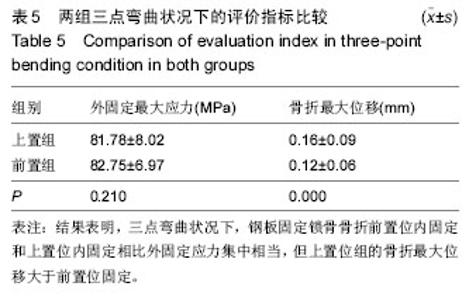

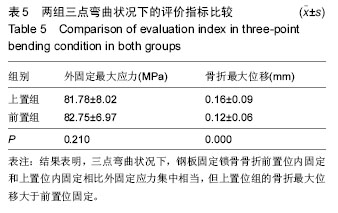

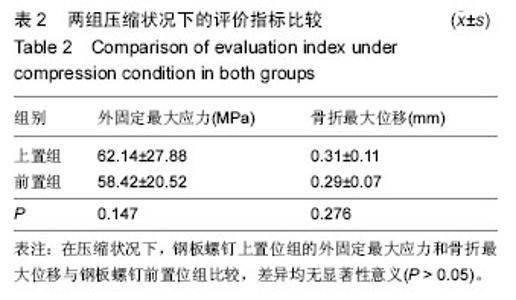

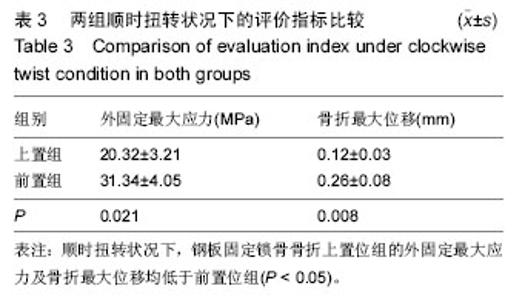

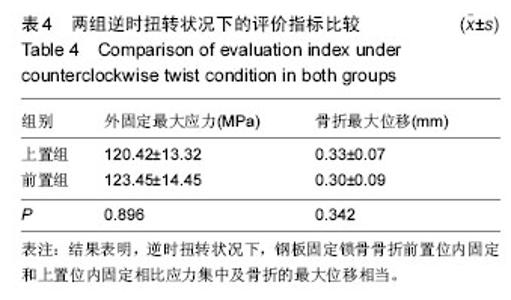

RESULTS AND CONCLUSION: (1) In the compressed condition, the maximum stress and maximum fracture displacement were similar between the superior and anterior plate fixation (P > 0.05). (2) Under clockwise twist condition, the maximum stress and maximum fracture displacement were smaller in the superior plate fixation group than in the anterior plate fixation group (P < 0.05). (3) Under counterclockwise twist condition, the maximum stress and maximum fracture displacement were similar between the anterior and superior plate fixation groups (P > 0.05). (4) Under three-point bending condition, the maximum stress was similar between the superior and anterior plate fixation groups (P > 0.05). The maximum fracture displacement was bigger in the superior plate fixation group than in the anterior plate fixation group (P < 0.05). (5) These findings suggest that superior fixation of clavicle fracture reconstruction plate has more advantages than the anterior plate fixation.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Clavicle, Fractures, Bone, Internal Fixators, Finite Element Analysis, Tissue Engineering

CLC Number:

R318

Liu Dong, Wang Jian-ming, Zhang De-gang, Zhang Kai, Du Gang-qiang. Finite element analysis of clavicle fracture with superior and anterior plate fixation[J]. Chinese Journal of Tissue Engineering Research, 2016, 20(26): 3903-3908.

Figures/Tables 4

References

[1] 周淑平,石承瓒,范伟杰．锁骨骨折的治疗进展[J]．中外医学研究,2013,11(1): 152-153．
[2] Lazarus MD,Seon C.Fractures of the clavicle.//Rkwood CA Jr,Green DP.Fractures in adults.6th ed.Philadelphia: Lippincott,2006: 1213-1255.
[3] van der Meijden OA,Gaskill TR,et al.Treatment of clavicle fractures: Current concepts review.J Shoulder Elbow Surg. 2012;21(3):423-429.
[4] Toogood P,Horst P,Samagh S,et al. Clavicle fractures:a review of the literature and update on treatment.Phys Sportsmed. 2011;39(3):142-150.
[5] Robertson C,Celestre P,Mahar A,et al.Reconstruction plates for stabilization of mid-shaft clavicle fractures: Differences between nonlocked and locked plates in two different positions.J Shoulder Elbow Surg. 2009; 18(2):204-209.
[6] Kontautas E,Pijadin A,Vilkauskas A,et al.Biomechanical aspects of locking reconstruction plate positioning in osteosynthesis of transverse clavicle fracture. Medicina (Kaunas). 2012;48(2): 80-83.
[7] Little KJ,Riches PE,Fazzi UG.Biomechanical analysis of locked and non-locked plate fixation of the clavicle. Injury. 2012;43(6): 921-925.
[8] 元东铎,谭军.锁骨中段骨折保守治疗的长期疗效[J].中国矫形外科杂志,2010,18(16):1394.
[9] Canadian Orthopaedics Trauma Society.Nonoperative treatment compared with plate fixation of displaced midshaft clavicular fractures.A multicenter,randomized clinical trial.J Bone Joint Surg Am. 2010;8: 1866.
[10] 王远航,牛小林.锁骨折治疗的研究进展[J].中国煤炭工业医学杂志,2010,13(1):168-169.
[11] 马斌,叶高力.锁骨骨折几种内固定的比较与分析[J].国际医药卫生导报, 2011,17(9):1089-1091.
[12] 连学全,黄世民,庄耀明,等.克氏针固定锁骨的生物力学试验和临床疗效[J].中华骨科杂志,1994,14(3):163-164.
[13] Zlowodzki M,Zelle BA,Cole PA, et al. Treatment of acute midshaft clavicle fractures: systematic review of 2144 fractures: on behalf of the Evidence - Based Orthopaedic Trauma Working Group.J Orthop Trauma. 2009;7: 504-507.
[14] 刘明伟,黄海燕,廖小波.记忆接骨板治疗锁骨中段粉碎性骨折[J].骨与关节损伤杂志,2009,18(3):205-206.
[15] 吴邦耀,李长军,周续祥.带绊纽扣钢板与锁骨钩钢板治疗Neer Ⅱ型锁骨远端骨折的临床比较[J]. 中国矫形外科杂志,2010,18(22):1853-1857.
[16] 沈泽培,江晓兵,董枫,等.经皮微创锁定加压钢板固定治疗锁骨骨折[J].实用骨科杂志, 2007,13(6):355-357.
[17] 郝仕强,刘一帆,麦玉芳.锁骨钩钢板治疗锁骨远端骨折及肩锁关节脱位37例体会[J].广州医药,2013,44(1):10-11.
[18] 杨舒龙,杜胜利.同种异体肌腱重建喙锁韧带治疗TossyⅢ型肩锁关节脱位[J].中外医学研究,2011,9(13):34-35.
[19] 张锋,桑惠伊,张艳艳.成人锁骨骨折手术治疗的体会[J].按摩与康复医学,2012,3(11):99.
[20] Gonzalez torres LA,Gomez benito MJ,Doblare M,et al.Influence of the frequency of the external mechanical stimulus on bone healing: a computational study.Med Eng Phys. 2010;32(4): 363-371.
[21] Byrnien DP,Lacroix D,Prendergast PJ. Simulation of fracture healing in the tibia: mechanoregulation of cell activity using a lattice modeling approach.J Orthop Res. 2011;29(10): 1496-1503.
[22] Weis JA,Miga MI,Granero molto F,et al.A finite element inverse analysis to assess functional improvement during the fracture healing process.J Biomech. 2010; 43(3): 557-562.
[23] Gao J,Gong H,Huang X,et al.Relationship between microstructure,material distribution,and mechanical properties of sheep tibia during fracture healing process.Int J Med Sci. 2013;10(11):1560-1569.
[24] 周江军,朱治宇,赵敏,等.股骨骨折髓内钉置入内固定后1年骨愈合有限元模型的快速建立[J].中国组织工程研究, 2013,17(39):6926-6931.
[25] 康洪涛,仝允辉,杨茹萍,等.股骨颈骨折愈合后钉道植骨的生物力学意义[J].中国骨与关节损伤杂志,2011,26(4): 298-301.
[26] 王丽珍,赵峰,樊瑜波.新型带锁髓内钉在股骨粗隆间骨折愈合过程中的生物力学研究[J]. 医用生物力学, 2011, 26(4):305-309.
[27] Fan Y,Xiu K,Duan H,et al.Biomechanical and histological evaluation of the application of biodegradable poly-L-lactic cushion to the plate internal fixation for bone fracture healing.Clin Biomech (Bristol,Avon). 2008;23 Suppl 1: S7-S16.
[28] Fouad H.Effects of the bone - plate material and the presence of a gap between the fractured bone and plate on the predicted stresses at the fractured bone. Med Eng Phys. 2010;32(7):783-789.
[29] Wehner T,Claes L,Ignatius A,et al.Optimization of intramedullary nailing by numerical simulation of fracture healing.J Orthop Res. 2012;30(4): 569-573.
[30] 王一民,张晟,王博炜,等. 解剖型钢板与锁定钢板固定Sanders Ⅳ型跟骨骨折的有限元分析[J].中国矫形外科杂志,2013,21(6): 602 - 607.
[31] 王志坤,夏虹,张余,等.枢椎齿突Ⅱ型骨折中空螺钉固定的三维有限元分析[J].中国临床解剖学杂志,2013,31(2): 205 - 209.
[32] 苏云山,任栋,王鹏程. 脊柱Denis B型骨折行单节段与双节段融合后生物力学强度比较[J].中华骨科杂志, 2013, 33(7): 748-754.
[33] Li QL,Li XZ,Liu Y,et al.Treatment of thoracolumbar fracture with pedicle screws at injury level: a biomechanical study based on three-dimensional finite element analysis.Eur J Orthop Surg Traumatol. 2013; 23(7): 775-780.
[34] 卢昌怀,余斌,陈辉强,等.正常步态下距骨三维有限元模型的建立及应力分析[J].南方医科大学学报,2010,30(10): 2273-2276.
[35] 姜广宗,李学锋,聂林,等.利用MIMICS和ABAUQS 建立正常人颈椎的三维有限元模型[J].中国矫形外科杂志, 2013,21(11): 1114-1120.
[36] Matsumoto T,Ohnishi I,Bessho M,et al. Prediction of vertebral strength under loading conditions occurring in activities of daily living using a computed tomography - based nonlinear finite element method.Spine(Phila Pa 1976). 2009;34(14):1464-1469.
[37] Wong C,Mikkelsen P,Hansen LB,et al. Finite element analysis of tibial fractures.Dan Med Bull. 2010;57(5): A4148.
[38] 庞智晖,樊粤光,何伟,等.股骨头坏死人工髋关节置换股骨柄假体的疲劳寿命分析[J].广东医学,2013,34(1): 54-56.
[39] Sohn HS,Shin SJ,Kim BY. Minimally invasive plate osteosynthesis using anterior-inferior plating of clavicular midshaft fractures. Arch Orthop Trauma Surg. 2012;132(2): 239-244.
