Safe pathway of screw implantation via posterior thoracic vertebra outside pedicle: anatomical and radiographic measurement of costotransverse groove

doi:10.3969/j.issn.2095-4344.2014.22.014

Abstract

Abstract:

BACKGROUND: Many present scholars do a large number of researches on anatomical structure in the thoracic costotransverse binding region so as to seek a safe pathway of screw entrance besides posterior thoracic approach outside pedicle, but their conclusions are controversial.

OBJECTIVE: To measure the anatomical and radiological structures of costotransverse groove and to explore the safe pathway of screw implantation via posterior thoracic vertebra outside pedicle of vertebral arch.

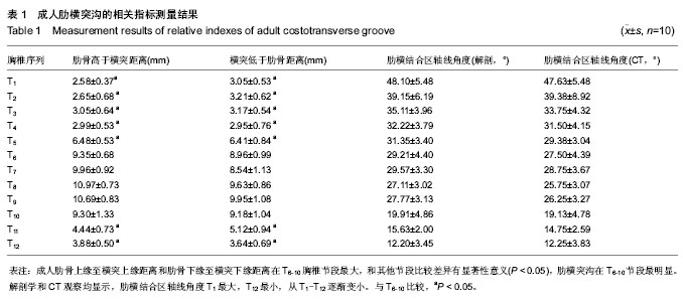

METHODS: Eight embalmed adult cadaveric thoracic spines were harvested with the medial 5.0-6.0 cm of rib. Intercostal soft issue and parietal pleura were left intact. All nonstructural soft issue was removed. Specimens were scanned with CT, and three-dimensional reconstruction was performed. The angles of the costotransverse groove were obtained. Anatomical analysis was performed in specimens. The distance from the superior limit of the rib superiorly to the superior limit of adjacent transverse process and the distance from the inferior limit of the rib inferiorly to the inferior limit of adjacent transverse process were measured.

RESULTS AND CONCLUSION: There exists a costotransverse groove between rib and transverse process. Both distance from the superior limit of the rib superiorly to the superior limit of adjacent transverse process and the distance from the inferior limit of the rib inferiorly to the inferior limit of adjacent transverse process of T₆_-10 were significantly larger than other levels (P < 0.05). The costotransverse groove was most obvious at T₆_-10segments. Results verified that adult costotransverse groove directed to vertebra, and provided a new idea for the pathway of screw implantation via posterior thoracic vertebra outside pedicle.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

全文链接：

Key words: thoracic vertebrae, ribs, anatomy, tissue engineering

CLC Number:

R318

Wang Huan-xi, Yan Hao-jun, Yao Yi-yong, Deng Zhan-sheng. Safe pathway of screw implantation via posterior thoracic vertebra outside pedicle: anatomical and radiographic measurement of costotransverse groove[J]. Chinese Journal of Tissue Engineering Research, 2014, 18(22): 3523-3526.

Figures/Tables 2

References

[1] Ceylan D, Tatarl? N, Abdullaev T, et al. The denticulate ligament: anatomical properties, functional and clinical significance. Acta Neurochir (Wien). 2012;154(7):1229-1234.
[2] Gatton ML, Pearcy MJ, Pettet GJ, et al. A three-dimensional mathematical model of the thoracolumbar fascia and an estimate of its biomechanical effect. J Biomech. 2010;43(14): 2792-2797.
[3] Huang YX, Jin LZ, Chi YL, et al. Study on the three-dimensional reconstruction and visualization of the anatomical structures of the anterior approach to the upper thoracic spine. Zhongguo Gu Shang. 2009;22(12):927-929.
[4] Loukas M, Shoja MM, Thurston T, et al. Anatomy and biomechanics of the vertebral aponeurosis part of the posterior layer of the thoracolumbar fascia. Surg Radiol Anat. 2008 Mar;30(2):125-129.
[5] Badiei A, Bottema MJ, Fazzalari NL. Influence of orthogonal overload on human vertebral trabecular bone mechanical properties. J Bone Miner Res. 2007;22(11):1690-1699.
[6] Wilke HJ, Kettler A, Wenger KH, et al. Anatomy of the sheep spine and its comparison to the human spine. Anat Rec. 1997;247(4):542-555.
[7] 王亚辉,魏华,应充亮,等.薄层CT扫描技术在锁骨胸骨端骨龄评估中的应用进展[J].法医学杂志,2013,29(2):130-133.
[8] 项征.胸椎肋横突入路途径纵向上的形态研究[D].福州:东南大学,2009.
[9] 陈育春.下颈椎椎弓根置钉的解剖形态学CT重建研究[D].汕头:汕头大学,2009.
[10] 董献成.胸椎椎弓根螺钉固定失败经椎弓根外入路补救的生物力学研究[D].扬州:扬州大学,2008.
[11] Dvorak M, Macdonald S, Gurr K, et al. An anatomic, radiographic, and biomechanical assessment of extrapedicular screw fixation in the thoracic spine. Spine 1993;18(12):1689-1694.
[12] O’Brein M, Lenke L, Mardjetko S, et al. Pedicle morphology in the thoracic adolescent idiopathic scoliosis: is pedicle fixation an anatomically viable technique? Spine. 2000;25:2285-2293.
[13] Husted DS, Yue JJ, Fairchild TA, et al. An extrapedicular approach to the placement of screws in the thoracic spine: an anatomic and radiographic assessment. Spine. 2003;28: 2324-2330.
[14] Liljenqvist U, Allkemper T, Hackenberg L, et al. Analysis of vertebral morphology in idiopathic scoliosis with use of magnetic resonance imaging and multiplanar reconstruction. J Bone Joint Surg Am. 2002;84(3):359-368.
[15] Liljenqvist U, Link T, Halm H. Morphometric analysis of thoracic and lumbar vertebrae in idiopathic scoliosis. Spine. 2000;25:1247-1253.
[16] Parent S, Labelle H, Skalli W, et al. Thoracic pedicle morphometry in vertebrae from scoliotic spines. Spine. 2004; 29:239-248.
[17] Vougjoukas VI, Weber J, Scheufjer KM. Clinical and radiological results after parapedicular screw fixation of the thoracic spine. Neurosurg Spine. 2005;3:283-287.
[18] Husted DS, Haims AH, Fairchild TA, et al. Morphometric comparison of the pedicle rib unit to pedicles in the thoracic spine. Spine. 2004;29:139-146.
[19] Xu R, Ebraheim NA, Ou Y, et al. Anatomic considerations of costotransverse screw placement in the thoracic spine. Surg Neurol. 2000;53:349-354.
[20] Sandeep P, Datir M, Sajal R. Mophometric study of the thoracic vertebral pedicle in an Indian population. Spine. 2004; 29:1174-1181.
