Overexpression of heparin-binding epidermal growth factor-like growth factor in Prrx1+ bone marrow mesenchymal stem cells inhibits mouse skeletal development

doi:10.3969/j.issn.2095-4344.1805

Abstract

Abstract:

BACKGROUND: Heparin-binding epidermal growth factor-like growth factor (HB-EGF) plays an important role in bone development. However, there is no report regarding the effects of HB-EGF derived from bone marrow mesenchymal stem cells on skeletal development.
OBJECTIVE: To study the effects of HB-EGF overexpression in bone marrow mesenchymal stem cells on skeletal development and to preliminarily explore the underlying mechanisms.
METHODS: The mouse model of HB-EGF overexpression in Prrx1⁺ bone marrow mesenchymal stem cells(ROSA26^tm1(HB-EGF); Prrx1-Cre) was constructed using Cre-LoxP system. Bone sections were processed and stained for histological analysis. Mouse bone marrow mesenchymal stem cells were cultured in vitro and their differentiation potential and relevant molecular mechanism were assessed. The experiment was approved by the Experimental Animal Management, Academics, Ethics and Use Committee of Shanghai Jiao Tong University in 2015. The approval number is A2015027.
RESULTS AND CONCLUSION: (1) Prrx1 was expressed in the articular cartilage, growth plate, trabecular bone and periosteum of adult mice. (2) The femurs of ROSA26^tm1(HB-EGF); Prrx1-Cre mice were shortened, the bone mass decreased significantly, and the cartilage morphology and structure were abnormal, all of which indicated osteoarthritic phenotype. (3) Overexpression of HB-EGF inhibited the osteogenic and chondrogenic differentiation of bone marrow mesenchymal stem cells from ROSA26^tm1(HB-EGF); Prrx1-Cre mice in vitro. These results suggest that overexpression of HB-EGF in Prrx1⁺ bone marrow mesenchymal stem cells may influence the skeletal development by inhibiting osteogenic and chondrogenic differentiation.

Key words: Prrx1, heparin-binding epidermal growth factor-like growth factor, bone marrow mesenchymal stem cells, bone, osteoblasts, chondrocytes, osteoarthritis, transgenic model

CLC Number:

Liu Jiajia, Li Ping, Deng Qi, Liu Huijuan. Overexpression of heparin-binding epidermal growth factor-like growth factor in Prrx1⁺ bone marrow mesenchymal stem cells inhibits mouse skeletal development[J]. Chinese Journal of Tissue Engineering Research, 2019, 23(29): 4623-4628.

Figures/Tables 2

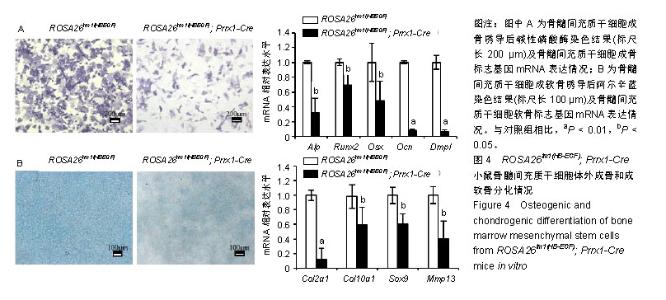

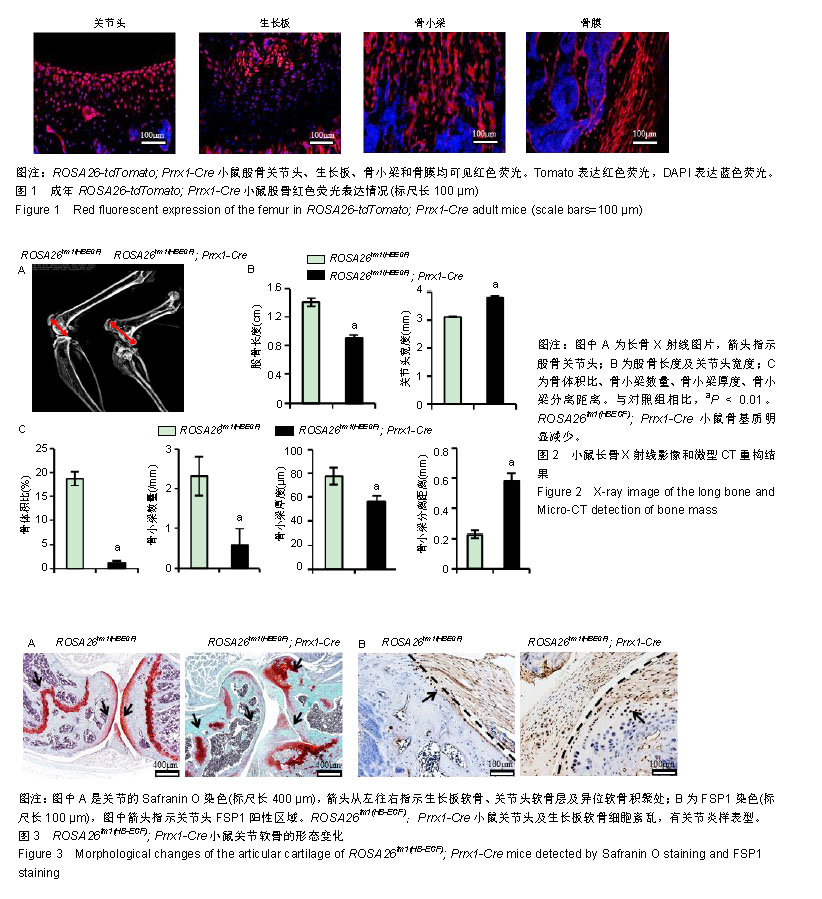

2.1 实验动物数量分析所有构建的ROSA26-tdTomato; Prrx1-Cre的小鼠均进入结果分析。 2.2 Prrx1+细胞标记小鼠典型的骨结构实验首先构建了ROSA26-tdTomato; Prrx1-Cre小鼠，通过红色荧光来示踪骨中Prrx1的表达。结果显示，Prrx1在股骨关节头、生长板、骨小梁表面和骨膜等典型的骨结构中均有表达，尤其是关节头和生长板区域，见图1。 2.3 ROSA26tm1(HB-EGF); Prrx1-Cre小鼠骨量减少通过X射线成像获得长骨二维图，发现ROSA26tm1(HB-EGF); Prrx1-Cre小鼠呈现股骨变短，关节头变宽的趋势，见图2A。定量分析结果证实其股骨长度从1.4 cm缩短到0.9 cm，关节头宽度从3.1 mm增加到3.8 mm，其差异有显著性意义，见图2B。微型CT三维重建结果发现过表达组骨体积分数降低了90%，骨小梁数量减少70%，骨小梁厚度减少20%，骨小梁分离距离增加1.5倍，见图2C，表明ROSA26tm1(HB-EGF); Prrx1-Cre小鼠骨基质明显减少。 2.4 ROSA26tm1(HB-EGF); Prrx1-Cre小鼠软骨异常 Safranin O染色发现，对照组关节结构完整，关节头及生长板软骨层结构清晰、排列整齐，而ROSA26tm1(HB-EGF); Prrx1-Cre小鼠胫骨关节头凹陷，有异位软骨积聚，股骨和胫骨关节头软骨层变薄，软骨细胞减少，软骨生长板断裂，见图3A。通过免疫组化染色发现，FSP1在ROSA26tm1(HB-EGF); Prrx1-Cre小鼠关节头表达的区域增加，同时阳性细胞的数量也明显增加，表明关节头处纤维化增加，见图3B。综上，ROSA26tm1(HB-EGF); Prrx1-Cre小鼠关节头及生长板软骨细胞紊乱，有关节炎样表型。 2.5 ROSA26tm1(HB-EGF); Prrx1-Cre小鼠骨髓间充质干细胞分化减弱将骨髓间充质干细胞进行体外培养诱导成骨、软骨分化，碱性磷酸酶染色结果发现过表达组成骨细胞明显减少，同时成骨细胞的标志基因Alp、Runx2、Osx、Ocn、Dmp1的表达都显著下调；阿尔辛蓝染色结果发现成熟的软骨细胞明显减少，软骨细胞的标志基因Col2α1、Col10α1、Sox9、Mmp13的表达也显著下降，见图4。这些结果说明过表达HB-EGF能抑制骨髓间充质干细胞成骨、软骨分化。"

References

[1]Schneider MR, Wolf E. The epidermal growth factor receptor ligands at a glance. J Cell Physiol. 2009;218(3):460-466.

[2]Miyamoto S, Yagi H, Yotsumoto F, et al. Heparin-binding epidermal growth factor-like growth factor as a novel targeting molecule for cancer therapy. Cancer Sci. 2006;97(5):341-347

[3]Falls DL. Neuregulins: functions, forms, and signaling strategies. Exp Cell Res. 2003;284(1):14-30.

[4]Ming YC, Chao HC, Chu SM, et al. Heparin-binding epidermal growth factor-like growth factor (HB-EGF) protected intestinal ischemia-reperfusion injury through JNK and p38/MAPK- dependent pathway for anti-apoptosis. Pediatr Neonatol. 2018. doi: 10.1016/j.pedneo.2018.08.003. [Epub ahead of print]

[5]Zhang X, Tamasi J, Lu X, et al. Epidermal growth factor receptor plays an anabolic role in bone metabolism in vivo. J Bone Miner Res. 2011;26(5):1022-1034.

[6]Roskoski R Jr. The ErbB/HER family of protein-tyrosine kinases and cancer. Pharmacol Res. 2014;79:34-74.

[7]Barry FP. Biology and clinical applications of mesenchymal stem cells. Birth Defects Res C Embryo Today. 2003;69(3):250-256.

[8]Ohishi M, Schipani E. Bone marrow mesenchymal stem cells. J Cell Biochem. 2010;109(2):277-282.

[9]Lamplot JD, Denduluri S, Liu X, et al. Major signaling pathways regulating the proliferation and differentiation of mesenchymal stem cells. In: Zhao R C, ed. Essentials of Mesenchymal Stem Cell Biology and Its Clinical Translation, Dordrecht: Springer Netherlands. 2013: 75-100.

[10]Chien HH, Lin WL, Cho MI. Down-regulation of osteoblastic cell differentiation by epidermal growth factor receptor. Calcif Tissue Int. 2000;67(2):141-150.

[11]Zhang X, Siclari VA, Lan S, et al. The critical role of the epidermal growth factor receptor in endochondral ossification. J Bone Miner Res. 2011;26(11):2622-2633.

[12]Vary CP, Li V, Raouf A, et al. Involvement of Ets transcription factors and targets in osteoblast differentiation and matrix mineralization. Exp Cell Res. 2000;257(1):213-222.

[13]Tsuritani K, Takeda J, Sakagami J, et al. Cytokine receptor-like factor 1 is highly expressed in damaged human knee osteoarthritic cartilage and involved in osteoarthritis downstream of TGF-beta. Calcif Tissue Int. 2010;86(1):47-57.

[14]Krampera M, Pasini A, Rigo A, et al. HB-EGF/HER-1 signaling in bone marrow mesenchymal stem cells: inducing cell expansion and reversibly preventing multilineage differentiation. Blood. 2005;106(1):59-66.

[15]Ding L, Morrison SJ. Haematopoietic stem cells and early lymphoid progenitors occupy distinct bone marrow niches. Nature. 2013;495(7440): 231-235.

[16]Madisen L, Zwingman TA, Sunkin SM, et al. A robust and high-throughput Cre reporting and characterization system for the whole mouse brain. Nat Neurosci. 2010;13(1):133-140.

[17]Logan M, Martin JF, Nagy A, et al. Expression of Cre Recombinase in the developing mouse limb bud driven by a Prxl enhancer. Genesis. 2002;33(2):77-80.

[18]Buch T, Heppner FL, Tertilt C, et al. A Cre-inducible diphtheria toxin receptor mediates cell lineage ablation after toxin administration. Nat Methods. 2005;2(6):419-426.

[19]常晓朋,陈涛,赵寅,等.骨形态发生蛋白2和转化生长因子β2协同促进骨髓间充质干细胞成骨分化[J].中国组织工程研究, 2019,23(1):1-6.

[20]张文.SkyScan 1176 Micro-CT在骨科研究中的应用[J].数字化用户, 2017,23(51):272,266.

[21]Higashiyama S, Abraham JA, Miller J, et al. A heparin-binding growth factor secreted by macrophage-like cells that is related to EGF. Science. 1991;251(4996):936-939.

[22]Taylor SR, Markesbery MG, Harding PA. Heparin-binding epidermal growth factor-like growth factor (HB-EGF) and proteolytic processing by a disintegrin and metalloproteinases (ADAM): a regulator of several pathways. Semin Cell Dev Biol. 2014;28:22-30.

[23]Iwamoto R, Mekada E. HB-EGF (Heparin-Binding EGF-Like Growth Factor). In: Choi S, ed. Encyclopedia of Signaling Molecules. Cham: Springer International Publishing. 2018: 2318-2329.

[24]Adam RM. Role of HB-EGF in cancer. Atlas Genet Cytogenet Oncol Haematol. 2011;15(7):610-619.

[25]Dao DT, Anez-Bustillos L, Adam RM, et al. Heparin-Binding Epidermal Growth Factor-Like Growth Factor as a Critical Mediator of Tissue Repair and Regeneration. Am J Pathol. 2018;188(11):2446-2456.

[26]Hanoun M, Frenette PS. This niche is a maze; an amazing niche. Cell Stem Cell. 2013;12(4):391-392. d

[27]Greenbaum A, Hsu YM, Day RB, et al. CXCL12 in early mesenchymal progenitors is required for haematopoietic stem-cell maintenance. Nature. 2013;495(7440):227-230.

[28]Mehta VB, Besner GE. HB-EGF promotes angiogenesis in endothelial cells via PI3-kinase and MAPK signaling pathways. Growth Factors. 2007;25(4):253-263.

[29]Jackson LF, Qiu TH, Sunnarborg SW, et al. Defective valvulogenesis in HB-EGF and TACE-null mice is associated with aberrant BMP signaling. EMBO J. 2003;22(11):2704-2716.

[30]Mine N, Iwamoto R, Mekada E. HB-EGF promotes epithelial cell migration in eyelid development. Development. 2005;132(19): 4317-4326.

[31]Berendsen AD,Olsen BR. Bone development.Bone. 2015;80:14-18.

[32]Ono N, Kronenberg HM. Bone repair and stem cells. Curr Opin Genet Dev. 2016;40:103-107.

[33]Nakamura T, Toita H, Yoshimoto A, et al. Potential involvement of Twist2 and Erk in the regulation of osteoblastogenesis by HB-EGF-EGFR signaling. Cell Struct Funct. 2010;35(1):53-61.

[34]Chan SY, Wong RW. Expression of epidermal growth factor in transgenic mice causes growth retardation. J Biol Chem. 2000; 275(49):38693-38698.

[35]Loeser RF, Olex AL, McNulty MA, et al. Microarray analysis reveals age-related differences in gene expression during the development of osteoarthritis in mice. Arthritis Rheum. 2012; 64(3):705-717.

[36]Loeser RF, Long DL, Olex AL, et al. A systems biology approach identifies heparin-binding EGF-like growth factor as a potential mediator in OA. Osteoarthr Cartil. 2013;21:S234-S235.

[37]Zhang X, Zhu J, Liu F, et al. Reduced EGFR signaling enhances cartilage destruction in a mouse osteoarthritis model. Bone Res. 2014;2:14015.

[38]Long DL, Ulici V, Chubinskaya S, et al. Heparin-binding epidermal growth factor-like growth factor (HB-EGF) is increased in osteoarthritis and regulates chondrocyte catabolic and anabolic activities. Osteoarthritis Cartilage. 2015;23(9):1523-1531.

[39]Sherwood J. Osteoarthritis year in review 2018: biology. Osteoarthr Cartil. 2018;27(3):365-370.

[40]Vasheghani F, Monemdjou R, Fahmi H, et al. Adult cartilage-specific peroxisome proliferator-activated receptor gamma knockout mice exhibit the spontaneous osteoarthritis phenotype. Am J Pathol. 2013;182(4):1099-1106.
