Chinese Journal of Tissue Engineering Research ›› 2025, Vol. 29 ›› Issue (27): 5810-5818.doi: 10.12307/2025.825
Previous Articles Next Articles
Wang Yijun1, Zheng Kai2, Zhang Lianfang1, Zhu Feng1, Zhang Weicheng1, Li Rongqun1, Zhou Jun1, Xu Yaozeng1
Received:
2024-06-25
Accepted:
2024-08-12
Online:
2025-09-28
Published:
2025-03-05
Contact:
Xu Yaozeng, MD, Chief physician, Professor, Department of Orthopedic Surgery, First Affiliated Hospital of Soochow University, Suzhou 215000, Jiangsu Province, China
About author:
Wang Yijun, MS, Attending physician, Department of Orthopedic Surgery, First Affiliated Hospital of Soochow University, Suzhou 215000, Jiangsu Province, China
Supported by:
CLC Number:
Wang Yijun, Zheng Kai, Zhang Lianfang, Zhu Feng, Zhang Weicheng, Li Rongqun, Zhou Jun, Xu Yaozeng. Navigation-assisted total knee arthroplasty using functional alignment restores constitutional alignment and joint line obliquity[J]. Chinese Journal of Tissue Engineering Research, 2025, 29(27): 5810-5818.
Add to citation manager EndNote|Reference Manager|ProCite|BibTeX|RefWorks

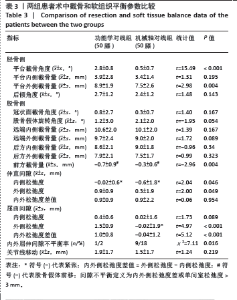

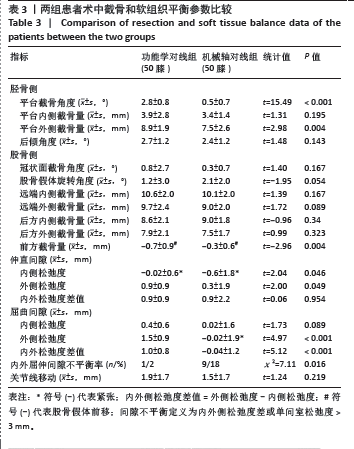

2.4 手术情况 如表3所示,与机械轴对线组相比,功能学对线组术中胫骨平台截骨角度、平台外侧截骨量、伸直间隙内侧松弛度、伸直间隙外侧松弛度、屈曲间隙外侧松弛度、屈曲间隙内外侧松弛度差值增大,差异均有显著性意义(P < 0.05)。功能学对线组前方截骨量为(-0.7±0.9) mm,间隙不平衡比例为1例(2%),小于机械轴对线组的(-0.3±0.6) mm、9例(18%),差异有显著性意义(P < 0.05)。两组胫骨平台内侧截骨量、后倾角度、股骨冠状面截骨、旋转角度、股骨远端及后方截骨量、伸直间隙内外侧松弛度差值、屈曲间隙内侧松弛度和关节线移动等参数相比差异均无显著性意义(P > 0.05)。"

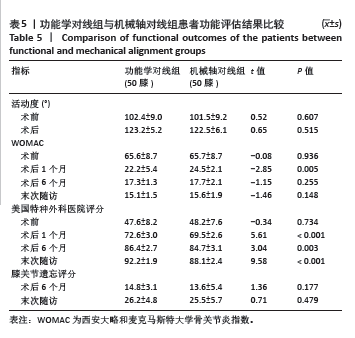

2.8 功能评估结果 如表5所示,功能学对线组术后1个月、6个月、末次随访美国特种外科医院评分较机械轴对线组升高,差异均有显著性意义(P < 0.05);功能学对线组术后1个月WOMAC较机械轴对线组降低,差异有显著性意义(t=-2.85,P=0.005)。两组术后膝关节活动度、术后6个月、末次随访的WOMAC及膝关节遗忘评分相比差异均无显著性意义(P > 0.05)。 2.9 并发症情况 随访期间,功能学对线组发现5例(10%)下肢深静脉血栓,机械轴对线组有7例(12%),多为膝关节水平以下的肌间静脉血栓,经常规抗凝治疗后好转。两组均未见伤口感染、垫片脱位、假体周围骨折及假体松动下沉等并发症。植入物生物相容性良好,未出现植入物周围感染、过敏反应、免疫反应及排斥反应。"
[1] OUSSEDIK S, ABDEL MP, VICTOR J, et al. Alignment in total knee arthroplasty. Bone Joint J. 2020;102-B(3):276-279. [2] INSALL JN, BINAZZI R, SOUDRY M, et al. Total knee arthroplasty. Clin Orthop Relat Res. 1985;(192):13-22. [3] KARASAVVIDIS T, PAGAN CA, DEBBI EM, et al. No difference in limb alignment between kinematic and mechanical alignment robotic-assisted total knee arthroplasty. J Arthroplasty. 2024;39(8S1): S200-S205. [4] MACDESSI SJ, GRIFFITHS-JONES W, HARRIS IA, et al. Coronal plane alignment of the knee (cpak) classification. Bone Joint J. 2021;103-B(2): 329-337. [5] KAYANI B, KONAN S, PIETRZAK JRT, et al. Iatrogenic bone and soft tissue trauma in robotic-arm assisted total knee arthroplasty compared with conventional jig-based total knee arthroplasty: A prospective cohort study and validation of a new classification system. J Arthroplasty. 2018;33(8):2496-2501. [6] MACDESSI SJ, GRIFFITHS-JONES W, CHEN DB, et al. Restoring the constitutional alignment with a restrictive kinematic protocol improves quantitative soft-tissue balance in total knee arthroplasty: A randomized controlled trial. Bone Joint J. 2020;102-B(1):117-124. [7] BERCOVY M, KERBOULL L, MULLER JH, et al. Satisfactory mid- to long-term outcomes of tka aligned using conventional instrumentation for flexion gap balancing with minimal soft tissue release. Knee Surg Sports Traumatol Arthrosc. 2022;30(2):627-637. [8] NAM D, NUNLEY RM, BARRACK RL. Patient dissatisfaction following total knee replacement: A growing concern? Bone Joint J. 2014;96-B(11 Supple A):96-100. [9] DEFRANCE MJ, SCUDERI GR. Are 20% of patients actually dissatisfied following total knee arthroplasty? A systematic review of the literature. J Arthroplasty. 2023;38(3):594-599. [10] BEGUM FA, KAYANI B, MAGAN AA, et al. Current concepts in total knee arthroplasty : Mechanical, kinematic, anatomical, and functional alignment. Bone Jt Open. 2021;2(6):397-404. [11] CHANG JS, KAYANI B, WALLACE C, et al. Functional alignment achieves soft-tissue balance in total knee arthroplasty as measured with quantitative sensor-guided technology. Bone Joint J. 2021;103-B(3): 507-514. [12] CHOI BS, KIM SE, YANG M, et al. Functional alignment with robotic‑arm assisted total knee arthroplasty demonstrated better patient-reported outcomes than mechanical alignment with manual total knee arthroplasty. Knee Surg Sports Traumatol Arthrosc. 2023;31(3): 1072-1080. [13] RIVIERE C, IRANPOUR F, AUVINET E, et al. Alignment options for total knee arthroplasty: A systematic review. Orthop Traumatol Surg Res. 2017;103(7):1047-1056. [14] 郑恺,孙厚义,梁晓龙,等. 调整限制性运动学对线在导航辅助全膝关节置换术中的初步应用[J]. 中华骨科杂志,2022,42(20): 1348-1357. [15] MARQUES LUIS N, VARATOJO R. Radiological assessment of lower limb alignment. EFORT Open Rev. 2021;6(6):487-494. [16] ZHENG K, SUN H, ZHANG W, et al. Mid-term outcomes of navigation-assisted primary total knee arthroplasty using adjusted mechanical alignment. Orthop Surg. 2023;15(1):230-238. [17] VAN ESSEN J, STEVENS J, DOWSEY MM, et al. Kinematic alignment results in clinically similar outcomes to mechanical alignment: Systematic review and meta-analysis. Knee. 2023;40:24-41. [18] CORTINA G, ZA P, PAPALIA GF, et al. Restricted kinematic alignment is clinically non-inferior to mechanical alignment in the short and mid-term: A systematic review. Knee. 2023;45:137-146. [19] KHLOPAS A, CHUGHTAI M, HAMPP EL, et al. Robotic-arm assisted total knee arthroplasty demonstrated soft tissue protection. Surg Technol Int. 2017;30:441-446. [20] MASILAMANI ABS, JAYAKUMAR T, MULPUR P, et al. Functional alignment is associated with increased incidence of pre-balance, reduced soft-tissue release, and post-operative pain compared to mechanical alignment in patients undergoing simultaneous bilateral robotic-assisted tka. J Robot Surg. 2023;17(6):2919-2927. [21] HE X, CAI H, ZHANG K. Pie-crusting technique is effective and safe to release superficial medial collateral ligament for total knee arthroplasty. J Orthop Translat. 2018;13:33-40. [22] SIONG FT, KIM TW, KIM SC, et al. Efficacy and safety of functional medial ligament balancing with stepwise multiple needle puncturing in varus total knee arthroplasty. J Arthroplasty. 2020;35(2):380-387. [23] NIKI Y, HARATO K, NAGAI K, et al. Effects of reduction osteotomy on gap balancing during total knee arthroplasty for severe varus deformity. J Arthroplasty. 2015;30(12):2116-2120. [24] BOURNE RB, CHESWORTH BM, DAVIS AM, et al. Patient satisfaction after total knee arthroplasty: Who is satisfied and who is not? Clin Orthop Relat Res. 2010;468(1):57-63. [25] VIGDORCHIK JM, WAKELIN EA, KOENIG JA, et al. Impact of component alignment and soft tissue release on 2-year outcomes in total knee arthroplasty. J Arthroplasty. 2022;37(10):2035-2040 e2035. [26] MACDESSI SJ, OUSSEDIK S, ABDEL MP, et al. The language of knee alignment : Updated definitions and considerations for reporting outcomes in total knee arthroplasty. Bone Joint J. 2023;105-B(2):101. [27] KAYANI B, KONAN S, TAHMASSEBI J, et al. A prospective double-blinded randomised control trial comparing robotic arm-assisted functionally aligned total knee arthroplasty versus robotic arm-assisted mechanically aligned total knee arthroplasty. Trials. 2020;21(1):194. [28] BLOOM DA, KAPLAN DJ, MOJICA E, et al. The minimal clinically important difference: A review of clinical significance. Am J Sports Med. 2023;51(2):520-524. [29] OSTOJIC M, WINKLER PW, KARLSSON J, et al. Minimal clinically important difference: Don’t just look at the “p-value”. Knee Surg Sports Traumatol Arthrosc. 2023;31(10):4077-4079. [30] CHENG J, FENG M, CAO G, et al. Patient outcomes in anteromedial osteoarthritis patients over 80 years old undergoing oxford unicompartmental knee arthroplasty in china. BMC Musculoskelet Disord. 2020;21(1):446. [31] CLEMENT ND, BARDGETT M, WEIR D, et al. What is the minimum clinically important difference for the womac index after tka? Clin Orthop Relat Res. 2018;476(10):2005-2014. [32] PARRATTE S, VAN OVERSCHELDE P, BANDI M, et al. An anatomo-functional implant positioning technique with robotic assistance for primary tka allows the restoration of the native knee alignment and a natural functional ligament pattern, with a faster recovery at 6 months compared to an adjusted mechanical technique. Knee Surg Sports Traumatol Arthrosc. 2023;31(4):1334-1346. [33] VANDEKERCKHOVE PTK, MATLOVICH N, TEETER MG, et al. The relationship between constitutional alignment and varus osteoarthritis of the knee. Knee Surg Sports Traumatol Arthrosc. 2017;25(9): 2873-2879. [34] BELLEMANS J, COLYN W, VANDENNEUCKER H, et al. The chitranjan ranawat award: Is neutral mechanical alignment normal for all patients? The concept of constitutional varus. Clin Orthop Relat Res. 2012;470(1):45-53. [35] MULPUR P, DESAI KB, MAHAJAN A, et al. Radiological evaluation of the phenotype of indian osteoarthritic knees based on the coronal plane alignment of the knee classification (cpak). Indian J Orthop. 2022;56(12):2066-2076. |
