Cerium dioxide nanoparticles regulate expression of inflammatory factors in M1 macrophages and affect fibroblast co-culture system

doi:10.12307/2025.899

Abstract

Abstract: BACKGROUND: Macrophage polarization plays a key role in chronic inflammatory joint diseases such as rheumatoid arthritis. Cerium dioxide (CeO2) nanoparticles have a wide range of biomedical applications such as modulating the local inflammatory microenvironment of tissues.
OBJECTIVE: To investigate the role of CeO2 nanoparticles on macrophage polarization and inflammatory factor expression, as well as inflammatory modulation in a co-culture system of macrophages and fibroblasts.

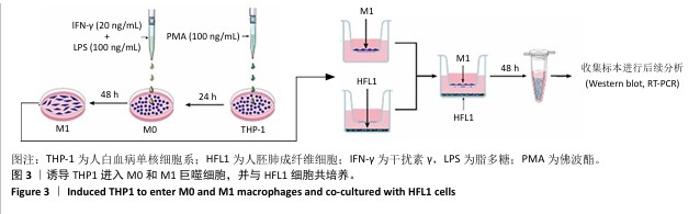

METHODS: (1) CeO2 nanoparticles were dispersed and observed morphologically by transmission electron microscopy. (2) Human leukemia monocytes (THP-1) were induced to differentiate and establish the M1 macrophage pro-inflammatory cell model of rheumatoid arthritis. The cells were divided into M0 group (undifferentiated macrophages), M1 group (successful macrophage modeling), CeO2 nanoparticle treatment group (M1 group with CeO2 nanoparticle treatment), and dexamethasone control group (M1 group with dexamethasone treatment) and incubated for 48 hours. The effects of CeO2 nanoparticles on the expression of inflammatory factors (endogenous nitric oxide synthase, CD86, CD80) in M1 macrophages and M1 macrophage phenotype (CD80, CD206) were detected by RT-qPCR, western blot assay, and flow cytometry. (3) A co-culture system of macrophages and fibroblasts was established, and CeO2 nanoparticles acted on the upper macrophages. The regulation of CeO2 nanoparticles on the expression of inflammatory factors (interleukin-6, tumor necrosis factor-α, cyclooxygenase-2, and endogenous nitric oxide synthase) of fibroblasts in the co-culture system was observed at the mRNA and protein levels.

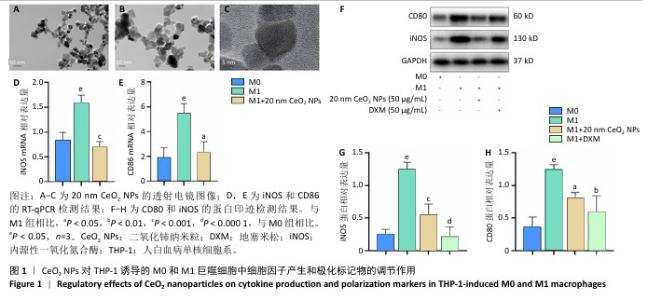

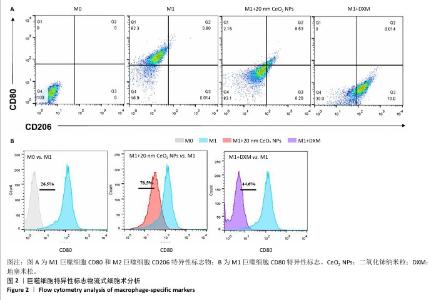

RESULTS AND CONCLUSION: (1) Transmission electron microscopy showed that the diameter of CeO2 nanoparticles was (19.5±2.0) nm. (2) Compared with the M0 group, the mRNA of endogenous nitric oxide synthase and CD86, and the protein expression of endogenous nitric oxide synthase and CD80 in the M1 group were upregulated. Compared with the M1 group, the mRNA expression of endogenous nitric oxide synthase and CD86, and the protein expression of endogenous nitric oxide synthase and CD80 in the CeO2 nanoparticle treatment group were downregulated. Flow cytometry showed that 20 nm CeO2 nanoparticles downregulated the number of M1 macrophages. (3) Compared with the M1 group, 20 nm CeO2 nanoparticles downregulated the mRNA and protein expression of inflammatory factors (tumor necrosis factor α, interleukin 6, cyclooxygenase 2, and endogenous nitric oxide synthase) in the co-culture system HFL1 cells. (4) The results showed that 20 nm CeO2 nanoparticles can alleviate inflammation in the co-culture system by inhibiting the expression of pro-inflammatory factors in M1 macrophages, providing a new idea for the treatment of inflammatory diseases such as rheumatoid arthritis.

Key words: CeO2 nanoparticle, macrophage polarization, rheumatoid arthritis, synovitis, Transwell co-culture, engineered microenvironment

CLC Number:

Xie Peisen, Guan Zhenpeng, Wei Xianjie, Zhang Keshi, Kang Qingyuan, Xiao Wentao, Guo Xiaoshuai. Cerium dioxide nanoparticles regulate expression of inflammatory factors in M1 macrophages and affect fibroblast co-culture system[J]. Chinese Journal of Tissue Engineering Research, 2026, 30(2): 375-383.

Figures/Tables 4

References

[1] 王俊伟, 李伟, 耿兴超.类风湿关节炎发病机制研究进展[J].风湿病与关节炎,2024,13(8):67-72.
[2] FINCKH A, GILBERT B, HODKINSON B, et al. Global epidemiology of rheumatoid arthritis. Nat. Rev. Rheumatol. 2022;18(10):591-602.
[3] CUSH JJ. Rheumatoid Arthritis: Early Diagnosis and Treatment. Rheum Dis Clin North Am. 2022;48(2):537-547.
[4] KOMATSU N, TAKAYANAGI H. Mechanisms of joint destruction in rheumatoid arthritis-immune cell-fibroblast-bone interactions. Nat Rev Rheumatol. 2022;18(7):415-429.
[5] RODRÍGUEZ-UBREVA J, DE LA CALLE-FABREGAT C, LI T, et al. Inflammatory cytokines shape a changing DNA methylome in monocytes mirroring disease activity in rheumatoid arthritis. Ann Rheum Dis. 2019;78(11):1505-1516.
[6] KUROWSKA-STOLARSKA M, ALIVERNINI S. Synovial tissue macrophages in joint homeostasis, rheumatoid arthritis and disease remission. Nat Rev Rheumatol. 2022;18(7):384-397.
[7] CUTOLO M, CAMPITIELLO R, GOTELLI E, et al. The Role of M1/M2 Macrophage Polarization in Rheumatoid Arthritis Synovitis. Front Immunol. 2022;13:867260.
[8] SMOLEN JS, ALETAHA D, MCINNES IB. Rheumatoid arthritis. Lancet. 2016;388(10055):2023-2038.
[9] HUMAIRA, BUKHARI SAR, SHAKIR HA, et al. Biosynthesized Cerium Oxide Nanoparticles CeO2NPs: Recent Progress and Medical Applications. Curr Pharm Biotechnol. 2023;24(6):766-779.
[10] LORD MS, BERRET JF, SINGH S, et al. Redox Active Cerium Oxide Nanoparticles: Current Status and Burning Issues. Small (Weinheim an Der Bergstrasse, Germany). 2021;17(51):e2102342.
[11] LI M, LIU J, LUO X, et al. Monoclonal Antibody-Guided Tumor-Targeted Hollow Virus-Like Cerium Oxide with Oxygen Self-Supply for Intensifying Photodynamic Therapy. Adv Healthc Mater. 2023;12(8):e2202418.
[12] MENG L, TANG L, GAO F, et al. Hollow CeO2-Based Nanozyme with Self-Accelerated Cascade Reactions for Combined Tumor Therapy. Chemistry. 2024;30(49):e202401640.
[13] SANMUGAM A, ABBISHEK S, KUMAR SL, et al. Synthesis of chitosan based reduced graphene oxide-CeO2 nanocomposites for drug delivery and antibacterial applications. J Mech Behav Biomed Mater. 2023;145:106033.
[14] ERNST LM, PUNTES V. How Does Immunomodulatory Nanoceria Work? ROS and Immunometabolism. Front Immunol. 2022;13:750175.
[15] BYUN SY, HAN AR, KIM KM, et al. Antibacterial properties of mesoporous silica coated with cerium oxide nanoparticles in dental resin composite. Sci Rep. 2024;14(1):18014.
[16] HE J, MENG X, MENG C, et al. Layer-by-Layer Pirfenidone/Cerium Oxide Nanocapsule Dressing Promotes Wound Repair and Prevents Scar Formation. Molecules. 2022;27(6):1830.
[17] YU D, CHEN L, YAN T, et al. Enhancing Infected Diabetic Wound Healing through Multifunctional Nanocomposite-Loaded Microneedle Patch: Inducing Multiple Regenerative Sites. Adv Healthc Mater. 2024;13(20): e2301985.
[18] VANDEWALLE J, LUYPAERT A, DE BOSSCHER K, et al. Therapeutic Mechanisms of Glucocorticoids. Trends Endocrinol Metab. 2018; 29(1):42-54.
[19] CRUZ-TOPETE D, CIDLOWSKI JA. One hormone, two actions: anti- and pro-inflammatory effects of glucocorticoids. Neuroimmunomodulation. 2015;22(1-2):20-32.
[20] QUAN L, ZHANG Y, CRIELAARD BJ, et al. Nanomedicines for inflammatory arthritis: head-to-head comparison of glucocorticoid-containing polymers,micelles,and liposomes.ACS Nano. 2014;8(1): 458-466.
[21] JANG S, KWON EJ, LEE JJ. Rheumatoid Arthritis: Pathogenic Roles of Diverse Immune Cells. Int J Mol Sci. 2022;23(2):905.
[22] YUNNA C, MENGRU H, LEI W, et al. Macrophage M1/M2 polarization. Eur J Pharmacol. 2020;877:173090.
[23] LI Y, LIANG Q, ZHOU L, et al. An ROS-responsive artesunate prodrug nanosystem co-delivers dexamethasone for rheumatoid arthritis treatment through the HIF-1α/NF-κB cascade regulation of ROS scavenging and macrophage repolarization. Acta Biomater. 2022;152:406-424.
[24] KIM J, KIM HY, SONG SY, et al. Synergistic Oxygen Generation and Reactive Oxygen Species Scavenging by Manganese Ferrite/Ceria Co-decorated Nanoparticles for Rheumatoid Arthritis Treatment. ACS Nano. 2019;13(3):3206-3217.
[25] PAOLINO S, CUTOLO M, PIZZORNI C. Glucocorticoid management in rheumatoid arthritis: morning or night low dose? Reumatologia. 2017;55(4):189-197.
[26] SAIFI MA, SEAL S, GODUGU C. Nanoceria, the versatile nanoparticles: Promising biomedical applications. J Control Release. 2021;338: 164-189.
[27] FU X, LI P, CHEN X, et al. Ceria nanoparticles: biomedical applications and toxicity. J Zhejiang Univ Sci B. 2024;25(5):361-388.
[28] MIRAN HA, JAF ZN, ALTARAWNEH M,et al. An Insight into Geometries and Catalytic Applications of CeO2 from a DFT Outlook. Molecules. 2021;26(21):6485.
[29] MENG X, WANG WD, LI SR, et al.Harnessing cerium-based biomaterials for the treatment of bone diseases. Acta Biomater. 2024;183:30-49.
[30] GIRIGOSWAMI A, ADHIKESAVAN H, MUDENKATTIL S, et al. Role of Cerium Oxide Nanoparticles and Doxorubicin in Improving Cancer Management: A Mini Review.Curr Pharm Des. 2023;29(33):
2640-2654.
[31] SAIF-ELNASR M, SAMY EM, ABDEL-KHALEK AF. Cerium oxide nanoparticles display antioxidant and antiapoptotic effects on gamma irradiation-induced hepatotoxicity. Cell Biochem Funct. 2024; 42(5):e4092.
[32] ALVANDI M, SHAGHAGHI Z, FARZIPOUR S, et al. Radioprotective Potency of Nanoceria. Curr Radiopharm. 2024;17(2):138-147.
[33] YANG L, RAN H, YIN Y, et al. Mitochondrial Targeted Cerium Oxide Nanoclusters for Radiation Protection and Promoting Hematopoiesis. International Journal of Nanomedicine. 2024;19:6463-6483.
[34] YANG J, XIAO S, DENG J, et al. Oxygen vacancy-engineered cerium oxide mediated by copper-platinum exhibit enhanced SOD/CAT-mimicking activities to regulate the microenvironment for osteoarthritis therapy. J Nanobiotechnology. 2024;22(1):491.
[35] SANDOVAL C, REYES C, ROSAS P, et al. Effectiveness of Cerium Oxide Nanoparticles in Non-Alcoholic Fatty Liver Disease Evolution Using In Vivo and In Vitro Studies: A Systematic Review. Int J Mol Sci. 2023; 24(21):15728.
[36] SUN Y, SUN X, LI X, et al. A versatile nanocomposite based on nanoceria for antibacterial enhancement and protection from aPDT-aggravated inflammation via modulation of macrophage polarization. Biomaterials. 2021;268:120614.
[37] HUSSAIN S, AL-NSOUR F, RICE AB, et al. Cerium dioxide nanoparticles induce apoptosis and autophagy in human peripheral blood monocytes. ACS Nano. 2012;6(7):5820-5829.
[38] MA JY, ZHAO H, MERCER RR, et al. Cerium oxide nanoparticle-induced pulmonary inflammation and alveolar macrophage functional change in rats. Nanotoxicology. 2011;5(3):312-325.
[39] PARK EJ, CHOI J, PARK YK, et al. Oxidative stress induced by cerium oxide nanoparticles in cultured BEAS-2B cells. Toxicology. 2008; 245(1-2):90-100.
[40] HUSSAIN S, AL-NSOUR F, RICE AB, et al. Cerium dioxide nanoparticles induce apoptosis and autophagy in human peripheral blood monocytes. ACS Nano. 2012;6(7):5820-5829.
[41] KALASHNIKOVA I, CHUNG SJ, NAFIUJJAMAN M, et al. Ceria-based nanotheranostic agent for rheumatoid arthritis. Theranostics. 2020; 10(26):11863-11880.
