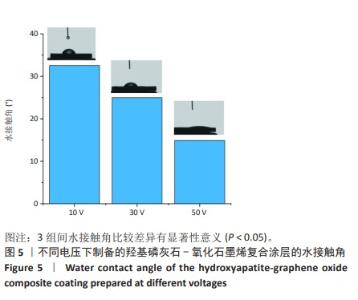

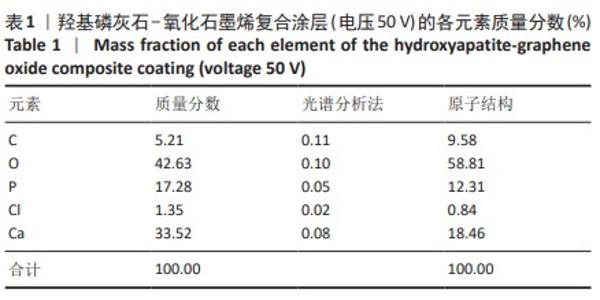

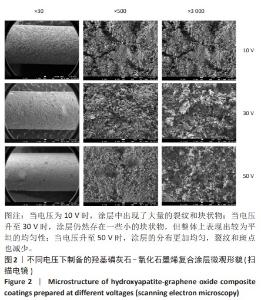

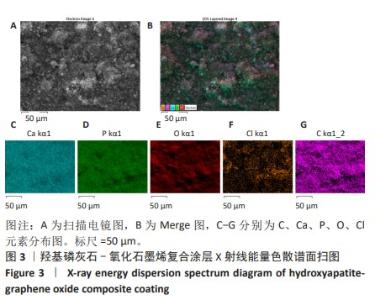

2.1.3 复合涂层拉曼光谱分析结果 从拉曼光谱的分析可以看出,3组复合涂层中1 590 cm-1处的G 峰与1 352 cm-1处的G,D峰都非常突出,其中G 峰代表着氧化石墨烯的sp2晶体的形态,而D峰则反映了它的不规则的振荡行为。此外,50 V组峰值最大,其次为30 V组,而10 V组的峰值则最小,见图4。并且594,962,588 cm-1处均出现了PO43-的显著高位,而786 cm-1处则存在着Ti-O 的明显高位,这些高位的出现是由于羟基磷灰石中PO43-的存在所致。因此,发现这种涂料既包括了氧化石墨烯又包括羟基磷灰石晶体,而这些物质在这种情况下具有良好的互溶性。 2.1.4 复合涂层的水接触角测量 10,30,50 V组的静态接触角分别为(31.71±1.43)°,(24.38±1.21)°和(14.96±1.32)°,组间比较差异有显著性意义(P < 0.05),见图5。 综合以上实验结果,在50 V电压下制备的复合涂层物理性能最优,选择该复合涂层进行动物体内实验。"

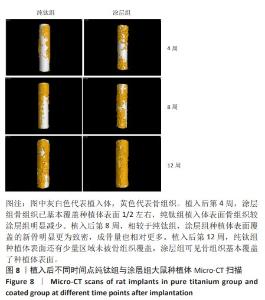

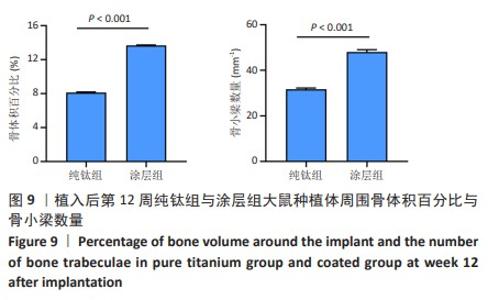

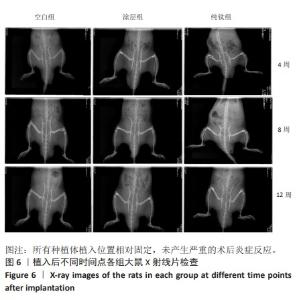

2.2.4 各组大鼠种植体Micro-CT扫描结果 因空白组未植入种植体,所以未进行Micro-CT扫描。纯钛组与涂层组大鼠植入体和周围骨组织的3D重建图如图8所示,图中灰白色代表植入体,黄色代表骨组织。植入后第4周,涂层组骨组织已基本覆盖种植体表面1/2左右,纯钛组植入体表面骨组织较涂层组明显减少。植入后第8周,相较于纯钛组,涂层组种植体表面覆盖的新骨明显更为致密,成骨量也相对更多。植入后第12周,纯钛组种植体表面还有少量区域未被骨组织覆盖,涂层组可见骨组织基本覆盖了种植体表面。植入后第12周,两组大鼠种植体周围骨组织骨体积百分比、骨小梁数量定量分析结果,见图9,涂层组大鼠种植体周围骨组织骨体积百分比、骨小梁数量均高于纯钛组(P < 0.001)。"

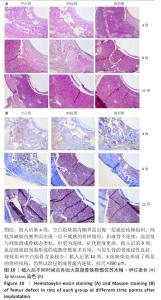

2.2.5 各组大鼠股骨缺损部位苏木精伊红染色与Masson染色 各组大鼠股骨缺损部位苏木精-伊红染色与Masson染色,见图10。 苏木精-伊红染色染色与Masson染色结果显示,植入后第4周,空白组缺损内侧界面出现一层疏松结缔组织;纯钛组缺损内侧界面出现一层不成熟的骨样组织,但成骨不连续;涂层组与纯钛组成骨状态类似,但更为连续,矿化程度更高。植入后第8周,涂层组缺损周围形成的成熟骨数量多且厚,与原生骨的骨连接性良好,而纯钛组和空白组骨含量较少,并且缺乏完整性。植入后第12周,3组缺损处形成了明显的骨样结构,仍然以涂层组成骨最为连续。 2.2.6 各组大鼠股骨缺损部位免疫组化染色 植入后第12周各组大鼠股骨缺损部位免疫组化染色,见图11所示。纯钛组大鼠骨缺损部位骨桥蛋白、骨形态发生蛋白2表达多于空白组,涂层组大鼠骨缺损部位骨桥蛋白、骨形态发生蛋白2表达多于纯钛组(P < 0.001)。 综上所述,上述实验结果显示羟基磷灰石-氧化石墨烯复合涂层在钛基质上的多层结构可以通过调节细胞黏附、上调相关基因的表达,同时有效释放Ca、P基质,达到改善植体表面骨形成的作用。"
