Best screw placement parameters in S1 pedicle based on three-dimensional reconstruction

doi:10.3969/j.issn.2095-4344.0364

Abstract

Abstract:

BACKGROUND: Placement of S₁ pedicle screw is widely used in the treatment of spinal diseases. Because the sacrum itself does not have typical pedicle and lateral block, the transitional area between sacral transverse process and vertebra is defined as pedicle. The bone density of S₁ pedicle is significantly lower than that of pedicle of thoracic and lumbar vertebrae. However, the S₁ vertebra is usually the end vertebra of the spine arch screw, which suffers great stress, and there are many complications of loose and broken nail in clinical follow-up. Therefore, the fixation of the S₁ vertebrae needs to be individualized and precise to obtain the best biomechanics.

OBJECTIVE: To reconstruct the pelvic ring structure by digital technology to simulate S₁ pedicle screw placement, so as to provide anatomical reference for clinical practice.

METHODS: Pelvic CT data of 108 patients in Zigong Fourth People’s Hospital between April and August, 2017 obtained by CT thin slice scanning were included after excluding congenital malformation, and severe degeneration of the sacral and bilateral iliac bones. Three-dimensional model was reconstructed using Mimics software and optimal space nail was simulated by digital technology. S₁ screw entry point was set as the intersection of lines where extension of S₁facet joint inferior margin and lateral margin cross over. The length of the screw, screw position, tangent distance screw nail cap and the iliac wing and the distance between plane wing of ilium nail were measured.

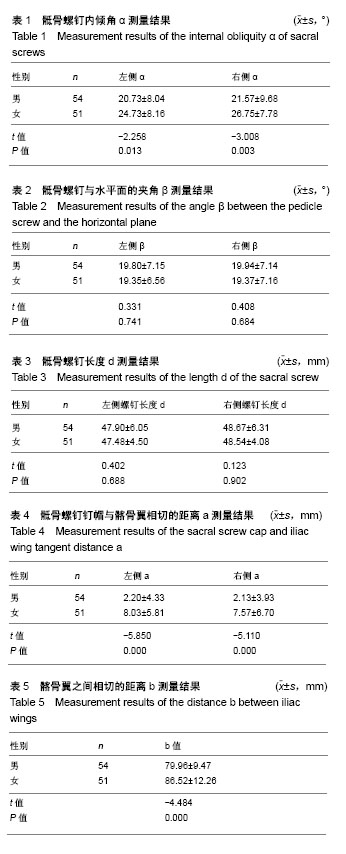

RESULTS AND CONCLUSION: (1) The left oblique angle (α) of S₁ pedicle screws was (20.73±8.04)° in males, and (24.73±8.16)° in females (P=0.013). (2) The right α was (21.57±9.68)° in males and (26.75+7.78)° in females (P=0.003). (3) The distance between the left screw nail cap and the iliac wing (a) was (2.20±4.33) mm in males, and (8.03±8.81) mm in females (P=0.000). (4) The right a was (2.13±3.93) mm in males, and (7.57±6.70) mm in females (P=0.000). (5) The distance between planar iliac bone (b) of screw was (76.96±9.47) mm in males, and (86.52±12.56) mm in females (P=0.000). (6) There was no significant difference in the angle (β) of the left and right sides and the length (d) of screw implantation in females and males (P > 0.05). (7) Three patients could not receive vertical and medial anterior internal fixation due to iliac wing obstruction. (8) These results indicate that the anatomy of the sacral and pelvic rings in South Sichuan is described in detail. The parameters of the S₁ pedicle screw implantation can be used as a reference for clinical application.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

CLC Number:

R445

Wan Shengyu, Lin Xu, Wu Chao, Deng Jiayan. Best screw placement parameters in S₁ pedicle based on three-dimensional reconstruction[J]. Chinese Journal of Tissue Engineering Research, 2018, 22(35): 5620-5624.

Figures/Tables 1

References

[1] Zindrick MR, Wiltse LL, Widell EH, et al. A biomechanical study of intrapedicularscrew fixation in the lumbosacral spine. Clin Orthop. 1986;203: 99-112.

[2] stuik JP. Techniques of internal fixation for degenerative conditions of the spine . Clin Orthop. 1986;203: 2019-2022.

[3] Krag MH. Biomechanic of thoraco lumbarspinal fixation: areview. Spine. 1991;16:584-587.

[4] Smith SA,Abitbol JJ,Carlson GD,et al.The effects of depth ofpenetration,screw orientation,and bone density on sacral screwfixation. Spine. 1993;18(8):1006-1010.

[5] Carlson GD,Abitbol JJ,Anderson DR, et a1.Screw fixation in the human sacrum:an in vitro study of the biomechanics of fixation. Spine. 1992;17(Suppl6):196-203.

[6] Fairbank JC, Pynsent PB. The Oswestry Disability Index. Spine(Phila Pa 1976). 2000;25(22):2940-2952.

[7] Bernhardt M, Swartz DE,Clothiaux PL,et al.Posterolateral lumbar and lumbosacral fusion with and without pedicle screw internal fixation. ClinOrthop Relat Res.1992;(284):109-115.

[8] Horowitch A,Peek RD,Thomas JC Jr, et al.The Wiltse pedicle screw fixation system:Early clinical results.Spine(Phila Pa 1976). 1989;14(4):461-467.

[9] Horton WC, Holt RT, Muldowny DS. Controversy. Fusion of L5-S1 in adult scoliosis.Spine(Phila Pa 1976). 1996;21(21):2520-2522.

[10] Lehman RA, Kuklo TR,Belmont PJ, et al.Advantage of pedicle screw fixation directed into the apex of the sacral promontory over bicortical fixation: a biomechanicalanalysis.Spine. 2002;27(8):806-811.

[11] Zheng YG, Lu WW,Zhu Q, et al. Variation in bone mineral density of the sacrum in young adults and its significance for sacral fixation.Spine. 2000;25(3):353-357.

[12] Hadjipavlou AG,Nicodemus CL,al-Hamdan FA,et al. Correlation of bone equivalent mineral density to pull-out resistance of triangulated pedicle screw construct. J Spinal Disord. 1997;10(1):12-19.

[13] Pfeiffer M, Hoffman H, Goel VK, et al.In vitro testing of a new transpedicular stabilization technique. Eur Spine J. 1997;6(4):249-255.

[14] Matsukawa K, Yato Y, Kato T, et al. Cortical bone trajectory forlumbosacral fixation:penetrating S1 endplate screw technique: technical note.J Neurosurg Spine. 2014;21(2):203-209.

[15] 黄宗文,饶书城.脊柱腰骶段经椎弓根固定的应用解剖学研究[J].中国脊柱脊髓杂志,1996,6(3):119-122.

[16] 龙源深,梁锦,詹世强,等.改进第1骶椎椎弓根螺钉进入法的解剖学研究与临床应用[J].中华骨科杂志,1999,19(9):537-540.

[17] 杨凯,赵海,刘强,等.正常成人骶1椎弓根解剖学测量与临床应用[J].中国矫形外科杂志,1998,5(4):320-321.

[18] 严军,郭春,唐天驷,等.经椎弓根椎体间内固定治疗腰椎滑脱症的应用解剖学研究[J].骨与关节损伤杂志, 1996,11(5):278-281

[19] Kaptanoglu E, Okutan O, Tekdemir I. Closed posterior superior iliac spine impeding pediculocorporeal S-1 screw insertion.J Neurosurg. 2003;99:229-234.

[20] Lehman RA Jr, Kuklo TR, Belmont PJ Jr, et al. Advantage of pedicle screw fixation directed into the apex of the sacral promontory over bicortical fixation: abiomechanical analysis. Spine (Phila Pa 1976). 2002;27(8):806-811.

[21] De Peretti F, Argenson C, Bourgeon A, et al. Anatomic and experimental basis for the insertion of a screw at the first sacral vertebra. Surg Radiol Anat. 1991;13(2):133-137.

[22] Arman C, Naderi S, Kiray A,et al.The human sacrum and safe approaches for　screw placement. J Clin Neurosci. 2009;16(8):1046-1049.

[23] Inoue M,Inoue G, Ozawa T,et al.L5 spinal nerve injury caused by misplacement of outwardly-inserted S1 pedicle screws. Eur Spine J. 2013;22(Suppl3):S461-S465.

[24] Kim YY ,Ha KY ,Kim SI,et al．A study of sacral anthropometry to determine S1 screw placement for spinal lumbosacral fixation in the Korean population. Eur Spine J. 2015;24 (11):2525-2529.

[25] 邓亦奇,许中豹,罗利芳,等.骶骨椎弓根螺钉治疗骶骨骨折的数字解剖学[J].研究中华创伤杂志,2015,31(9):845-849.

[26] Krag MH. Biomechanic of transpediclespinal fixation in weinstein JN and Wiesel SW( eds). The lumbar spine. Philadelphia. W B Saunders, 1990: 916-940.

[27] Ohlin A, Karlsson M, Duppe H, et al. Complication aftertrans pedicular stabilization of the spine Asurvivorshipanalysis of 163 cases. Spine. 1994;19: 2774- 2778.

[28] 王正,沈国平,陈伟兵,等. 椎弓根螺钉内固定稳定性的生物力学测试[J]. 医用生物力学,2002,17(2):80-83

[29] Miyawaki S, Tomonari H, Yagi T, et al. Development of a novel spike-like auxiliary skeletal anchorage device to enhance miniscrew stability. Am J Orthod Dentofacial Orthop. 2015;148(2):338-344.

[30] Chen Z, Wu B, Zhai X,et al. Basic study for ultrasound-based navigation for pedicle screw insertion using transmission and backscattered methods.PLoS One. 2015;10(4):e0122392.

[31] Amaritsakul Y, Chao CK, Lin J. Comparison study of the pullout strength of conventional spinal pedicle screws and a novel design in full and backed-out insertions using mechanical tests. Proc Inst Mech Eng.2014;228(3):250-257.
