New application of Endobutton suspension plate in hallux
valgus deformity

doi:10.3969/j.issn.2095-4344.2471

Abstract

Abstract:

BACKGROUND: Hallux valgus is a complex deformity. There is no gold standard for the treatment of hallux valgus. Osteotomy is highly recommended at present, but there are many complications. Whether we can correct hallux valgus without osteotomy is a new attempt in our group.

OBJECTIVE: To explore the efficacy of an Endobutton suspension plate treatment for hallux valgus deformity.

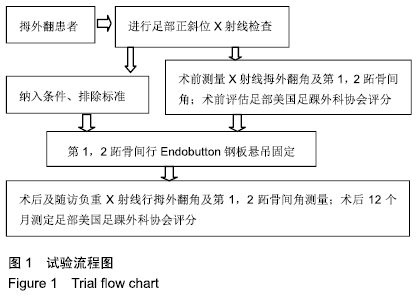

METHODS: From April 2013 to August 2018 at Department of Orthopedics, Changzhou Tumor Hospital Affiliated to Soochow University, 26 cases of hallux valgus were treated with Endobutton suspension plate, without osteotomy. All patients signed the informed consents and the study was approved by the hospital ethics committee. The hallux valgus angle and angle between metatarsal 1 and 2 were detected preoperatively and postoperatively. The American Orthopaedic Foot & Ankle Society score was detected at 12 months postoperatively.

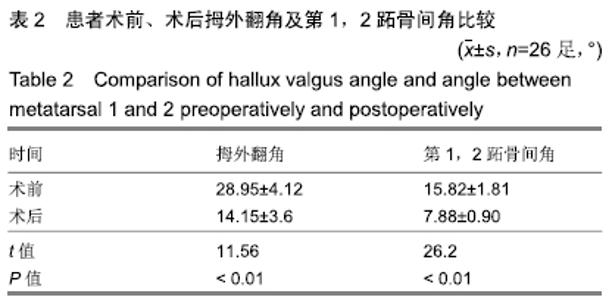

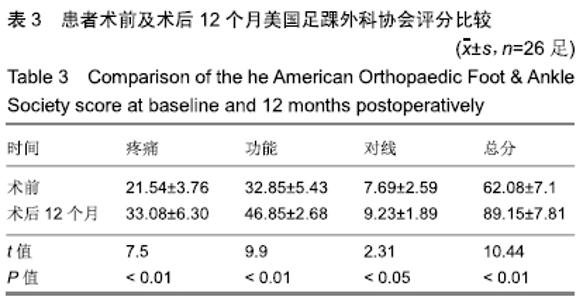

RESULTS AND CONCLUSION: (1) All patients were followed up from 8 to 38 months. (2) The hallux valgus angle (28.95±4.12)° and angle between metatarsal 1 and 2 (15.82±1.81)° preoperatively were significantly decreased to (14.15±3.60)° and (7.88±0.90)° postoperatively (both P < 0.01). (3) The American Orthopaedic Foot & Ankle Society score at 12 months after surgery (89.15±7.81) was significantly higher than that at baseline (62.08±7.10) (P < 0.01). (4) In summary, Endobutton suspension fixation between metatarsal 1 and 2 for treating hallux valgus is a viable treatment option.

Key words:

hallux valgus, Endobutton suspension plate, osteotomy, hallux valgus angle, angle between metatarsal 1 and 2, follow up

CLC Number:

Li Guijun, Huang Kai, An Jinyu, Zhang Lei, Gao Libo, Gao Lei, Wu Yixiong, Lu Jiajun. New application of Endobutton suspension plate in hallux valgus deformity [J]. Chinese Journal of Tissue Engineering Research, 2020, 24(9): 1365-1370.

Figures/Tables 5

References

[1] CASSINELLI SJ, HERMAN R, HARRIS TG. Distal metatarsal osteotomy for moderate to severe hallux valgus. Foot Ankle Int. 2016;37(10):1137-1145.
[2] GALLENTINE JW, DEORIO JK, DEORIO MJ.Bunion surgery using locking-plate fixation of proximal metatarsal chevron osteotomies.Foot Ankle Int. 2007;28(3):361-368.
[3] EASLEY ME, TRNKA HJ.Current concepts review:hallux valgus partII:operative treatment. Foot Ankle Int. 2007;28(6): 748-758.
[4] BELCZYK R, STAPLETON JJ, GROSSMAN JP, et al. Complications and revisional hallux valgus surgery. Clin Podiatr Med Surg. 2009;26(3):475-484.
[5] SHARIFF R, ATTAR F, OSARUMWENE D, et al.The risk of avascular necrosis following chevron osteotomy:a prospective study using bone scintigraphy.Acta Orthop Belg. 2009;75(2):234-238.
[6] POTENZA V, CATERINI R, FARSETTI P, et al. Chevron osteotomy with lateral release and adductor tenotomy for hallux valgus.Foot Ankle Int. 2009;30(6):512-516.
[7] HOLMES GB JR, HSU AR.Correction of intermetatarsal angle in hallux valgus using small suture button device. Foot Ankle Int. 2013;34(4):543-549.
[8] GEORGE B, HOLMES JR MD. Correction of hallux valgus deformity using the mini TightRope device. Foot Ankle Sur. 2008;7(1):9-16.
[9] WEST BC. Mini TightRope system for hallux abducto valgus deformity: a discussion and case report. J Am Podiatr Med Assoc,2010;100(4):291-295.
[10] BAIN GI, PREM H, HEPTINSTALL RJ, et al. Repair of distal biceps tendon rupture: a new technique using the Endobutton. J Shoulder Elbow Surg. 2000;9(2):120-126.
[11] WALZ L, SALZMANN GM, FABBRO T, et al. The anatomic reconstruction of acromioclavicular joint dislocations using 2 TightRope devices: a biomechanical study. Am J Sports Med. 2008;36(12):2398-2406.
[12] WANG CC, LIN LC, HSU CK, et al. Anatomic reconstruction of neglected Achilles tendon rupture with autogenous pero-neal longus tendon by EndoButton fixation. J Trauma. 2009;67(5):1109-1112.
[13] LIM YW. Triple endobutton technique in acromioclavicular joint reduction and reconstruction. Ann Acad Med Singapore. 2008;37(4):294-299.
[14] DE LAVIGNE C, RASMONT Q, HOANG B. Percutaneous double metatarsal osteotomy for correction of severe hallux valgus deformity. Acta Orthop Belg. 2011;77(4): 516-521.
[15] KITAOKA HB, ALEXANDER IJ, ADELAAR RS, et al. Clinical rating systems for the ankle-hindfoot, midfoot, hallux, and lesser toes. Foot Ankle Int. 1994;15(7):349-353.
[16] BIA A, GUERRA-PINTO F, PEREIRA BS, et al. Percutaneous osteotomies in hallux valgus: a systematic review. J Foot Ankle Surg. 2018;57(1):123-130.
[17] COETZEE JC. Scarf osteotomy for hallux valgus repair:the dark side. Foot Ankle Int. 2003;24:29-33.
[18] [WÜLKER N, MITTAG F. The treatment of hallux valgus. Dtsch Arztebl In. 2012;109(49):857-867.
[19] TÓTH K, HUSZANYIK I, KELLERMANN P, et al. The effect of first ray shortening in the development of metatarsalgia in the second through fourth rays after metatarsal osteotomy. Foot Ankle Int. 2007;28(1):61-63.
[20] Goldberg A, Singh D. Treatment of shortening following hallux valgus surgery. Foot Ankle Clin. 2014;19(2):309-316.
[21] KEOGH P, JAISHANKER JS, O'CONNELL RJ, et al. The modified Wilson osteotomy for hallux valgus. Clin Orthop Relat Res. 1990;255:263-267.
[22] PRIESKORN DW, MANN RA, FRITZ G. Radiographic assessment of the second metatarsal: measure of first ray hypermobility. Foot Ankle Int. 1996;17(6):331-333.
[23] LEE KT, YOUNG K. Measurement of first-ray mobility in normal vs. hallux valgus patients. Foot Ankle Int. 2001; 22(12):960-964.
[24] COUGHLIN MJ, JONES CP. Hallux valgus and first ray mobility. A prospective study. J Bone Joint Surg Am. 2007; 89A:1887-1898.
[25] FULLER EA. The windlass mechanism of the foot:a mechanical model to explain pathology. J Am Podiatr Med Assoc. 2000;90:35-46.
[26] SHRUM DG. Ligamentation of the adductor hallucis tendon in bunionectomy. J Am Podiatr Med Assoc. 2002;92(9):512-515.
[27] ELATTAR M, NAGGAR A E, FAHMY SAMIR F, et al. Short term results of osteotomy-sparing technique in management of moderate hallux valgus using TightRope system. J Orthop. 2018;15(2):721-725.
[28] UYGUR E, OZKAN NK, AKAN K, et al. A comparison of Chevron and Lindgren-Turan osteotomy techniques in hallux valgus surgery: a prospective randomized controlled study. Acta Orthop Traumatol Turc. 2016;50(3):255-261.
[29] SINGH D, BIZ C, CORRADIN M, et al. Comparison of dorsal and dorsomedial displacement in evaluation of first ray hypermobility in feet with and without hallux valgus. Foot Ankle Surg. 2016;22(2):120-124.
[30] GONZALEZ TA, SMITH JT, BLUMANE M, et al. Treatment of hallux valgus deformity using a suture button device: a preliminary report. Foot Ankle Orth. 2018;3(4):1-7.
[31] WAGNER E, ORTIZ C, TORRES K, et al. Cost effectiveness of different techniques in hallux valgus surgery. Foot Ankle Surg. 2016;22(4):259-264.
[32] GRLE M, VRGOC G, BOHACEK I, et al. Surgical treatment of moderate hallux valgus: a comparison of distal chevron metatarsal osteotomy with and without lateral soft-tissue release. Foot Ankle Spec.2017;10(6):524-530.
[33] CARL HD, PFANDER D, SWOBODA B. Assessment of plantar pressure in forefoot relief shoes of different designs. Foot Ankle Int.2006;27(2):117-120.
[34] CHAO J. Deep vein thrombosis in foot and ankle surgery. Orthop Clin North Am. 2016;47(2):471-475.
[35] WU DY. Syndesmosis procedure:a non-osteotomy approach to metatarsus pri-mus varus correction. Foot Ankle Int. 2007; 28:1000-1006
[36] PONNAPULA P, WITTOCK R. Application of an interosseous suture and button device for hallux valgus correction:a review of outcomes in a small series. J Foot Ankle Surg. 2010;49(2): 159.e21-26.
[37] KAYIAROS S, BLANKENHORN BD, DEHAVEN J, et al. Correction of metatarsus primus varus associated with hallux valgus defor-mity using the Arthrex Mini TightRope: a report of 44 cases. Foot Ankle Spec. 2011;4(4):212-217.
[38] SPENCER EE JR. Treatment of grade III acromioclavicular joint injuries: a systematic review. Clin Orthop Relat Res. 2007;455:38-44.
