Correlation of parameters of lordosis type cervical spine
saggital plane in asymptomatic adults

doi:10.3969/j.issn.2095-4344.2428

Abstract

Abstract:

BACKGROUND: Normal sagittal balance of cervical spine is the key to cervical spine orthopedic surgery. As the complexity of the anatomical structure and physiological function of the cervical spine, accurate measurement of sagittal balance parameters and correlation between parameters become an important reference for preoperative planning and postoperative evaluation of curative effect. Current research focuses on patients with clinical symptoms of cervical syondylosis.

OBJECTIVE: To investigate the correlation of parameters of lordosis type cervical spine saggital plane in asymptomatic adults.

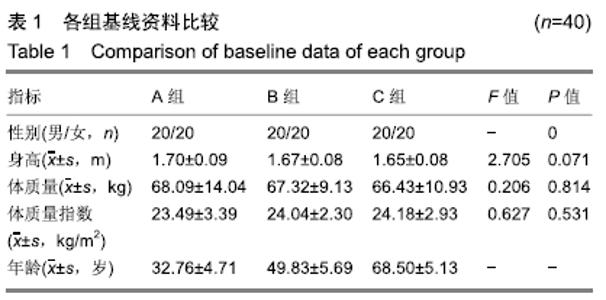

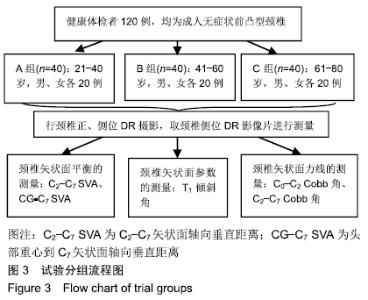

METHODS: Cervical anteroposterior and lateral DR images of 120 adult patients with asymptomatic lordosis type cervical spine were retrospectively analyzed. The subjects were divided into three groups according to age: group A (21-40 years), group B (41-60 years), and group C (61-80 years). The sagittal parameters of the cervical spine were measured, including C₂-C₇ sagittal vertical axis (C₂-C₇SVA), central of gravity to C₇ sagittal vertical axis (CG-C₇ SVA), T₁ slope, C₀-C₂ Cobb angle and C₂-C₇ Cobb angle. The correlation between different imaging parameters and age was analyzed. This study was approved by the Ethics Committee, First Hospital of Shijiazhuang and Second Hospital of Hebei Medical University. All subjects signed the informed consent.

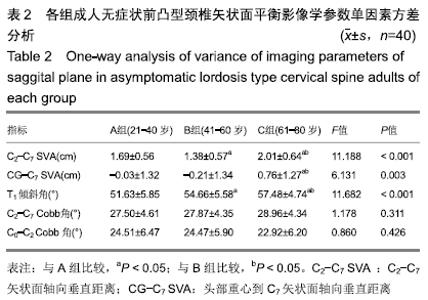

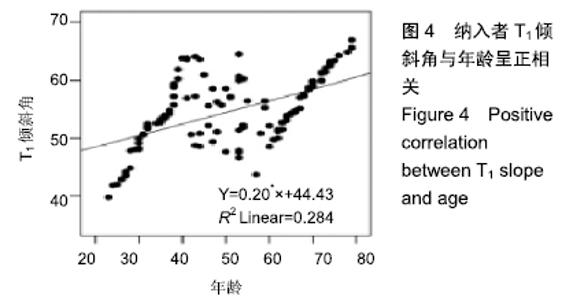

RESULTS AND CONCLUSION: (1) C₂-C₇ SVA (F=11.188, P < 0.001), CG-C₇ SVA (F=6.132, P=0.003) and T₁ slope (F=11.682, P < 0.001) were significantly different among different groups. There was no significant difference in C₀-C₂ Cobb angle (F=1.178, P=0.311) and C₂-C₇ Cobb angle (F=0.860, P=0.426). (2) T₁ slope was (51.63±5.85)°, (54.66±5.58)° and (57.48±4.74)° in groups A, B and C, respectively. Linear correlation analysis showed that T₁ slope was positively correlated with age (r=0.533, P < 0.001). T1 slope was positively correlated with C₂-C₇ Cobb angle (r=0.561, P < 0.001). These results indicated that T₁ slope increased with age in asymptomatic cervical lordosis adults. Moreover, T₁slope was positively correlated with age.

Key words: cervical spine, sagittal balance, imaging, correlation

CLC Number:

Cao Bin, Zuo Yuqiang, Li Cunrui, Kang Weifeng, Yu Haiquan, Su Jingyang. Correlation of parameters of lordosis type cervical spine saggital plane in asymptomatic adults[J]. Chinese Journal of Tissue Engineering Research, 2020, 24(6): 898-902.

Figures/Tables 5

References

[1] SCHEER JK, TANG JA, SMITH JS, et al.Cervical spine alignment,sagittal deformity,and clinical implications:a review.J Neurosurg Spine.2013;19(2):141-159.
[2] 李翔宇,孙祥耀,鲁世保,等.颈椎矢状位序列参数对脊髓型颈椎病临床疗效的影响[J].中国骨与关节杂志,2018,11(7):867-872.
[3] DIEBO BG, FERRERO E, LAFAGE R, et al.Recruitment of compensatory mechanisms in sagittal spinal malalignment is age and regional deformity depentdeng:a full-standing axis analysis of key radiographical parameters.Spine.2015;40(9):642-649
[4] 马钧峰,程招军,江泽华,等.C7倾斜角与短节段颈前路椎间盘切除融合术后颈椎矢状位参数的影像学相关性分析[J].中国修复重建外科杂志,2019,33(7):877-882.
[5] CHEN Y, LUO J, PAn Z, et al.The change of cervical spine alignment along with aging in asymptomatic population:a preliminary analysis.Eur Spine.2017;26(9):2363-2371.
[6] 黄清奇,刘少强,梁珪清.颈椎矢状面力线与平衡的临床意义研究进展[J].中华外科杂志,2018,56(8):634-638.
[7] 邓元,倪斌.颈椎矢状序列测量方法的研究进展[J].中国脊柱脊髓杂志, 2014,24(7):655-659.
[8] OHARA A, MIYAMOTO K, NAGANWA T, et al.Reliabilities of and correlations among five standard methods of assessing the sagittal alignment of the cervical spine.Spine(Phila Pa 1976).2006; 31(22):2585-2591,2592.
[9] WENG C, WANG J, TUCHMAN A, et al.Influence of T1 slope on the cervical sagittal balance in degenerative cervical spine:An analysis using kinematic MRI.Spine(Phila Pa 1976).2016;41(3): 185-190.
[10] 陈屹伟.老化对无症状人群颈椎矢状位序列的影响[D].南昌:南昌大学, 2018:1.
[11] PATWARDHAN AG, KHAYATZADEH S, HAVEY RM, et al.Cervical sagittal balance:a biomechanical perspective can help clinical practice.Eur Spine J.2018;27(Suppl 1):25-38.
[12] PROTOPSALTIS TS, SCHEER JK, TERRAN JS, et al.How the neck affects the back:changes in regional cervical sagittal alignment correlate to HRQOL improvement adult thoracolumbar deformity patients at 2-year follow-up.J Neurosurg Spine.2015; 23(2):153-158.
[13] YOUN MS, SHIN JK, GOH TS, et al.Relationship between cervical sagittal alignment and health-related quality of life in adolescent idiopathic scoliosis.Eur Spine J.2016;25(10):3114-3119.
[14] 刘湘,龙耀武,王锋,等.颈椎病严重程度与颈椎曲度相关性的影像学研究[J].临床放射学杂志,2018,37(6):1021-1024.
[15] CHENG J, LIU P, SUN D ,et al.Correlation of cervical and thoratic inlet parameters by MRI and radiography in patients with cervical spondylosis.Medicine(Baltimore).2019;98(7):e14393.
[16] BUELL TJ, BUCHHOLZ AL, QUINN JC, et al.Importance of sagittal alignment of the cervical spine in the management of degenerative cervical myelopathy.Neurosurg Clin N Am.2018; 29(1):69-82.
[17] OSHINA M, TANAKA M, OSHIMA Y, et al.Correlateion and differences in cervical alignment parameters between cervical radiographs and magnetic resonance images.Eur Spine.2018; 27(6):1408-1415.
[18] 赵文奎,于淼,韦峰,等.无症状成人颈椎矢状位曲度分析及其与全脊柱矢状位参数的关系[J].中国脊柱脊髓杂志,2015,25(3):231-238.
[19] SONG J, ZHANG YX, SONG KH, et al. Risk factors of adjacent segment disease after anterior cervical arthrodesis:a retrospective study of sagittal measuremnet of thoracic inlet parameters.World Neurosurg.2018;114:e1094-1100.
[20] 张黎龙,程招军,崔子健,等.MRI测量脊髓型颈椎病患者矢状位参数相关性分析[J].中国修复重建外科杂志,2017,31(4):451-454.
[21] YOKOYAMA K, KAWANISHI M, YAMADA M, et al.Age-related variations in global spinal and sagittal balance in asymptomatic Japanese adults.Neurol Res.2017;39(5):414-418.
[22] LING FP, CHEVILOTTE T, LEGLISE A, et al.Which parameters are relevant in sagittal balance analysis of the cervical spine?A literature review.Eur Spine J.2018;27(Suppl 1):8-15.
[23] AILON T, SHAFFREY CL, LENKE LG, et al.Progressive spinal kyphosis in the aging population.Neurosurgery.2015;77 Suppl 4: S164-172.
[24] GOH S, TAN C, PRICE RI, et al.Influence of age and gender on thoracic vertebral body shape and disc degeneration:an MR investigation of 169 cases.J Anat.2000;197 Pt4:647-657.
[25] 刘国臻,刘磊,王运涛,等.脊髓型颈椎病术前矢状面影像学参数特点及相互关系[J].中国矫形外科杂志,2018,26(21):1992-1996.
[26] BRONSON WH, MOSES MJ, PROTOPSALTIS TS.Correction of dropped head deformity through combined anterior and posterior osteotomies to restore horizontal gaze and improve sagittal alignment.Eur Spine J.2018;27(8):1992-1999.
