Primary loading causes bone cement-stem interface debonding injury

doi:10.3969/j.issn.2095-4344.2016.08.003

Chinese Journal of Tissue Engineering Research ›› 2016, Vol. 20 ›› Issue (8): 1081-1088.doi: 10.3969/j.issn.2095-4344.2016.08.003

Previous Articles Next Articles

Primary loading causes bone cement-stem interface debonding injury

Zhang Lan-feng¹, Ge Shi-rong¹, Liu Hong-tao², Guo Kai-jin³

¹School of Mechatronic Engineering, China University of Mining and Technology, Xuzhou 221116, Jiangsu Province, China; ²School of Material Science and Engineering, China University of Mining and Technology, Xuzhou 221116, Jiangsu Province, China; ³Department of Joint Surgery, the Affiliated Hospital of Xuzhou Medical College, Xuzhou 221000, Jiangsu Province, China

Received:2015-12-09 Online:2016-02-19 Published:2016-02-19
Contact: Zhang Lan-feng, School of Mechatronic Engineering, China University of Mining and Technology, Xuzhou 221116, Jiangsu Province, China
About author:Zhang Lan-feng, Studying for doctorate, School of Mechatronic Engineering, China University of Mining and Technology, Xuzhou 221116, Jiangsu Province, China
Supported by:
a grant supported by the Priority Academic Program Development of Jiangsu Higher Education Institutions; Qinglan Foundation from Jiangsu Province of China, No. 04150006; the Graduate Education Innovation Project in Jiangsu Province of China, No. KYLX_1376; the Scientific Research Project of Health and Family Planning Commission of Jiangsu Province of China, No. H201528

Abstract

Abstract:

BACKGROUND: The main reason for the postoperative loosening of cemented prosthesis is interfacial debonding and bone cement internal damage. Most studies have suggested that both of them occur in the process of fatigue damage, however, little is reported on primary loading that results in the initial damage to the bone cement-stem interface and inside of bone cement.
OBJECTIVE: To study the mechanical properties of bone cement-stem interface, and the effect of crack formation in bone cement on interfacial loosening.

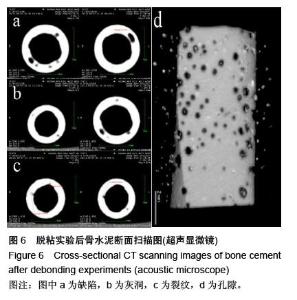

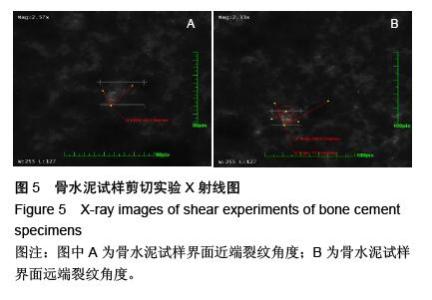

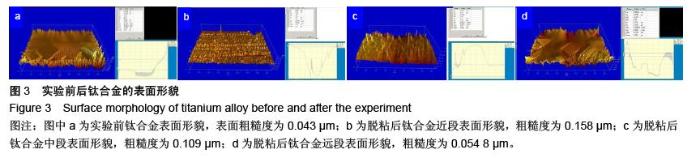

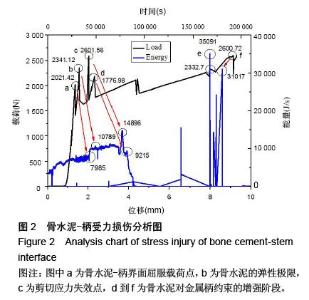

METHODS: The cement-titanium alloy handle implant components were prepared. The maximum adhesive force of bone cement-stem interface was measured using push-in experiment. The cement damage and crack in the process of bone cement-handle interfacial debonding were monitored online using acoustic emission tester. The non-destructive testing on the metal surface and the inner layer of bone cement cylinder was conducted using three-dimensional surface profiler, ultrasonic microscopy and X-ray detector.

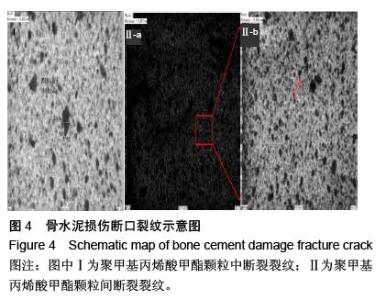

RESULTS AND CONCLUSION: The online monitoring results of debonding experiment and acoustic emission tester demonstrated that the initial damage of bone cement initiated in the primary loading of patients after operation, rather than at fatigue damage stage. Bone cement coffin caused cracks initiation mainly due to the combination effect of radial and axial stress. The bone cement-stem interfacial shear lag effect could not prevent the gradual extension of interface and inner coffin crack from top to bottom. The bone cement defects formed in solidification process was likely to affect the mechanical properties of the material, and eventually induced the crystal face and macromolecular chain fractures, forming silver striated cracks and leading component failure.

中国组织工程研究杂志出版内容重点：生物材料；骨生物材料; 口腔生物材料; 纳米材料; 缓释材料; 材料相容性；组织工程

Zhang Lan-feng, Ge Shi-rong, Liu Hong-tao, Guo Kai-jin . Primary loading causes bone cement-stem interface debonding injury[J]. Chinese Journal of Tissue Engineering Research, 2016, 20(8): 1081-1088.

Figures/Tables 5

References

[1] Canales V,Panisello JJ,Herrera A,et al.Extensive osteolysis caused by polyethylene particle migration in an anatomical hydroxyapatite-coated hip prosthesis: 10 years' follow-up.J Arthroplasty. 2010;25(7):1115-1124.

[2] Andreykiv A,Janssen D,Nelissen R,et al.On stabilization of loosened hip stems via cement injection into osteolytic cavities.Clin Biomech.2012;27:807-812.

[3] Wang T,Pelletier MH,Bertollo N,et al.Cement-implant interface contamination: possible reason of inferior clinical outcomes for rough surface cemented stems. Open Orthop J. 2013; 7: 250-257.

[4] Cip J,von Strempel A,Bach C,et al.Implication of Femoral Stem on Performance of Articular Surface Replacement (ASR) XL Total Hip Arthroplasty.J Arthroplasty 2014;29:2127-2135.

[5] Clauss M,Luem M,Ochsner PE,et al.Fixation and loosening of the cemented Muller straight stem: a long-term clinical and radiological review.J Bone Joint Surg Br. 2009; 91(9): 1158-1163.

[6] Thakore M,Ledger R,Yanoso-Scholl L,et al. Nondestructive evaluation of bone cement and bone cement/metal interface failure.J Biomed Mater Res B Appl Biomater. 2010; 92(2): 420-429.

[7] Hunt S,Stone C,Seal S.Timing of femoral prosthesis insertion during cemented arthroplasty: cement curing and static mechanical strength in an in vivo model.Can J Surg. 2011;54(1):33-38.

[8] Gammoudi K,Kharrat M,Dammak M.Experimental and Numerical Analyses of the Pull-out Response of a Steel Post/Bovine Bone Cementless Fixation. J Bionic Eng. 2012;9:501-507.

[9] Sevimay M, Turhan F, Kilicarslan M, et al. Three- dimensional finite element analysis of the effect of different bone quality on stress distribution in an implant-supported crown. J Prosthet Dent.2005;93: 227-234.

[10] Sangiorgio SN,Longjohn DB,Dorr LD,et al.Challenges in relating experimental hip implant fixation predictions to clinical observations.J Biomech.2011;44:235-243.

[11] Haq RU,Park KS,Yang HK,et al.Displacement of a cemented femoral stem during attempted closed reduction of a dislocated total hip arthroplasty.J Arthroplasty. 2010; 25:658.e11-e15.

[12] Crowninshield R.Femoral hip implant fixation within bone cement.Oper Tech Orthop.2001;11:296-299.

[13] Akiyama H,Yamamoto K,Kaneuji A,et al.In-vitro characteristics of cemented titanium femoral stems with a smooth surface finish.J Orthop Sci. 2013;18:29-37.

[14] Hosein YK,King GJ,Dunning CE.The effect of stem surface treatment and material on pistoning of ulnar components in linked cemented elbow prostheses. J Shoulder Elbow Surg.2013;22(9):1248-1255.

[15] Lin DJ,Ju CP,Huang SH,et al.Mechanical testing and osteointegration of titanium implant with calcium phosphate bone cement and autograft alternatives.J Mech Behav Biomed Mater. 2011;4:1186-1195.

[16] Slane J,Vivanco J,Ebenstein D,et al.Multiscale characterization of acrylic bone cement modified with functionalized mesoporous silica nanoparticles.J Mech Behav Biomed Mater. 2014;37:141-152.

[17] Méndez J,Aguilar MR,Abraham GA,et al.New acrylic bone cements conjugated to vitamin E: curing parameters, properties, and biocompatibility.J Biomed Mater Res. 2002;62(2):299-307.

[18] Koh I,López A,Helgason B,et al.The compressive modulus and strength of saturated calcium sulphate dihydrate cements: Implications for testing standards. J Mech Behav Biomed Mater.2014;34:187-198.

[19] Pal B,Gupta S,New AM.Influence of the change in stem length on the load transfer and bone remodelling for a cemented resurfaced femur.J Biomech. 2010;43: 2908-2914.

[20] Digas G,Kärrholm J.The Implant-Cement Interface in Total Hip Arthroplasty. Bone-Implant Interface in Orthopedic Surgery: Springer;2014:35-54.

[21] Hung JP,Chen JH,Chiang HL,et al.Computer simulation on fatigue behavior of cemented hip prostheses: a physiological model.Comput Methods Programs Biomed. 2004; 76 (2): 103-113.

[22] Pérez M,Nuño N,Madrala A,et al.Computational modelling of bone cement polymerization: temperature and residual stresses.Comput Biol Med.2009; 39(9):751-759.

[23] Banaszkiewicz PA.The Initiation of Failure in Cemented Femoral Components of Hip Arthroplasties.Classic Papers in Orthopaedics: Springer;2014:81-83.

[24] Huang XH.Investigations on modeling methodologies for accurate bone FE analysis and on the fracture and fatigue damage of bone-cemen [Doctoral dissertation]: Shandong University;2012.

[25] Damron LA,Kim DG,Mann KA.Fatigue debonding of the roughened stem–cement interface: effects of surface roughness and stem heating conditions. J Biomed Mater Res B Appl Biomater. 2006;78(1):181-188.

[26] Moreo P,Perez M,García-Aznar J,et al.Modelling the mixed-mode failure of cement–bone interfaces.Eng Fract Mech.2006;73:1379-1395.

[27] Afsharpoya B,Barton D,Fisher J,et al.Cement mantle stress under retroversion torque at heel-strike.Med Eng Phys 2009;31:1323-1330.

[28] Flitti A,Ouinas D,Bouiadjra BB,et al.Effect of the crack position in the cement mantle on the fracture behavior of the total hip prosthesis.Comput Mater Sci. 2010;49: 598-602.

[29] Ruther C,Nierath H,Ewald H,et al.Investigation of an acoustic-mechanical method to detect implant loosening.Med Eng Phys.2013;35:1669-1675.

[30] Lin CL,Kuo WC,Chang YH,et al.Examination of ceramic/enamel interfacial debonding using acoustic emission and optical coherence tomography. Dent Mater. 2014;30:910-916.

[31] Qi G,Li J,Fan M,et al.Assessment of statistical responses of multi-scale damage events in an acrylic polymeric composite to the applied stress.Probabil Eng Mech.2013;33:103-115.

[32] Vayron R,Karasinski P,Mathieu V,et al.Variation of the ultrasonic response of a dental implant embedded in tricalcium silicate-based cement under cyclic loading.J Biomech.2013;46:1162-4468.

[33] Roques A,Browne M,Thompson J,et al.Investigation of fatigue crack growth in acrylic bone cement using the acoustic emission technique.Biomaterials. 2004;25: 769-778.

[34] Roques A,Browne M,Taylor A,et al. Quantitative measurement of the stresses induced during polymerisation of bone cement. Biomaterials. 2004;25:4415-4424.

[35] Sinnett-Jones P,Browne M,Ludwig W,et al. Microtomography assessment of failure in acrylic bone cement. Biomaterials. 2005;26:6460-6466.

[36] Mavrogordato M,Taylor M,Taylor A,et al. Real time monitoring of progressive damage during loading of a simplified total hip stem construct using embedded acoustic emission sensors. Med Eng Phys. 2011;33(4): 395-406.
