Establishment of a three-dimensional finite element model of transmission straight wire appliance

doi:10.3969/j.issn.2095-4344.2013.33.007

Abstract

Abstract:

BACKGROUND: With the development of modern orthodontics, to invent an efficient appliance is the focus in recent studies. Transmission straight wire appliance was born on this background. This appliance can accelerate occlusion and shorten treatment duration. The relationship between distal width and angulation of gable bends of main arch wire needs to study in depth.
OBJECTIVE: To establish three-dimensional finite element model of transmission straight wire appliance with better biological and mechanical similarity, and to obtain the relationship between distal width and angulation of gable bend of main arch wire.
METHODS: By using scanning of spiral CT with 64 rows, the sectional image data in DICOM format of maxillary dentition and maxillae of the volunteers (Class Ⅱ, division 1) were obtained. With the help of Ansys workbench 13.0, Mimics 10.01, Unigraphics NX and Geomagic Studio 8.0 softwares, the three-dimensional finite element model including transmission straight wire appliance, bend, Australian Orthodontic Wire, maxillae, maxillary tooth and periodontal ligament was established in Windows XP Service Pack 3 system.

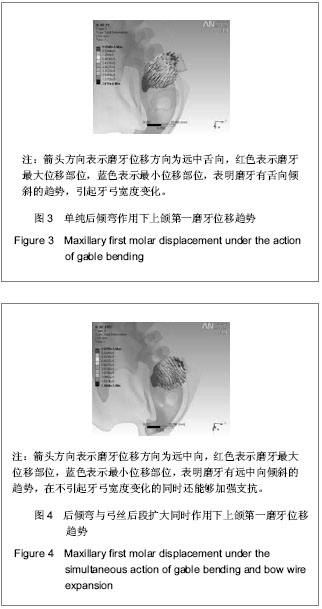

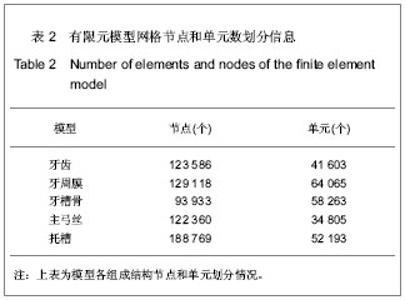

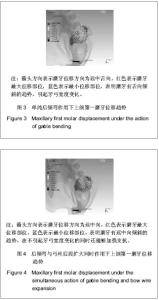

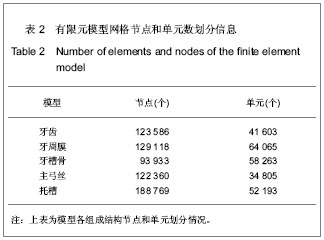

RESULTS AND CONCLUSION: A three-dimensional finite element model of transmission straight wire appliance was established, which consisted of 250 929 elements and 657 766 nodes. Furthermore, three-dimensional finite element model had higher geometric similarity and mechanical similarity, as well as the advantages of adding or subtracting components according to the requirement of the research. The model was conductive to analyze the mechanical system of transmission straight wire appliance and guide the clinical application and appliance modification.

CLC Number:

R318

Ding Rui, Man Yun-na, Wu Pei-ling, Wang Wei. Establishment of a three-dimensional finite element model of transmission straight wire appliance[J]. Chinese Journal of Tissue Engineering Research, doi: 10.3969/j.issn.2095-4344.2013.33.007.

Figures/Tables 2

References

[1] 林久祥.矫正器及技术进展[J].中国实用口腔科杂志, 2009,2(1): 5-8.

[2] 李颖惠.点传动直丝弓技术打开咬合的临床效果[J].临床医学, 2012,32(8):92-93.

[3] 彭友俭,程祥荣,胡志运.三维有限元法分析上颌支抗磨牙及其支持组织的生物力学[J].口腔医学纵横杂志,1999,15(4):230-233.

[4] 郭煜,李东,李永明.上颌前牙段Tip-Edge正畸矫治系统三维有限元模型的建立[J].实用口腔医学杂志,2010,26(3):380-383.

[5] 高辉,李永明,曾照斌,等.逆向工程技术建立Tip-Edge矫治系统下颌尖牙及牙周组织三维有限元模型[J].口腔医学研究,2009, 25(2): 61-63.

[6] 张翼,夏熹,邓锋,等.Tip-Edge力系后倾曲对上颌磨牙初始位移影响的三维有限元分析[J].华西口腔医学杂志,2012,30(3): 329- 332.

[7] 贾玉龙,王旭霞,刘舒扬,等.牵引上颌埋伏尖牙移动过程的动态模拟[J].临床口腔医学杂志,2011,27(8):487-489.

[8] 卢红飞,艾虹等.牙齿牙周矫治装置三合一三维有限元模型的建立[J].中国组织工程研究与临床康复,2010,14(22):4010-4013 .

[9] 郭冬梅,常少海,胡玲玲,等.微种植体复合力作用下竖直倾斜磨牙牙周膜的应力分析[J].中国组织工程研究,2012,16(46):8662- 8666.

[10] Liang W, Rong Q, Lin J, et al. Torque control of the maxillary incisors in lingual and labial orthodontics: a 3-dimensional finite element analysis. Am J Orthod Dentofacial Orthop. 2009; 135(3):316-322.

[11] Yu W, Park HS, Kyung HM, et al. Dynamic simulation of the self-tapping insertion process of orthodontic microimplants into cortical bone with a 3-dimensional finite element method. Am J Orthod Dentofacial Orthop. 2012;142(6):834-841.

[12] Huang YW, Chang CH, Wong TY, et al. Bone stress when miniplates are used for orthodontic anchorage: finite element analysis. Am J Orthod Dentofacial Orthop. 2012;142(4): 466-472.

[13] Ammar HH, Ngan P, Crout RJ, et al. Three-dimensional modeling and finite element analysis in treatment planning for orthodontic tooth movement. Am J Orthod Dentofacial Orthop. 2011;139(1):e59-71.

[14] 卢燕勤,高雪梅,韩景芸,等.直丝弓矫治器滑动法关闭间隙的三维非线性有限元研究[J].天津医药,2010,38(6):461-463.

[15] 傅民魁,林久祥.口腔正畸学[M].北京:北京大学医学出版社. 2005.

[16] State Council of the People's Republic of China. Administrative Regulations on Medical Institution. 1994-09-01.

[17] 孙力,李鸿波,储冰峰.牙颌三维有限元建模方法的研究进展[J].口腔颌面修复学杂志,2010,11(1):52-54.

[18] 黄倩倩,邱靓星,邓锋,等.Tip- Edge差动直丝弓矫治力系的三维有限元模型的建立[J].激光杂志,2011,32(3):61-62.

[19] 潘燕环,唐亮,马达.用子模型方法进行牙周膜应力分析[J].实用口腔医学杂志,2005,21(4):445-447.

[20] Wagner A, Krach W, Schicho K, et al. A 3-dimensional finite-element analysis investigating the biomechanical behavior of the mandible and plate osteosynthesis in cases of fractures of the condylar process. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2002;94(6):678-686.

[21] Sung SJ, Baik HS, Moon S, et al. A comparative evaluation of different compensating curves in the lingual and labial techniques using 3D FEM. Am J Orthod Dentofacial Orthop. 2003;123(4):441-450.

[22] 苏杰华,张端强,许永吉.上颌前牙及直丝弓矫治器三维有限元模型的建立[J]福建医科大学学报,2007,41(4):354-357.

[23] Escott EJ, Rubinstein D. Free DICOM image viewing and processing software for your desktop computer: what's available and what it can do for you. Radiographics. 2003; 23(5):1341-1357.

[24] Li P, Mao J, Peng Z. Three-dimensional finite element analysis of the mechanical stress on root from orthodontic tooth movement by sliding mechanics. J Huazhong Univ Sci Technolog Med Sci. 2007;27(6):745-747.

[25] Du JK, Lin WK, Wang CH, et al. FEM analysis of the mandibular first premolar with different post diameters. Odontology. 2011;99(2):148-154.

[26] Lee H, Ting K, Nelson M, et al. Maxillary expansion in customized finite element method models. Am J Orthod Dentofacial Orthop. 2009;136(3):367-374.

[27] 居曼江•买买提,米丛波,赵玺,等.减阻牵张成骨快速移动尖牙三维有限元模型的建立[J].中国组织工程研究与临床康复,2010, 14(35):6508-6511.

[28] Mc Guinness NJ, Wilson AN, Jones ML, et al. A stress analysis of the periodontal ligament under various orthodontic loadings. Eur J Orthod. 1991;13(3):231-242.

[29] 曹采方.牙周病学[M].北京:人民卫生出版社,2000.

[30] 赵玺,米丛波,居曼江•买买提,等.牙周膜牵张成骨术快速移动尖牙的三维有限元模型建立[J]中国组织工程研究与临床康复, 2010,14(22):4014-4017.

[31] Natarajan RN, Andersson GB, Patwardhan AG, et al. Study on effect of graded facetectomy on change in lumbar motion segment torsional flexibility using three-dimensional continuum contact representation for facet joints. J Biomech Eng. 1999;121(2):215-221.
