Preparation of a near-infrared photoresponsive biomimetic nanoprobe and its application in photothermal detection and treatment of breast cancer

doi:10.12307/2023.983

Abstract

Abstract: BACKGROUND: Photothermal therapy is a novel tumor treatment strategy that uses photothermal agents to transform light energy into heat energy to accomplish non-invasive tumor ablation. The rise of photothermal therapy and nanotechnology has provided a new perspective on breast cancer treatment.
OBJECTIVE: To prepare a new type of near-infrared biomimetic nanoprobe that has been modified by breast cancer cell membrane, to investigate the effect of near-infrared fluorescence/ultrasound imaging in vitro, and to observe its targeting ability and photothermal therapy effect on homologous tumor cells in vitro.
METHODS: Organic small molecule ITIC-4CI with A-D-A structure was used as photothermal agents; polylactic acid/glycolic acid copolymer as nanocarrier; 4T1 cell membrane of mouse breast cancer cells as a surface modifier of nanoparticles; perfluorohexane (PFH) was loaded. A novel near-infrared biomimetic nanoprobe (4T1m/ITIC-4CI/PFH) was prepared by the double emulsion evaporation method and sonication method. The basic characterization of the nanoprobe and the homologous targeting ability were detected. The photothermal properties and photothermal stability of the probe were investigated, and the near-infrared fluorescence/ultrasound imaging effect of the probe under laser irradiation was observed. The CCK-8 assay and calcein/propidium iodide staining were used to assess the efficacy of photothermal therapy.

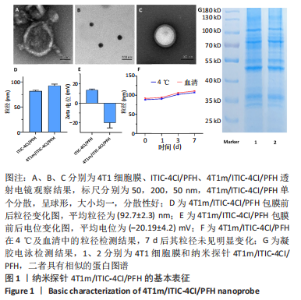

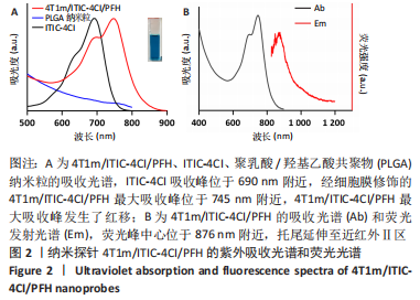

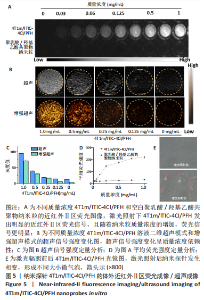

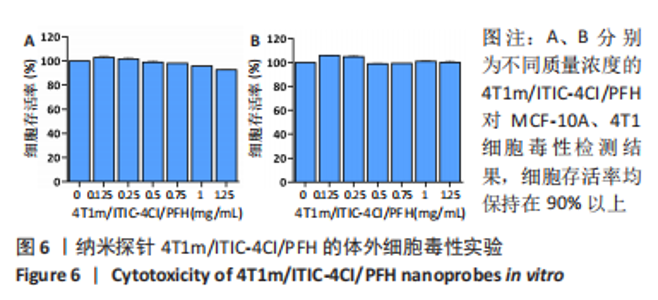

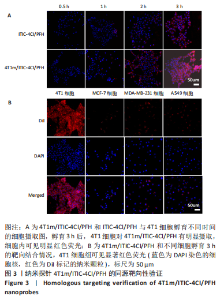

RESULTS AND CONCLUSION: (1) The prepared 4T1m/ITIC-4CI/PFH nanoprobes had uniform size, high stability, and an average particle size of (92.7±2.3) nm. The probe’s protein composition was identical to that of the 4T1 cell membrane. The nanoprobe’s ability to target homologous 4T1 cells was validated by an in vitro cell uptake assay. (2) The nanoprobe had a red-shift absorption spectrum and tail emission extending to the near-infrared-II, which emitted a bright near-infrared-II fluorescence signal under laser irradiation. (3) After laser irradiation, the nanoprobe 4T1m/ITIC-4CI/PFH could be turned into microbubbles and enhanced ultrasound imaging. The results of CCK-8 assay and calcein/propidium iodide staining showed that the nanoprobe 4T1m/ITIC-4CI/PFH had an obvious photothermal killing effect on 4T1 cells. (4) The results show that the nanoprobe 4T1m/ITIC-4CI/PFH has the ability to target homologous tumors and enhance near-infrared-II fluorescence imaging/ultrasound imaging and photothermal therapy effects.

Key words: cancer cell membrane, near-infrared fluorescence imaging, dual mude imaging, photothermal therapy, A-D-A structure, nanoprobe, nanotechnology

CLC Number:

Li Wenlan, Wang Wenyuan, Ren Wenxiu, Zhang Yupei, Yang Xiaoyan, Wang Zhigang, Xia Jizhu. Preparation of a near-infrared photoresponsive biomimetic nanoprobe and its application in photothermal detection and treatment of breast cancer[J]. Chinese Journal of Tissue Engineering Research, 2024, 28(5): 669-675.

Figures/Tables 7

References

[1] SUNG H, FERLAY J, SIEGEL RL, et al. Global cancer statistics 2020: globocan estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J Clin. 2021;71(3):209-249.
[2] LIU M, ANDERSON R, LAN X, et al. Recent advances in the development of nanoparticles for multimodality imaging and therapy of cancer. Med Res Rev. 2020;40(3):909-930.
[3] YAN D, WANG M, WU Q, et al. Multimodal imaging‐guided photothermal immunotherapy based on a versatile nir‐ii aggregation‐induced emission luminogen. Angew Chem Int Ed Engl. 2022;61(27):e202202614.
[4] LIU Y, BHATTARAI P, DAI Z, et al. Photothermal therapy and photoacoustic imaging via nanotheranostics in fighting cancer. Chem Soc Rev. 2019;48(7):2053-2108.
[5] CHANG T, QIU Q, JI A, et al. Organic single molecule based nano-platform for nir-ii imaging and chemo-photothermal synergistic treatment of tumor. Biomaterials. 2022;287:121670.
[6] JI Y, JONES C, BAEK Y, et al. Near-infrared fluorescence imaging in immunotherapy. Adv Drug Deliv Rev. 2020;167:121-134.
[7] LI L, DONG X, LI J, et al. A short review on nir-ii organic small molecule dyes. Dyes Pigments 2020;183:108756.
[8] LI JB, LIU HW, FU T, et al. Recent progress in small-molecule near-ir probes for bioimaging. Spec. Issue Part Two Big Quest Chem. 2019; 1(2):224-234.
[9] 孙阳,王志刚.多功能超声造影剂分子显像与治疗研究进展[J].中国超声医学工程学会,2012,28(1):84-86.
[10] CUI T, YAN Z, QIN H, et al. A sequential target‐responsive nanocarrier with enhanced tumor penetration and neighboring effect in vivo. Small. 2019;15(42):1903323.
[11] DOAN VHM, NGUYEN VT, MONDAL S, et al. Fluorescence/photoacoustic imaging-guided nanomaterials for highly efficient cancer theragnostic agent. Sci Rep. 2021;11(1):15943.
[12] PATIL Y, MISRA R. Rational molecular design towards nir absorption: efficient diketopyrrolopyrrole derivatives for organic solar cells and photothermal therapy. J Mater Chem C. 2019;7(42):13020-13031.
[13] JIA S, LI Z, SHAO J, et al. Acceptor regulation of acceptor–donor–acceptor type conjugated oligomer for photothermal combating of resistant bacteria. ACS Appl Polym Mater. 2022;4(8):5275-5280.
[14] LI B, GAN Y, YANG K, et al. Acceptor-donor-acceptor structured phototheranostics for near-infrared ii fluorescent and photoacoustic imaging-guided photodynamic and photothermal synergistic therapy. Sci Chin Mater. 2022;66:385-396.
[15] WAN Y, LU G, WEI WC, et al. Stable organic photosensitizer nanoparticles with absorption peak beyond 800 nanometers and high reactive oxygen species yield for multimodality phototheranostics. ACS Nano. 2020;14(8):9917-9928.
[16] ZHANG Y, SHI M, YAN Z, et al. Ultrastable near-infrared nonlinear organic chromophore nanoparticles with intramolecular charge transfer for dually photoinduced tumor ablation. Adv Healthc Mater. 2020;9(20):2001042.
[17] HE Z, ZHAO L, ZHANG Q, et al. An acceptor–donor–acceptor structured small molecule for effective nir triggered dual phototherapy of cancer. Adv Funct Mater. 2020;30(16):1910301.
[18] JUNG HS, VERWILST P, SHARMA A, et al. Organic molecule-based photothermal agents: an expanding photothermal therapy universe. Chem Soc Rev. 2018;47(7):2280-2297.
[19] LI S, DENG Q, ZHANG Y, et al. Rational design of conjugated small molecules for superior photothermal theranostics in the nir-ii biowindow. Adv Mater. 2020;32(33):2001146.
[20] LI L, HAN X, WANG M, et al. Recent advances in the development of near-infrared organic photothermal agents. Chem Eng J. 2021;417:128844.
[21] LI H, KIM Y, JUNG H, et al. Near-infrared (nir) fluorescence-emitting small organic molecules for cancer imaging and therapy. Chem Soc Rev. 2022;51(21):8957-9008.
[22] ZHEN X, CHENG P, PU K. Recent advances in cell membrane–camouflaged nanoparticles for cancer phototherapy. Small. 2019;15(1):1804105.
[23] FANG RH, HU CMJ, LUK BT, et al. Cancer cell membrane-coated nanoparticles for anticancer vaccination and drug delivery. Nano Lett. 2014;14(4):2181-2188.
[24] WANG Q, XIA B, XU J, et al. Biocompatible small organic molecule phototheranostics for nir-ii fluorescence/photoacoustic imaging and simultaneous photodynamic/photothermal combination therapy. Mater Chem Front. 2019;3(4):650-655.
[25] OZERSKAYA AV, ZAMAY TN, KOLOVSKAYA OS, et al. 11C-radiolabeled aptamer for imaging of tumors and metastases using positron emission tomography- computed tomography. Mol Ther Nucleic Acids. 2021;26:1159-1172.
[26] ZIMMER WD, BERQUIST TH, MCLEOD RA, et al. Bone tumors: magnetic resonance imaging versus computed tomography. Radiology. 1985; 155(3):709-718.
[27] WANG G, SONG L, HOU X, et al. Surface-modified gvs as nanosized contrast agents for molecular ultrasound imaging of tumor. Biomaterials. 2020;236:119803.
[28] ZHANG L, LIU Y, HUANG H, et al. Multifunctional nanotheranostics for near infrared optical imaging-guided treatment of brain tumors. Adv Drug Deliv Rev. 2022;190:114536.
[29] PATHAK V, NOLTE T, RAMA E, et al. Molecular magnetic resonance imaging of alpha-v-beta-3 integrin expression in tumors with ultrasound microbubbles. Biomaterials. 2021;275:120896.
[30] 甘甜,王文渊,晏殊瑾,等.携载LXR激动剂近红外光响应性纳米粒的光热协同免疫效应[J].中国组织工程研究,2023,27(12):1863-1869.
[31] ZHANG C, LIU J, GUO H, et al. Theranostic nanomedicine carrying l-menthol and near-infrared dye for multimodal imaging-guided photothermal therapy of cancer. Adv Healthc Mater. 2019;8(16):1900409.
[32] LI S, DENG Q, ZHANG Y, et al. Rational design of conjugated small molecules for superior photothermal theranostics in the nir-ii biowindow. Adv Mater. 2020;32(33):2001146.
[33] CAI Y, WEI Z, SONG C, et al. Novel acceptor–donor–acceptor structured small molecule-based nanoparticles for highly efficient photothermal therapy. Chem Commun. 2019;55(61):8967-8970.
[34] WAN X, LI C, ZHANG M, et al. Acceptor–donor–acceptor type molecules for high performance organic photovoltaics – chemistry and mechanism. Chem Soc Rev. 2020;49(9):2828-2842.
[35] 黄建波,杨林,阳锐,等.岩藻多糖修饰的相变型造影剂体外超声显像及靶向肝癌的实验研究[J].四川大学学报(医学版),2022, 53(5):752-757.
[36] PEI X, PAN X, XU X, et al. 4T1 cell membrane fragment reunited pamam polymer units disguised as tumor cell clusters for tumor homotypic targeting and anti-metastasis treatment. Biomater. Sci. 2021;9(4):1325-1333.
[37] LI H, LIU Y, HUANG B, et al. Highly efficient gsh-responsive “off–on” nir-ii fluorescent fenton nanocatalyst for multimodal imaging-guided photothermal/chemodynamic synergistic cancer therapy. Anal Chem. 2022;94(29):10470-10478.
[38] ZHU L, ZHONG Y, WU S, et al. Cell membrane camouflaged biomimetic nanoparticles: focusing on tumor theranostics. Mater Today Bio. 2022; 14:100228.
[39] 王红卫,卓忠雄,赵延新,等.超声辐照瘤内注射微泡空化效应的病理学研究[J].中国超声医学杂志,2007(4):256-258.
[40] 周裕卿,彭玉兰,杨林,等.全氟化碳纳米粒在超声分子成像和治疗中的应用[J].中国医学影像学杂志,2022,30(5):514-517.
