Effect of different Scarf osteotomy angles on orthopedic surgery for flat foot

doi:10.12307/2023.646

Abstract

Abstract: BACKGROUND: Scarf osteotomy is an effective procedure for correcting the valgus of the flat foot, which is a three-dimensional orthopedic procedure. Whether the angle of the osteotomy will affect the orthopedic strength needs to be studied.
OBJECTIVE: To simulate Scarf osteotomy at different angles in 3-matic software, and to analyze the effect of Scarf osteotomy angle on flat foot orthopedics.

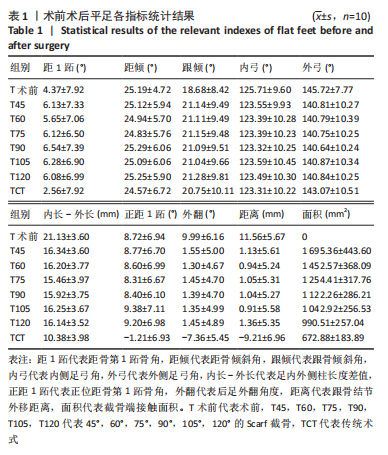

METHODS: Three-dimensional models of the flat foot on weight-bearing state were imported into 3-matic software to obtain the sketches of the frontal lateral and coronal rear foot. The relevant indexes of flat feet were measured as the flat feet indexes before operation. In the same model, the traditional Evans combined with medial displacement calcaneal osteotomy, as well as different angles of Scarf osteotomy, such as 45°, 60°, 75°, 90°, 105°, 120° were performed. After the osteotomy was completed, the flat foot-related indicators were measured again, and compared with those before the operation.

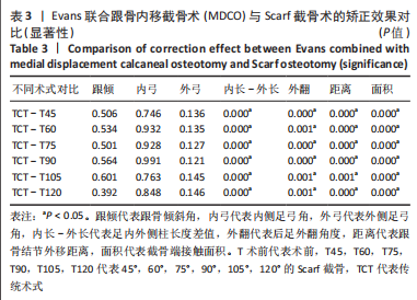

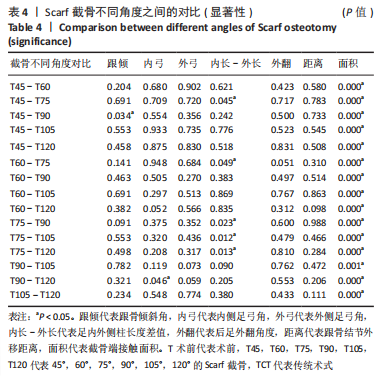

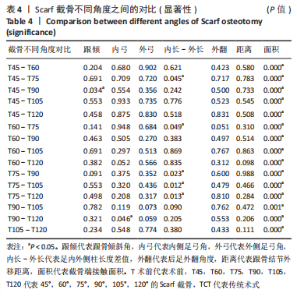

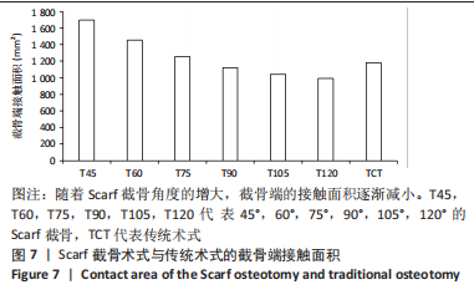

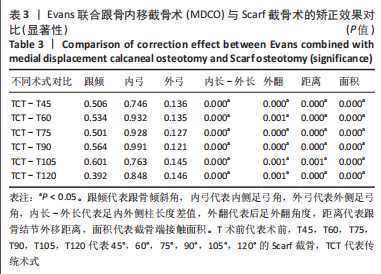

RESULTS AND CONCLUSION: Simple bone surgery had little effect on the talus pitch angle and the talo-first metatarsal angle on lateral side. Evans operation had greater correction of fore foot abduction, while Scarf osteotomy had no significant effect on it. For the effect on the hind foot valgus, Scarf osteotomy showed greater effects than the traditional Evans combined with medial displacement calcaneal osteotomy. The contact area of the osteotomy was larger than that of the traditional one, and decreased gradually with the increase of the angle of Scarf osteotomy. In addition, this study found that perpendicular to the lateral wall of the opposite bone after osteotomy, along the perpendicular to the lateral wall of the external bone can play a part in the role of deepening the arch.

Key words: flat foot, three-dimensional bone model on weight-bearing, Scarf osteotomy, Evans combined with medial displacement calcaneal osteotomy

CLC Number:

Zhang Xingfei, Zhou Jiandong, Wang Wencheng, Zhang Yuxuan, Tian Jian, Xu Yajun. Effect of different Scarf osteotomy angles on orthopedic surgery for flat foot[J]. Chinese Journal of Tissue Engineering Research, 2023, 27(29): 4670-4676.

Figures/Tables 5
