Ginsenoside Rg3-loaded liposome hydrogel promotes chondrogenic differentiation of stem cells

doi:10.12307/2026.766

Chinese Journal of Tissue Engineering Research ›› 2026, Vol. 30 ›› Issue (26): 6760-6767.doi: 10.12307/2026.766

Ginsenoside Rg3-loaded liposome hydrogel promotes chondrogenic differentiation of stem cells

Zhao Qinglan1, 2, 3, Zhou Xinting2, Wang Huajun3, Zhong Jiaxuan2, 3, Zheng Liheng4, Tan Wencheng5, Yang Xinchun6, Huang Shusen3, #br# Wu Tingting2, Zheng Xiaofei3, Hong Jinsong1, 3

1Guangzhou University of Chinese Medicine, Guangzhou Orthopaedic Hospital, Guangzhou 510006, Guangdong Province, China; 2National Engineering Research Center for Healthcare Devices, Guangdong Provincial Key Laboratory of Medical Electronic Instruments and Materials, Institute of Biomedical and Health Engineering, Guangdong Academy of Sciences, Guangzhou 510316, Guangdong Province, China; 3Department of Sports Medicine, The First Affiliated Hospital of Jinan University, Guangdong Key Laboratory for Orthopaedic Precision and Regenerative Medicine, Guangdong Key Laboratory of Speed and Agility, Guangzhou 510630, Guangdong Province, China

Accepted:2025-10-20 Online:2026-09-18 Published:2026-03-11
Contact: Wu Tingting, Senior engineer, National Engineering Research Center for Healthcare Devices, Guangdong Provincial Key Laboratory of Medical Electronic Instruments and Materials, Institute of Biomedical and Health Engineering, Guangdong Academy of Sciences, Guangzhou 510316, Guangdong Province, China Zheng Xiaofei, Chief physician, Department of Sports Medicine, The First Affiliated Hospital of Jinan University, Guangdong Key Laboratory for Orthopaedic Precision and Regenerative Medicine, Guangdong Key Laboratory of Speed and Agility, Guangzhou 510630, Guangdong Province, China Hong Jinsong, Associate professor, Master’s supervisor, Guangzhou University of Chinese Medicine, Guangzhou Orthopaedic Hospital, Guangzhou 510006, Guangdong Province, China; Department of Sports Medicine, The First Affiliated Hospital of Jinan University, Guangdong Key Laboratory for Orthopaedic Precision and Regenerative Medicine, Guangdong Key Laboratory of Speed and Agility, Guangzhou 510630, Guangdong Province, China
About author:Zhao Qinglan, MS candidate, Guangzhou University of Chinese Medicine, Guangzhou Orthopaedic Hospital, Guangzhou 510006, Guangdong Province, China; National Engineering Research Center for Healthcare Devices, Guangdong Provincial Key Laboratory of Medical Electronic Instruments and Materials, Institute of Biomedical and Health Engineering, Guangdong Academy of Sciences, Guangzhou 510316, Guangdong Province, China; Department of Sports Medicine, The First Affiliated Hospital of Jinan University, Guangdong Key Laboratory for Orthopaedic Precision and Regenerative Medicine, Guangdong Key Laboratory of Speed and Agility, Guangzhou 510630, Guangdong Province, China Zhou Xinting, MS, Intermediate engineer, National Engineering Research Center for Healthcare Devices, Guangdong Provincial Key Laboratory of Medical Electronic Instruments and Materials, Institute of Biomedical and Health Engineering, Guangdong Academy of Sciences, Guangzhou 510316, Guangdong Province, China Wang Huajun, MD, Associate professor, Chief physician, Department of Sports Medicine, The First Affiliated Hospital of Jinan University, Guangdong Key Laboratory for Orthopaedic Precision and Regenerative Medicine, Guangdong Key Laboratory of Speed and Agility, Guangzhou 510630, Guangdong Province, China
Supported by:
Guangdong Provincial Science and Technology Project - Guangdong-Macao Joint Innovation Project, No. 2023A0505020008 (to ZXF); National Key Research & Development Program of China, No. 2022YFE0206200 (to ZXF); Macao Science and Technology Development Fund Project, No. FDCT 0032/2022/AGJ (to YXC); Macao Science and Technology Development Fund Project, No. FDCT 0009/2021/AMMJ (to ZLH); GDAS Science and Technology Development Project, No. 2023GDASZH-2023010102 (to WTT); Guangdong Provincial Medical Research Foundation Project, No. A2024428 (to HSS)

Abstract

Abstract: BACKGROUND: Ginsenoside Rg3 has potential for cartilage protection and repair, but its application suffers from drawbacks such as poor water solubility, short half-life, and low bioavailability. To improve drug pharmacokinetic properties, embedding drug-loaded liposomes into methylated gelatin, polysaccharide, or silk fibroin-based hydrogels has become a hot topic in cartilage tissue engineering research.
OBJECTIVE: To fabricate liposome-methacryloylated silk fibroin hydrogels loaded with ginsenoside Rg3 and further analyze the effects of these hydrogels on the chondrogenic differentiation of mouse bone marrow mesenchymal stem cells.
METHODS: (1) Ginsenoside Rg3 liposomes were prepared by a thin film dispersion method. Dil-labeled liposomes were co-cultured with mouse bone marrow mesenchymal stem cells, and cellular uptake of the liposomes was assessed by phalloidin staining. Methacryloylated silk fibroin (SilMA) was prepared. Ginsenoside Rg3 liposomes were mixed with SilMA and photocrosslinked to form a composite hydrogel (SilMA@Lipo-Rg3). The micromorphology, mechanical properties, rheological properties, swelling properties, and drug release performance of the hydrogel were evaluated. (2) Mouse bone marrow mesenchymal stem cells were cultured with different concentrations of SilMA hydrogel extract or SilMA@Lipo-Rg3 hydrogel extract. The cytocompatibility of the materials was evaluated by CCK-8 assay and live-dead cell staining. Mouse bone marrow mesenchymal stem cells were cultured with 1/8 concentration of SilMA hydrogel extract or SilMA@Lipo-Rg3 hydrogel extract, respectively. After chondrogenic induction, the expression of type II collagen, SOX9, and aggrecan mRNA was measured by qPCR. The expression of intracellular proteoglycans and glycosaminoglycans was detected by Alcian blue and safranin O staining.

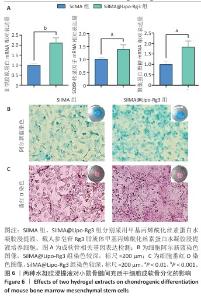

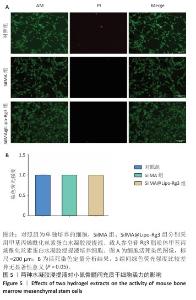

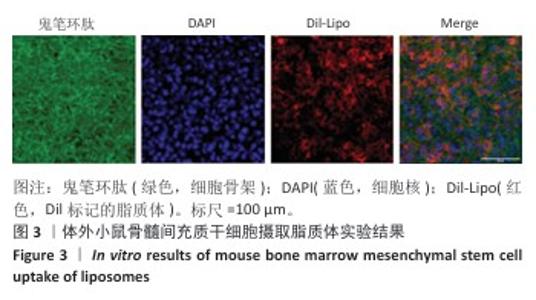

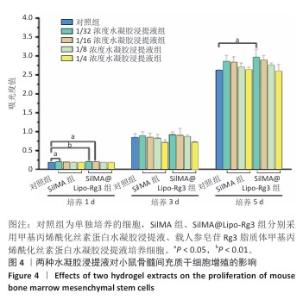

RESULTS AND CONCLUSION: (1) Phalloidin staining revealed that Dil-labeled liposomes were successfully taken up by mouse bone marrow mesenchymal stem cells. Scanning electron microscopy revealed that the SilMA@Lipo-Rg3 hydrogel exhibited a loose and porous lattice structure. Compression tests and rheological tests revealed that the compressive stiffness of the SilMA@Lipo-Rg3 hydrogel was slightly lower than that of the SilMA hydrogel; there was no significant difference in the swelling properties of the two hydrogels. The SilMA@Lipo-Rg3 hydrogel exhibited excellent sustained-release properties, releasing ginsenoside Rg3 for more than 14 days. (2) CCK-8 assay and live-dead cell staining revealed that the SilMA and SilMA@Lipo-Rg3 hydrogels exhibited good cytocompatibility. qPCR analysis showed that the mRNA expression of type II collagen, SOX9, and aggrecan in the SilMA@Lipo-Rg3 group was higher than that in the SilMA group (P < 0.05). Alcian blue and safranin O staining revealed that the expression of proteoglycans and glycosaminoglycans in the SilMA@Lipo-Rg3 group was higher than that in the SilMA group. These results indicate that the SilMA@Lipo-Rg3 hydrogel promotes the chondrogenic differentiation of mouse bone marrow mesenchymal stem cells.

Key words: ginsenoside Rg3, silk fibroin hydrogel, stem cells, chondrogenic differentiation, methacrylation modification, liposome

CLC Number:

Zhao Qinglan, Zhou Xinting, Wang Huajun, Zhong Jiaxuan, Zheng Liheng, Tan Wencheng, Yang Xinchun, Huang Shusen, Wu Tingting, Zheng Xiaofei, Hong Jinsong. Ginsenoside Rg3-loaded liposome hydrogel promotes chondrogenic differentiation of stem cells[J]. Chinese Journal of Tissue Engineering Research, 2026, 30(26): 6760-6767.

Figures/Tables 6

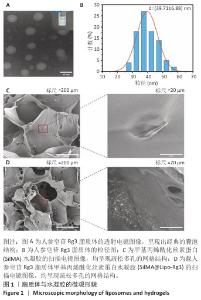

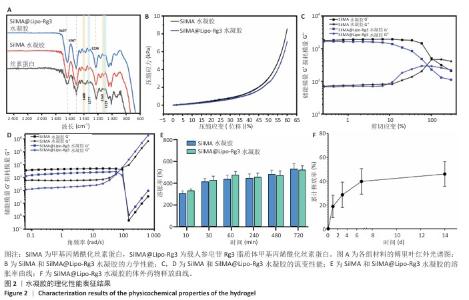

2.1 材料的表征结果使用透射电镜观察人参皂苷Rg3脂质体的外观形貌，观察到负染后人参皂苷Rg3脂质体呈现出经典的囊泡结构(图1A)，粒径约为39.71 nm(图1B)，证明纳米脂质体的成功构建。将人参皂苷Rg3脂质体与甲基丙烯酰化丝素蛋白混合，通过光交联构建SilMA@Lipo-Rg3水凝胶，扫描电镜下观察到SilMA、SilMA@Lipo-Rg3水凝胶均呈现疏松多孔的网格结构(图1C，D)。通过傅里叶红外光谱评估材料改性前后的结构变化，发现丝素蛋白、SilMA水凝胶、SilMA@Lipo-Rg3水凝胶均在1 637，1 507，1 230 cm-1附近存在酰胺Ⅰ、Ⅱ、Ⅲ区的红外吸收峰；SilMA和SilMA@Lipo-Rg3水凝胶在1 408，1 377 cm-1出现新峰，可能与甲基(-CH3)基团引入有关；此外，1 165，1 125 cm-1处的红外峰可能是甲基丙烯酸缩水甘油酯分子中酯或醚类的C-O-C振动峰，证明甲基丙烯酰化反应成功；SilMA@Lipo-Rg3水凝胶虽然引入了人参皂苷Rg3脂质体，但由于是物理掺入，没有新的化学键合成，总体吸收峰情况与SilMA水凝胶相似(图2A)。水凝胶的压缩应变-应力曲线显示(图2B)，与SilMA水凝胶相比，SilMA@Lipo-Rg3水凝胶的在相同应变下的应力略低，表明脂质体包载后的复合体系刚度略有下降，可能是因为脂质体的引入削弱了丝素蛋白交联网络的均匀性。如图2C，D所示，两种水凝胶的流变性能测试结果与压缩应力-应变实验结果基本一致，进一步证实脂质体的引入对交联网络强度产生了轻微的削弱作用。图2E显示，两组水凝胶的溶胀性能基本一致，在前10 min内，水凝胶迅速溶胀至原始质量的200%以上，此后溶胀速率逐渐减缓；在12 h内，最大溶胀倍率可达约500%，良好的溶胀能力有助于细胞黏附与营养物质交换。 SilMA@Lipo-Rg3水凝胶的体外累积释放结果显示，人参皂苷Rg3在24 h内迅速释放近20%，之后释放速率减缓，可实现缓释效果，药物持续释放时间可延长至14 d以上(图2F)，有望在早期释放高浓度药物抑制局部炎症反应，为后期软骨再生提供持续的药效支持。 "

References

[1] GEYER S, MATTES J, PETERSEN W, et al. Arthroscopic one-step matrix-assisted bone marrow stimulation for the treatment of osteochondral defects of the talus. Oper Orthop Traumatol. 2022;34(4):295-302.
[2] NIU J, CLANCY M, ALIABADI P, et al. Metabolic Syndrome, Its Components, and Knee Osteoarthritis: The Framingham Osteoarthritis Study. Arthritis Rheumatol. 2017;69(6):1194-1203.
[3] GUO X, XI L, YU M, et al. Regeneration of articular cartilage defects: Therapeutic strategies and perspectives. J Tissue Eng. 2023;14: 20417314231164765.
[4] YAO Q, WU X, TAO C, et al. Osteoarthritis: pathogenic signaling pathways and therapeutic targets. Signal Transduct Target Ther. 2023; 8(1):56.
[5] ALTSCHULER N, ZASLAV KR, DI MATTEO B, et al. Aragonite-Based Scaffold Versus Microfracture and Debridement for the Treatment of Knee Chondral and Osteochondral Lesions: Results of a Multicenter Randomized Controlled Trial. Am J Sports Med. 2023;51(4):957-967.
[6] MURPHY MP, KOEPKE LS, LOPEZ MT, et al. Articular cartilage regeneration by activated skeletal stem cells. Nat Med. 2020;26(10): 1583-1592.
[7] SUN W, GREGORY DA, TOMEH MA, et al. Silk Fibroin as a Functional Biomaterial for Tissue Engineering. Int J Mol Sci. 2021;22(3):1499.
[8] MARELLI B, PATEL N, DUGGAN T, et al. Programming function into mechanical forms by directed assembly of silk bulk materials. Proc Natl Acad Sci U S A. 2017;114(3):451-456.
[9] KIM SH, HONG H, AJITERU O, et al. 3D bioprinted silk fibroin hydrogels for tissue engineering. Nat Protoc. 2021;16(12):5484-5532.
[10] HONG H, SEO YB, KIM DY, et al. Digital light processing 3D printed silk fibroin hydrogel for cartilage tissue engineering. Biomaterials. 2020;232:119679.
[11] HUANG J, SHI J, MA N, et al. Celastrol-loaded ginsenoside Rg3 liposomes enhance anti-programmed death ligand 1 immunotherapy by inducing immunogenic cell death in triple-negative breast cancer. Phytomedicine. 2025;139:156514.
[12] LV S, CHEN X, CHEN Y, et al. Ginsenoside Rg3 induces apoptosis and inhibits proliferation by down-regulating TIGAR in rats with gastric precancerous lesions. BMC Complement Med Ther. 2022;22(1):188.
[13] PENG X, DING C, ZHAO Y, et al. Poloxamer 407 and Hyaluronic Acid Thermosensitive Hydrogel-Encapsulated Ginsenoside Rg3 to Promote Skin Wound Healing. Front Bioeng Biotechnol. 2022;10:831007.
[14] MA CH, CHOU WC, WU CH, et al. Ginsenoside Rg3 Attenuates TNF-α-Induced Damage in Chondrocytes through Regulating SIRT1-Mediated Anti-Apoptotic and Anti-Inflammatory Mechanisms. Antioxidants (Basel). 2021;10(12):1972.
[15] LEE JH, LIM H, SHEHZAD O, et al. Ginsenosides from Korean red ginseng inhibit matrix metalloproteinase-13 expression in articular chondrocytes and prevent cartilage degradation. Eur J Pharmacol. 2014;724:145-51.
[16] WANG J, ZENG L, ZHANG Y, et al. Pharmacological properties, molecular mechanisms and therapeutic potential of ginsenoside Rg3 as an antioxidant and anti-inflammatory agent. Front Pharmacol. 2022;13:975784.
[17] 韩淞任.人参皂苷Rg3长效脂质体在2型糖尿病治疗中的应用[D].长春:吉林大学,2022.
[18] 郭文娣,彭玉帅,许卉,等.脂质体制剂制备工艺及质量控制研究进展[J].药物分析杂志,2023,43(1):61-69.
[19] WU S, ZHANG H, WANG S, et al. Ultrasound-triggered in situ gelation with ROS-controlled drug release for cartilage repair. Mater Horiz. 2023;10(9):3507-3522.
[20] ZHOU J, JI X, XUE Y, et al. Immune-modulated adhesive hydrogel for enhancing osteochondral graft adhesion and cartilage repair. Bioact Mater. 2025;49:23-38.
[21] WYTRWAL M, SZMAJNTA K, KUCHARSKI M, et al. Kartogenin-loaded liposomes coated with alkylated chondroitin sulfate for cartilage repair. Int J Pharm. 2023;646:123436.
[22] 李博伟.负载姜黄素多囊泡脂质体的透明质酸/丝素蛋白水凝胶的构建及其用于关节软骨修复的研究[D].广州:暨南大学,2023.
[23] FU Y, HOU J, YANG Q, et al. Liposome-encapsulated AICAR hydrogel regulates macrophage metabolic reprogramming via SIK1 activation to alleviate osteoarthritis. J Nanobiotechnology. 2025;23(1):486.
[24] LI X, WANG L, WANG J, et al. Enhanced osteoarthritis treatment using an injectable pH-responsive and cartilage-targeted liposome-anchored kartogenin-incorporated methacrylated gelatin hydrogel microspheres. Int J Biol Macromol. 2025;313:144198.
[25] 周洁.视网膜靶向人参皂苷Rg3脂质体的制备及抗AMD作用研究[D].成都:成都大学,2025.
[26] 李燕红,张春燕,陈乾.DSPE-mPEG2000修饰荷叶碱脂质体制备及其体内药动学研究[J].中成药,2023,45(8):2457-2464.
[27] MEINEL L, HOFMANN S, KARAGEORGIOU V, et al. The inflammatory responses to silk films in vitro and in vivo. Biomaterials. 2005;26(2): 147-155.
[28] PATIL S, DHYANI V, KAUR T, et al. Spatiotemporal Control over Cell Proliferation and Differentiation for Tissue Engineering and Regenerative Medicine Applications Using Silk Fibroin Scaffolds. ACS Appl Bio Mater. 2020;3(6):3476-3493.
[29] 吴德光.可注射丝素蛋白肽纳米纤维水凝胶用于软骨再生的研究[D].广州:南方医科大学,2024.
[30] 潘西满.功能化明胶/丝素蛋白复合冷冻水凝胶支架的制备及其骨软骨修复性能研究[D].广州:华南理工大学,2021.
[31] KIM SH, YEON YK, LEE JM, et al. Precisely printable and biocompatible silk fibroin bioink for digital light processing 3D printing. Nat Commun. 2018;9(1):1620.
[32] ZHAO T, CAI X, CHEN H, et al. Rg3 inhibits hypoxia-induced tumor exosomes from boosting pancreatic cancer vasculogenic mimicry through the HIF-1α/LARS1/mTOR axis. Phytomedicine. 2025;139: 156437.
[33] HAN S, ZHANG X, LI Z, et al. A ginsenoside G-Rg3 PEGylated long-circulating liposome for hyperglycemia and insulin resistance therapy in streptozotocin-induced type 2 diabetes mice. Eur J Pharm Biopharm. 2024;201:114350.
[34] HANG X, HUANG F, LIU J, et al. Molecular Mechanism of Ginsenoside Rg3 Alleviation in Osteoporosis via Modulation of KPNA2 and the NF-κB Signalling Pathway. Clin Exp Pharmacol Physiol. 2025;52(3):e70019.
[35] SO MW, LEE EJ, LEE HS, et al. Protective effects of ginsenoside Rg3 on human osteoarthritic chondrocytes. Mod Rheumatol. 2013;23(1): 104-111.
[36] 刘花,刘艺,李娜,等.人参皂苷Rg3脂质体靶向递送双氢青蒿素与紫杉醇用于三阴性乳腺癌的治疗[J].中国中药杂志,2023,48(13): 3472-3484.
[37] 刘天舒.巨噬细胞膜仿生共载人参皂苷Rg3和三七总皂苷脂质体鼻脑转运靶向治疗缺血性脑卒中[D].长春:吉林大学,2024.
[38] PITTENGER MF,M ACKAY AM, BECK SC, et al．Multilineage potential of adult human mesenchymal stem cells. Science. 1999;284(5411): 143-147.
[39] 杨星,周明旺,王晓萍,等.中药促进干细胞成软骨分化的机制与研究[J].中国骨质疏松杂志,2025,31(3):424-428.
[40] KURZ B, LANGE T, VOELKER M, et al. Articular cartilage-from basic science structural imaging to non-invasive clinical quantitative molecular functional information for AI classification and prediction. Int J Mol Sci. 2023;24(19):14974．
[41] KANG S, PARK SJ, LEE AY, et al. Ginsenoside Rg3 promotes inflammation resolution through M2 macrophage polarization. J Ginseng Res. 2018; 42(1):68-74.

Ginsenoside Rg3-loaded liposome hydrogel promotes chondrogenic differentiation of stem cells

PDF

Knowledge

Abstract

Cite this article

share this article

Figures/Tables 6

References

Related Articles 0

Recommended Articles

Metrics

Comments
