Finite element analysis of various root shield thicknesses in maxillary central incisor socket-shield technique

doi:10.12307/2025.258

Abstract

Abstract: BACKGROUND: Socket-shield technique can effectively maintain labial soft and hard tissues, but the incidence of postoperative complications such as exposure and displacement of root shield is relatively high. It is speculated that the root shield may be exposed and displaced due to excessive load after long-term function of dental implants.
OBJECTIVE: Through three-dimensional finite element analysis, we aim to study the influence of varying root shield thicknesses on the stress distribution, equivalent stress peaks, and displacement in the root shield, periodontal ligaments, implant, and surrounding alveolar bone under normal occlusal loading. We also attempt to analyze the correlation between the thickness of the root shield and occurrence of mechanical events such as root shield exposure, displacement, and fracture.
METHODS: Cone-beam CT data of a patient who met the indication standard of socket-shield technique for maxillary central incisor were retrieved from database. Reverse engineering techniques were used to build models of the maxillary bone and root shield, while forward engineering was used to create models for the implant components based on their parameters. Models depicting various root shield thicknesses (0.5, 1.0, 1.5, and 2.0 mm) were created using Solidworks 2022 software. ANSYS Workbench 2021 software was then used to simulate and analyze the effects of varying root shield thicknesses on stress distribution, equivalent stress peaks, and displacement of the root shields, periodontal ligaments, implants, and surrounding alveolar bone under normal occlusion.

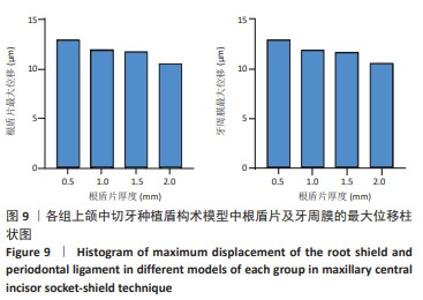

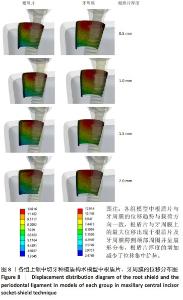

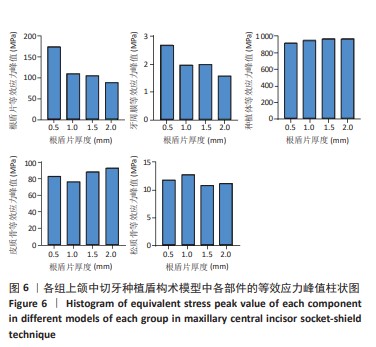

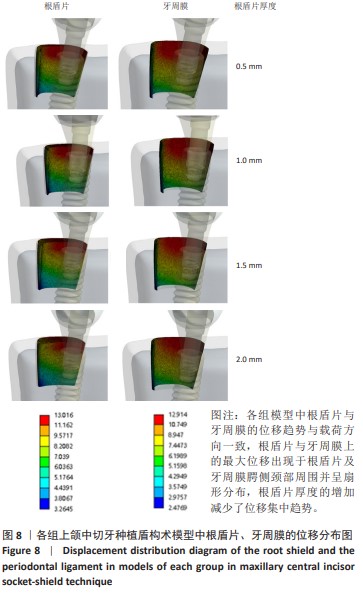

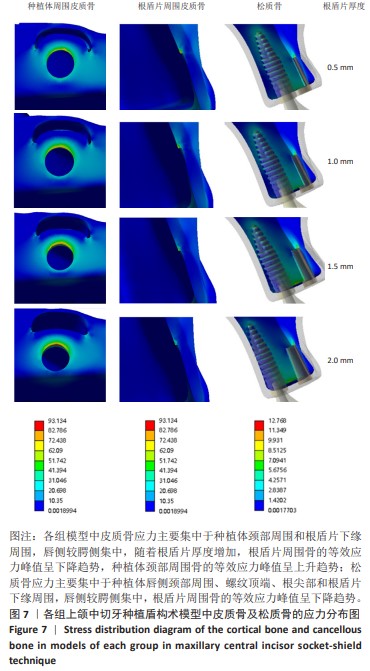

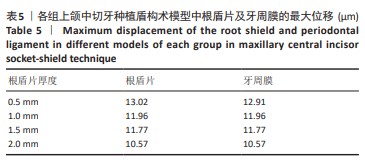

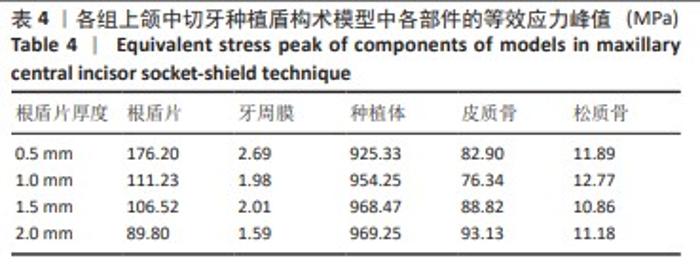

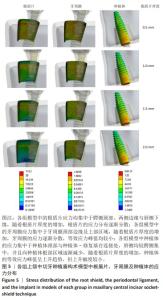

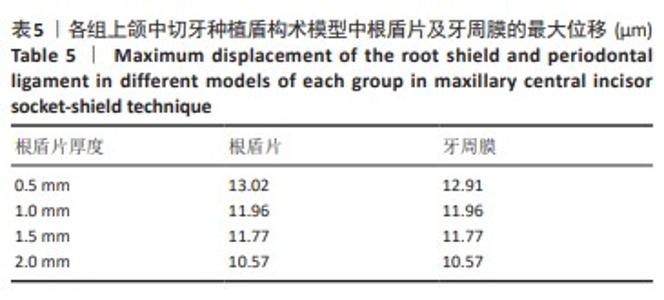

RESULTS AND CONCLUSION: (1) In all root shield models, the stress was concentrated on the palatal cervical side, both sides of the edges and the lower edge of the labial side. As the thickness of the root shield increased, the equivalent stress peak and displacement showed a decreasing trend. The 0.5 mm thickness model produced a stress concentration of 176.20 Mpa, which exceeded the yield strength (150 Mpa) of tooth tissue. (2) The periodontal ligament stress in each group was concentrated in the neck margin and upper region. With the increase of root shield thickness, the equivalent stress peak and displacement of periodontal ligament showed a decreasing trend. (3) Implant stress in all models was concentrated in the neck of the implant and the joint of the implant-repair abutment, and the labial side was more concentrated than the palatal side. With the increase of root shield thickness, the equivalent stress peak of the implant in the model showed an increasing trend. (4) In each group of models, stress of cortical bone concentrated around the neck of the implant and the periphery of the root shield, and the labial side was more concentrated than the palatal side. With the increase of the thickness of the root shield, the equivalent stress peak around the root shield decreased; the peak value of the equivalent stress of the bone around the neck of the implant showed an increasing trend. In the model, the stress of cancellous bone was mainly concentrated around the neck of the lip of the implant, the top of the thread, the root tip and the lower margin of the root shield, and the labial side was more concentrated than the palatal side. With the increase of the thickness of the root shield, the peak value of the equivalent stress of the bone around the root shield in the model showed a decreasing trend. The minimum principal stress of cortical bone in each group of models was concentrated around the neck of the implant, exhibiting a fan-shaped distribution. As the thickness of the root shield increased, the minimum principal stress of cortical bone showed an increasing trend. (5) These results indicate that different thicknesses of the root shield have different biomechanical effects. The root shield with a thickness of 0.5 mm is easy to fracture. For patients with sufficient bone width, the root shield with a thickness of 2.0 mm is an option to reduce the risk of complications such as root shield exposure, fracture, and displacement. Meanwhile, it should be taken into account to protect the periodontal ligament in the preparation process, and rounding treatments ought to be carried out on both sides and the lower edge of the root shield.

Key words: oral implantation, socket-shield technique, root shield thickness, biomechanics, complication, three-dimensional finite element

CLC Number:

Chen Guangneng, Luo Siyang, Wang Mei, Ye Bin, Chen Jiawen, Liu Yin, Zuo Yuwen, He Xianyu, Shen Jiajin, Ma Minxian. Finite element analysis of various root shield thicknesses in maxillary central incisor socket-shield technique[J]. Chinese Journal of Tissue Engineering Research, 2025, 29(10): 2052-2060.

Figures/Tables 8

References

[1] COORAY U, WATT RG, TSAKOS G, et al. Importance of socioeconomic factors in predicting tooth loss among older adults in Japan: Evidence from a machine learning analysis. Soc Sci Med. 2021;291:114486.
[2] BUSER D, CHAPPUIS V, BELSER UC, et al. Implant placement post extraction in esthetic single tooth sites: when immediate, when early, when late? Periodontol 2000. 2017;73(1):84-102.
[3] ARAÚJO M, LINDHE J. Dimensional ridge alterations following tooth extraction. An experimental study in the dog. J Clin Periodontol. 2005; 32(2):212-218.
[4] ATIEH MA, ALSABEEHA NH, PAYNE AG, et al. Interventions for replacing missing teeth: alveolar ridge preservation techniques for dental implant site development. Cochrane Database Syst Rev. 2021;4(4):Cd010176.
[5] SEYSSENS L, DE LAT L, COSYN J. Immediate implant placement with or without connective tissue graft: A systematic review and meta-analysis. J Clin Periodontol. 2021;48(2):284-301.
[6] URBAN I, MONJE A. Guided Bone Regeneration in Alveolar Bone Reconstruction. Oral Maxillofac Surg Clin North Am. 2019;31(2):331-338.
[7] CHEN S, BUSER D. Esthetic outcomes following immediate and early implant placement in the anterior maxilla--a systematic review. Int J Oral Maxillofac Implants. 2014;29 Suppl:186-215.
[8] HüRZELER MB, ZUHR O, SCHUPBACH P, et al. The socket-shield technique: a proof-of-principle report. J Clin Periodontol. 2010;37(9): 855-862.
[9] CASEY D, LAUCIELLO F. A review of the submerged-root concept. J Prosthet Dent. 1980;43(2):128-132.
[10] LIU J, ZHAO Z, RUAN J, et al. Stem cells in the periodontal ligament differentiated into osteogenic, fibrogenic and cementogenic lineages for the regeneration of the periodontal complex. J Dent. 2020;92: 103259.
[11] SIORMPAS K, MITSIAS M, KOTSAKIS G, et al. The Root Membrane Technique: A Retrospective Clinical Study With Up to 10 Years of Follow-Up. Implant Dent. 2018;27(5):564-574.
[12] GLUCKMAN H, SALAMA M, DU TOIT J. A retrospective evaluation of 128 socket-shield cases in the esthetic zone and posterior sites: Partial extraction therapy with up to 4 years follow-up. Clin Implant Dent Relat Res. 2018;20(2):122-129.
[13] GHARPURE A, BHATAVADEKAR N. Current Evidence on the Socket-Shield Technique: A Systematic Review. J Oral Implantol. 2017;43(5):395-403.
[14] ABD EL MENEIUM M, ELBARBARY A, DAHROUS M, et al. Comparison of the soft and hard peri-implant tissue dimensional changes around single immediate implants in the esthetic zone with socket shield technique versus using xenograft: A randomized controlled clinical trial. Clin Implant Dent Relat Res. 2021;23(3):456-465.
[15] 史俊宇,赖漪娆,王蓓.CAD/CAM全程手术导板结合改良根盾技术在前牙区即刻种植中的应用[J]. 口腔材料器械杂志,2021,30(1): 55-60.
[16] CHEN L, YANG Z, LIU X, et al. CAD-CAM titanium preparation template for the socket-shield technique. J Prosthet Dent. 2020;123(6):786-790.
[17] BLASCHKE C, SCHWASS D. The socket-shield technique: a critical literature review. Int J Implant Dent. 2020;6(1):52.
[18] ZUHR O, STAEHLER P, HUERZELER M. Complication Management of a Socket Shield Case After 6 Years of Function. Int J Periodontics Restorative Dent. 2020;40(3):409-415.
[19] TAN Z, KANG J, LIU W, et al. The effect of the heights and thicknesses of the remaining root segments on buccal bone resorption in the socket-shield technique: An experimental study in dogs. Clin Implant Dent Relat Res. 2018;20(3):352-359.
[20] CALVO-GUIRADO J, TROIANO M, LÓPEZ-LÓPEZ P, et al. Different configuration of socket shield technique in peri-implant bone preservation: An experimental study in dog mandible. Ann Anat. 2016;208:109-115.
[21] LIU C, XING Y, LI Y, et al. Bone quality effect on short implants in the edentulous mandible: a finite element study. BMC Oral Health. 2022;22(1):139.
[22] MONTEIRO J, DAL PIVA A, TRIBST J, et al. The effect of resection angle on stress distribution after root-end surgery. Iran Endod J. 2018; 13(2):188-94.
[23] 陈佳文,罗思阳,刘印,等.骨质对右上第一磨牙种植修复体咬合调整影响的有限元分析[J].中国组织工程研究,2024;28(16): 2579-2586.
[24] LIU B, LU C, WU Y, et al. The effects of adhesive type and thickness on stress distribution in molars restored with all-ceramic crowns. J Prosthodont. 2011;20(1):35-44.
[25] BRUNE A, STIESCH M, EISENBURGER M, et al. The effect of different occlusal contact situations on peri-implant bone stress - A contact finite element analysis of indirect axial loading. Mater Sci Eng C Mater Biol Appl. 2019;99:367-373.
[26] LEMOS CAA, VERRI FR, NORITOMI PY, et al. Effect of bone quality and bone loss level around internal and externa l connection implants: A finite element analysis study. J Prosthet Dent. 2021;125(1):137.e1-137.e10.
[27] TRIBST J, MELO R, BORGES A, et al. Mechanical behavior of different micro conical abutments in fixed prosthesis. Int J Oral Maxillofac Implants. 2018;33(6):1199-1205.
[28] DIKEN TüRKSAYAR AA, DONMEZ MB. Stress behavior of an anterior single implant restored with high performance polymer abutments under immediate and delayed loading: A 3D FEA study. J Prosthodont. 2023;35:132-138.
[29] 葛秋云,王菲.口腔解剖生理学[M].北京:北京科学技术出版社, 2017:71.
[30] 鲁颖,廖宛琳,陈旭锋,等.美学区根盾技术与常规即刻种植术的临床效果研究[J].临床口腔医学杂志,2023,39(11):668-672.
[31] SÁEZ-ALCAIDE L, GONZÁLEZ FERNÁNDEZ-TRESGUERRES F, CORTÉS-BRETÓN BRINKMANN J, et al. Socket shield technique: A systematic review of human studies. Ann Anat. 2021;238:151779.
[32] AUGUSTO DFAD, PELLIZZER EP, VERRI FR, et al. Influence of tapered and external hexagon connections on bone stresses around tilted dental implants: three-dimensional finite element method with statistical analysis. J Periodontol. 2014;85(2):261-269.
[33] ARINC H. Effects of prosthetic material and framework design on stress distribution in dental implants and peripheral Bone: A three-dimensional finite element analysis. Med Sci Monit. 2018;24: 4279-4287.
[34] AROLA DD, REPROGEL RK. Tubule orientation and the fatigue strength of human dentin. Biomaterials. 2006;27(9):2131-2140.
[35] PLOTINO G, GRANDE N, BEDINI R, et al. Flexural properties of endodontic posts and human root dentin. Dent Mater. 2007;23(9): 1129-1135.
[36] MENACHO-MENDOZA E, CEDAMANOS-CUENCA R, DÍAZ-SUYO A. Stress analysis and factor of safety in three dental implant systems by finite element analysis. Saudi Dent J. 2022;34(7):579-584.
[37] BING L, MITO T, YODA N, et al. Effect of peri-implant bone resorption on mechanical stress in the implant body: In vivo measured load-based finite element analysis. J Oral Rehabil. 2020;47(12):1566-1573.
[38] ARAKI H, NAKANO T, ONO S, et al. Three-dimensional finite element analysis of extra short implants focusing on implant designs and materials. Int J Implant Dent. 2020;6(1):5.
[39] BATELI M, ATT W, STRUB J. Implant neck configurations for preservation of marginal bone level: a systematic review. Int J Oral Maxillofac Implants. 2011;26(2):290-303.
[40] ZHANG W, SKRYPCZAK A, WELTMAN R. Anterior maxilla alveolar ridge dimension and morphology measurement by cone beam computerized tomography (CBCT) for immediate implant treatment planning. BMC Oral Health. 2015;15(1):65.
[41] 康维博.上颌中切牙即刻种植相关解剖要素的CBCT研究[D].南昌:南昌大学,2016.
[42] 赵莹,林雪峰.中重度慢性牙周炎上颌中切牙区解剖形态的锥形束CT测量分析[J].中华口腔医学研究杂志(电子版),2018,12(6): 369-374.
[43] FALCINELLI C, VALENTE F, VASTA M, et al. Finite element analysis in implant dentistry: State of the art and future directions. Dent Mater. 2023;39(6):539-556.
