Platelet-rich plasma promotes bone mineralization during distraction osteogenesis

doi:10.3969/j.issn.2095-4344.2016.46.005

Abstract

Abstract:

BACKGROUND: The platelet-rich plasma contains various growth factors that could enhance the regeneration of certain tissues.
OBJECTIVE: To observe the effect of platelet-rich plasma on the mineralization process during distraction osteogenesis in rabbits.
METHODS: Thirty-two adult Japanese white rabbits were randomly divided into four groups (n=8 per group). The upper 1/3 tibial osteotomy at the posterior limb was performed in all rabbits, and the 1 cm limb lengthening models were prepared, followed by the local injection of 500 μL platelet-rich plasma at 5, 15 and 25 days. The controls received no treatment. At 37 days after modeling, the rabbits were killed and newly formed callus was removed to undergo hematoxylin-eosin staining, and the frontal X-ray film of tibia was obtained.
RESULTS AND CONCLUSION: Lane-Sandhu radiographic scoring showed that the scores in the injection groups at 15 and 25 days after modeling were obviously better than those in the control group and the injection at 5 days after modeling. Lane-Sandhu histological scoring revealed that the scores in the injected groups at 15 and 25 days after modeling were significantly higher than those in the control group and group at 5 days after modeling (P < 0.05), which highest at 25 days. These results suggest that local injection of platelet-rich plasma can promote bone mineralization during distraction osteogenesis effectively, especially in the middle period of distraction osteogenesis.

中国组织工程研究杂志出版内容重点：组织构建；骨细胞；软骨细胞；细胞培养；成纤维细胞；血管内皮细胞；骨质疏松；组织工程

Key words: Platelet-Rich Plasma, Bone Lengthening, Tissue Engineering

CLC Number:

R318

Shi Bo-wen, Li Da-wei, Gong Xian-bin, Ji Guo-qi, Feng Yuan-chao, Cai Cheng-kuo, Shu Heng-sheng. Platelet-rich plasma promotes bone mineralization during distraction osteogenesis[J]. Chinese Journal of Tissue Engineering Research, 2016, 20(46): 6878-6884.

Figures/Tables 2

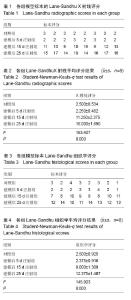

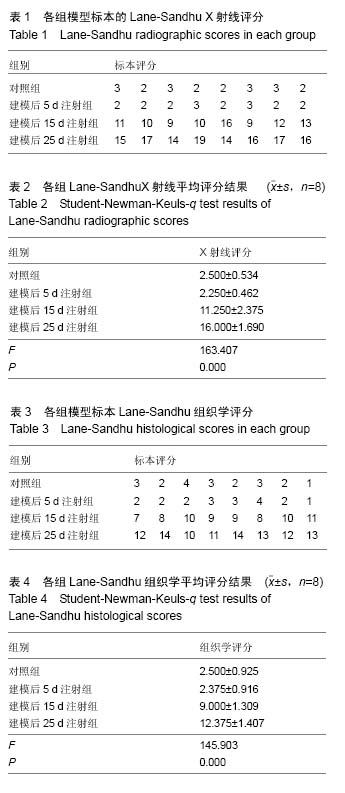

度高于其他各组；术后第35天，各组新生骨密度较第25天明显增高，其中以建模后15 d注射组、建模后25 d注射组牵拉成骨区出现大量纵行排列的条索状或片状的影像，骨痂密度较高，而对照组、建模后5 d注射组延长区仍存在少量透光区域(图2)。按照Lane-Sandhu X射线评价标准评分，各组评分结果及统计结果见表1，2。统计结果显示，建模后15 d注射组、建模后25 d注射组Lane-SandhuX线评分明显高于对照组、建模后5 d注射组(P < 0.05)，差异有显著性意义；建模后25 d注射组平均得分16.0高于建模后15 d注射组(11.25)，且二者之间差异有显著性意义(P < 0.05)；对照组、建模后5 d注射组两两比较，差异无显著性意义(P > 0.05)。 2.4 组织学观察空白对照组组织肿胀明显，视野中存在较多纤维组织，骨小梁结构少，未出现哈弗斯管系统及软骨化骨。建模后5 d注射组软骨化骨不活跃，成骨细胞数目较少，骨小梁密度也较低，大量纤维组织填充间隙；建模后15 d注射组软骨化骨不活跃，成骨细胞明显增多，视野中出现低成熟度的骨小梁，但结构致密；建模后25 d注射组成骨行为活跃，出现多个软骨化骨中心，并出现成熟度较高的哈弗斯管系统，骨重塑活跃，骨小梁排列致密，成骨细胞数目丰富，骨陷窝细胞较多(图3，4)。按照Lane-Sandhu组织学评价标准评分，各组评分及统计结果见表3，4。结果显示，建模后15 d注射组、建模后25 d注射组Lane-Sandhu组织学评分明显优于对照组、建模后5 d注射组，差异有显著性意义(P < 0.05)；建模后25 d注射组组织学评分平均分值最高(12.38)，与建模后15 d注射组比较，差异有显著性意义(P < 0.05)；对照组、建模后5 d注射组之间两两比较，差异无显著性意义(P > 0.05)。"

References

[1] Ali Bukhari SG, Ahmed W, Janjua OS. Distractionosteogenesis for correcting maxillo- mandibular deformities. J Coll Physicians Surg Pak. 2012; 22(9):582-585.
[2] Kosuge DD, Pugh H, Timms A et al. Limb Lengthening for Post-Traumatic Shortening Over a Pre-implanted Femoral Locking Plate. J Orthop Trauma. 2013; 27(3): e57-64.
[3] Pipitone PS, Rehman S. Management of traumatic bone loss in the lower extremity. Orthop Clin North Am. 2014;45(4):469-482.
[4] Khan MS, Raza W, Ullah H, et al. Outcome of ilizarov fixator in complex non-union of long bones.J Pak Med Assoc. 2015;65(11 Suppl 3):S147-151.
[5] Thakeb MF, Mahran MA, El-Motassem el-HM.Bone transport for the management of severely comminuted fractures without bone loss.Strategies Trauma Limb Reconstr. 2016;11(1):19-24.
[6] Tsibidakis H, Kanellopoulos AD, Sakellariou VI, et al. The role of Taylor Spatial Frame for the treatment of acquired and congenital tibial deformities in children. Acta Orthop Belg. 2014;80(3):419-425.
[7] Alexis F, Herzenberg JE, Nelson SC.Deformity correction in Haiti with the Taylor Spatial Frame. Orthop Clin North Am. 2015;46(1):9-19.
[8] Sachs O, Katzman A, Abu-Johar E, et al. Treatment of adolescent blount Disease Using Taylor Spatial Frame with and Without Fibular Osteotomy: Is There any Difference?J Pediatr Orthop. 2015;35(5):501-506.
[9] Kawoosa AA, Wani IH, Dar FA, et al. Deformity correction about knee with ilizarov technique: Accuracy of correction and effectiveness of gradual distraction after conventional straight cut osteotomy.Ortop Traumatol Rehabil. 2015;17(6): 587-592.
[10] Seo SG, Lee DY, Kim YS, et al. Foot and ankle function at maturity afterIlizarovtreatment for atrophic-type congenital Pseudarthrosis of the Tibia: a Comprehensive outcome comparison with Normal Controls.J Bone Joint Surg Am. 2016;98(6):490-498.
[11] Marx RE, Carlson ER, Eichstaedt RM, et al. Platelet-rich plasma: growth factor enhancement for bone grafts. Oral Surg Oral Med Oral Pathol Oral Radiol Endod 1998;85(6):638-646.
[12] Gobbi A, Fishman M.Platelet-rich Plasma and Bone Marrow-derived Mesenchymal Stem Cells in Sports Medicine.Sports Med Arthrosc. 2016;24(2):69-73.
[13] Say F, Gurler D, Bulbul M.Platelet-rich plasma versus steroid injection for subacromial impingement syndrome. J Orthop Surg (Hong Kong). 2016;24(1): 62-66.
[14] Peng W, Kim IK, Cho HY, et al. The healing effect of platelet-rich plasma on xenograft in peri-implant bone defects in rabbits.Maxillofac Plast Reconstr Surg. 2016; 38(1):16.
[15] Zhang Z, Wang Y, Sun J.The effect of platelet-rich plasma on arthroscopic double-row rotator cuff repair: a clinical study with 12-month follow-up. Acta Orthop Traumatol Turc. 2016;50(2):191-197.
[16] Palacio EP, Schiavetti RR, Kanematsu M, et al. Effects of platelet-rich plasma on lateral epicondylitis of the elbow: prospective randomized controlled trial.Rev Bras Ortop. 2016;51(1):90-95.
[17] Guillodo Y, Madouas G, Simon T, et al. Platelet-rich plasma (PRP) treatment of sports-related severe acute hamstring injuries.Muscles Ligaments Tendons J. 2016; 5(4):284-288.
[18] Karaduman M, Okkaoglu MC, Sesen H, et al. Platelet-rich plasma versus open surgical release in chronic tennis elbow: A retrospective comparative study.J Orthop.2016;13(1):10-14.
[19] Di Matteo B, Kon E, Filardo G.Intra-articular platelet-rich plasma for the treatment of osteoarthritis. AnnTransl Med. 2016;4(3):63.
[20] Roubelakis MG, Trohatou O, Roubelakis A, et al. Platelet-rich plasma (PRP) promotes fetal mesenchymal stem/stromal cell migration and wound healing process. Stem Cell Rev. 2014;10(3):417-428.
[21] Dragoo JL, Wasterlain AS, Braun HJ, et al. Platelet-rich plasma as a treatment for patellar tendinopathy: a double-blind, randomized controlled trial. Am J Sports Med.2014;42(3):610-618.
[22] Landesberg R, Roy M, Glickman RS. Quantification of growth factorlevels using a simplified method of platelet-rich plasma gel preparation.J Oral Maxillofac Surg、2000;58(3): 297-301.
[23] Lane JM, Sandhu HS. Current approaches to experimental bone grafting. OtehopClin North Am. 1987; 18(2): 213-225.
[24] Liporace FA, Yoon RS. Fixator-Assisted Femoral Lengthening Following Intramedullary Exchange Nailing for Subtrochanteric Non-union.JOrthop Trauma. 2015 Mar 9. [Epub ahead of print].
[25] Motallebi Zadeh N，Mortazavi SH, Khaki S, et al. Bilateral tibial lengthening over the nail: our experience of 143 cases. Arch Orthop Trauma Surg. 2014;134(9): 1219-1225.
[26] Song SY, Yun IS, Kim CH, et al. Transport distraction osteogenesis with recombinant human bone morphogenic protein-2 for large calvarial defect reconstruction. J Craniofac Surg. 2014;25(2):502-508.
[27] Terbish M, Yoo SH, Kim HJ.Accelerated Bone Formation in Distracted Alveolar Bone After Injection of Recombinant Human Bone Morphogenetic Protein-2.J Periodontol. 2015;8:1-16
[28] Xu H, Ke K, Zhang Z, et al. Effects of platelet-rich plasma and recombinant human bone morphogenetic protein-2 on suture distraction osteogenesis. J Craniofac Surg. 2013;24(2):645-650.
[29] 仇建军,张长青,袁霆,等.富血小板血浆及所含相关因子在组织修复再生中的应用与作用[J]中国组织工程研究与临床康复,2009,41(13):8131-8134.
[30] Marx RE, Carlson E, Eichstaedt R, et al .Platelet-rich plasma: growth factor enhancement for bone grafts. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 1998, 85:638-646.
[31] Ali AM, El-Alfy B, Amin M, et al. Can platelet-rich plasma shorten the consolidation phase of distraction osteogenesis? An experimental study.Eur J Orthop Surg Traumatol. 2015;25(3):543-548.
[32] Hernandez-Fernandez A, Vélez R, Soldado F, et al. Effect of administration of platelet-rich plasma in early phases of distraction osteogenesis: an experimental study in an ovine femur model.Injury. 2013;44(7): 901-907.
[33] Latalski M, Elbatrawy YA, Thabet AM, et al. Enhancing bone healing during distraction osteogenesis with platelet-rich plasma.Injury. 2011;42(8):821-824.
