Lumbar lordosis after lumbar disc replacement

doi:10.3969/j.issn.2095-4344.2013.30.005

Abstract

Abstract:

BACKGROUND: Artificial total disc replacement is one treatment of low back pain in recent years, but the report on the effect of disc replacement on lumbar sagittal plane is rare.
OBJECTIVE: To analyze the effect of lumbar disc replacement on lumbar lordosis.

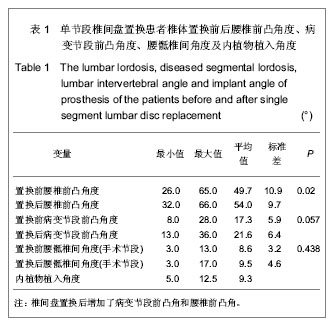

METHODS: Retrospective analysis of radiographic data of 17 patients who underwent lumbar disc replacement for single segment degenerative disc disease was carried out. Data measurement included preoperative and postoperative lumbar lordosis, diseased segmental lordosis and lumbar intervertebral angle.

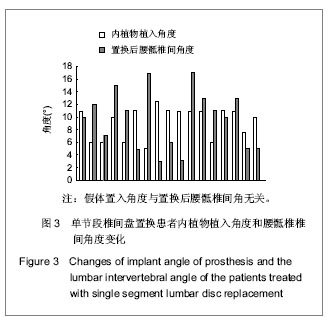

RESULTS AND CONCLUSION: All the 17 patients were followed-up for more than 12 months. Lumbar disc replacement was performed at L_4-5 segment in three cases and L₅-S₁ segment in 14 cases. The average diseased segmental lordosis and lumbar lordosis were increased significantly after replacement when compared with those before replacement (P < 0.05); the lumbar intervertebral angle was increased after replacement when compared with that before replacement, but the difference was not significant. The results indicate that lumbar disc replacement for the treatment of single segment degenerative disc disease can increase the lumbar lordosis and diseased segmental lordosis, which can help to improve the lumbar sagittal balance. The postoperative lumbar intervertebral angle has no correlation with the implant angle of the prosthesis on the replace segment.

Key words: bone and joint implants, artificial prosthesis, prosthesis implantation, lumbar, lumbar disc replacement, spinal sagittal balance, segmental lordosis, lumbar lordosis

CLC Number:

R318

Wang Long, Chu Ge, Zhang Hong-qi, Guo Chao-feng, Yan Tao, Qiao Wei-min . Lumbar lordosis after lumbar disc replacement[J]. Chinese Journal of Tissue Engineering Research, 2013, 17(30): 5446-5451.

Figures/Tables 5

References

[1] Salehi SA, Tawk R, Ganju A, et al. Transforaminal lumbar interbody fusion: Surgical technique and results in 24 patients. Neurosurgery. 2004;54:368-374.

[2] Glaser JA, Bernhardt M, Found E, et al. Lumbar arthrodesis for degenerative conditions. Instr Course Lect. 2004;53: 325-340.

[3] Deyo RA, Nachemson A, Nirza SK. Spinal-fusion surgery: the case for restraint. N Engl J Med 2004;350:722-726.

[4] Mummaneni PV, Haid RW, Rodts GE. Lumbar interbody fusion: state-of-the-art technical advances. J Neurosurg (Spine) 2004;1:24-30.

[5] Coe JD. Instrumented transforaminal lumbar interbody fusion with bioabsorbable polymer implants and iliac crest autograft. Neurosurg Focus 2004;16:1-9.

[6] Schwender JD, Holly LT, Rouben DP, et al. Minimally invasive transforaminal lumbar interbody fusion: technical feasibility and initial results. J Spinal Disord Tech 2005;18(suppl):1-6.

[7] Butt MF, Dhar SA, Hakeem I, et al In situ instrumented posterolateral fusion without decompression in symptomatic low-grade isthmic spondylolis-thesis in adults. Int Orthop. (2007) May 11.

[8] Inamdar DN, Alagappan M, Shyam L, et al.Devadoss APosterior lumbar interbody fusion versus intertransverse fusion in the treatment of lumbar spondylolisthesis. J Orthop Surg.2006;14(1):21-26.

[9] Kho VK, Chen WC.Posterolateral fusion using laminec-tomy bone chips in the treatment of lumbar spondylolisthesis. Int Orthop. 2008;32(1):115-119.

[10] Muschler GF,Nakamoto C,Griffith LG. Engineering principles of clinical cell-based tissue engineering. J Bone Joint Surg Am.2004;86:1541-1558.

[11] Sengupta DK. Dynamic stabilization devices in the treatment of low back pain. Orthop Clin North Am. 2004;35:43-56.

[12] Wilke HJ,Rohlmann F,Neidlinger-Wilke C,et al.Validity and interobserver agreement of a new radiographic grading system for intervertebral disc degeneration: part I. Lumbar spine. Eur Spine J.2006;15(6):720-730.

[13] Tribus CB, Belanger TA, Zdeblick TA.The effect of operative position and short-segment fusion on maintenance of sagittal alignment of the lumbar spine. Spine(Phila Pa1976).1999; 24:58-61.

[14] Djurasovic MO, Carreon LY, Glassman SD, et al. Sagittal alignment as a risk factor for adjacent level degeneration:a case-control study. Orthopedics.2008;31:546.

[15] Lazennec JY, Ramare S, Arafati N,et al.Sagittal alignment in lumbosacral fusion: relations between radiological parameters and pain. Eur Spine J.2000;9:47-55.

[16] Le Huec J, Basso Y, Mathews H,et al. The effect ofsingle- level,total disc arthroplasty on sagittal balance parameters: a prospectivestudy. Eur Spine J .2005; 14:480-486.

[17] Glassman SD,Bridwell K, DimarJR,et al.The impact of positive sagittal balancein adultspinaldeformity. Spine (Phila Pa 1976).2005;30:2024-2029.

[18] Hioki A, Miyamoto K, Kodama H,et al. Two-level posterior lumbar interbody fusion for degenerative disc disease: improved clinical outcome with restoration ofl umbar lordosis. Spine J.2005;5:600-607.

[19] Jagannathan J,Sansur CA, Oskouian RJ Jr,et al. Radiographic restoration of lumbar alignment after transforaminal lumbar inter-body fusion. Neurosurgery. 2009;64:955-963.

[20] Kawakami M,Tamaki T, Ando M,et al.Lumbar sagittal balance influences the clinical outcome after decompression and posterolateral spinal fusion for degenerative lumbar spondylolisthesis. Spine (Phila Pa 1976).2002;27:59-64.

[21] Blumenthal S, McAfee PC, Guyer RD, et al. A prospective, randomized, multicenter Food and Drug Administrationi nvestigational device exemptions study of lumbar total disc replacement with the CHARITE artificial disc versus lumbar fusion:partI:evaluation of clinical outcomes.. Spine (Phila Pa 1976) .2005;30:1565-1575.

[22] Guyer RD, McAfee PC,Banco RJ,et al. Prospective, randomized, multicenter Food and Drug Administration investigational device exemption study of lumbar total disc replacement with the CHARITE artificial disc versus lumbar fusion:five-year follow-up. Spine J .2009;9: 374-386.

[23] Kumar MN,Baklanov A, Chopin D. Correlation between sagittal plane changes and adjacent segment degeneration following lumbar spine fusion. Eur Spine J .2001;10: 314-319.

[24] Park P, Garton HJ, Gala VC,et al. Adjacentsegmentdisease after lumbar or lumbosacral fusion:review of the literature. Spine(Phila Pa 1976) .2004;29:1938-1944.

[25] Schlegel JD, Smith JA, Schleusener RL. Lumbar motion segment pathology adjacent to thoracolumbar,lumbar, and lumbosacral fusions. Spine (Phila Pa 1976).1996;21: 970-981.

[26] Cakir B, Richter M, Kafer W,et al.The impact of total lumbar disc replacementon segmental and total lumbar lordosis. Clin Biomech (Bristol,Avon).2005;20:357-364.

[27] Chung SS,Lee CS, Kang CS,et al.The effect of lumbar total disc replacement on the spinopelvic alignment and range of motion of the lumbar spine. J Spinal Disord Tech .2006;19: 307-311.

[28] Schmidt R, Obertacke U, Nothwang J, et al. The impact of implantation technique on frontal and sagittal alignment in total lumbar discreplacement:a comparison of anterior versus oblique implantation. Eur Spine J.2010;19:1534- 1539.

[29] Tournier C, Aunoble S,Le HuecJC,et al.Total disc arthroplasty:consequences for sagittal balance and lumbar spine movement. Eur Spine J.2007;16:411-421.

[30] Gilad R, Gandhi CD, Arginteanu MS,et al. Uncorrected sagittal plane imbalance predisposes to symptomatic instrumentation failure. Spine J.2008;8:911-917.

[31] Hsieh PC, Koski TR, O’Shaughnessy BA,et al. Anterior lumbar interbody fusionin comparison with transforaminal lumbar interbody fusion:implications for the restoration of foraminal height,local disc angle,lumbar lordosis,and sagittal balance. J Neurosurg Spine.2007;7:379-386.

[32] Kafchitsas K, Kokkinakis M, Habermann B,et al.Effect of lumbar discreplacement on the height of the discspace and the geometry of the facet joints:a cadaver study. J Bone Joint Surg Br.2010;92:595-601.

[33] Bernhardt M,Bridwell KH.Segmental analysis of the sagittal plane alignment of the normal thoracic and lumbar spines and thoraco-lumbar junction. Spine (Phila Pa 1976). 1989;14: 717-721.

[34] Boulay C, Tardieu C, HecquetJ,et al.Sagittal alignment of spine and pelvis regulated by pelvic incidence: standard values and prediction of lordosis. Eur Spine J.2006; 15: 415-422.

[35] Kuntz Ct Levin LS, Ondra SL,et al. Neutral upright sagittal spinal alignment from the occiput to the pelvis in asymptomatic adults:a review and resynthesis of the literature. J Neurosurg Spine .2007;6:104-112.
