Significance of routine magnetic resonance imaging examination in evaluating osteoporosis of the lumbar spine

doi:10.3969/j.issn.2095-4344.1014

Abstract

Abstract:

BACKGROUND: MRI of lumbar spine has been more and more extensively applied in patients with low back pain. The conventional MRI signal of lumbar spine is high in older females, which may be related to osteoporosis.

OBJECTIVE: To investigate the significance of conventional signal changes on MRI of lumbar spine in evaluating lumbar osteoporosis.

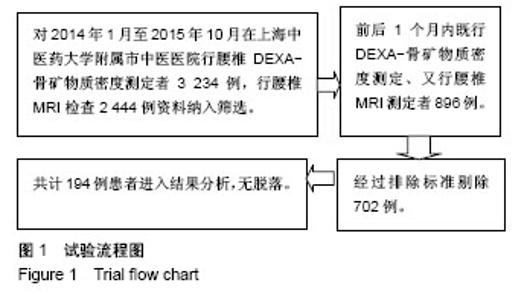

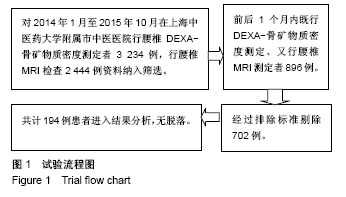

METHODS: One hundred and ninety-four cases were collected whose bone mineral density was determined by dual-energy X-ray absorptiometry and MRI in the L₁-L₄ within 1 month, including 50 males and 144 females. Dual-energy X-ray absorptiometry-bone mineral density value and MRI signal of lumbar vertebrae in the sagittal plane MRI-T₁WI, T₂WI and FS-T₂WI and signal difference between T₂WI and FS-T₂WI were analyzed. With 1 g/cm² as the dividing line, the dual-energy X-ray absorptiometry- bone mineral density value and the value of MRI signal of vertebral bodies were compared.

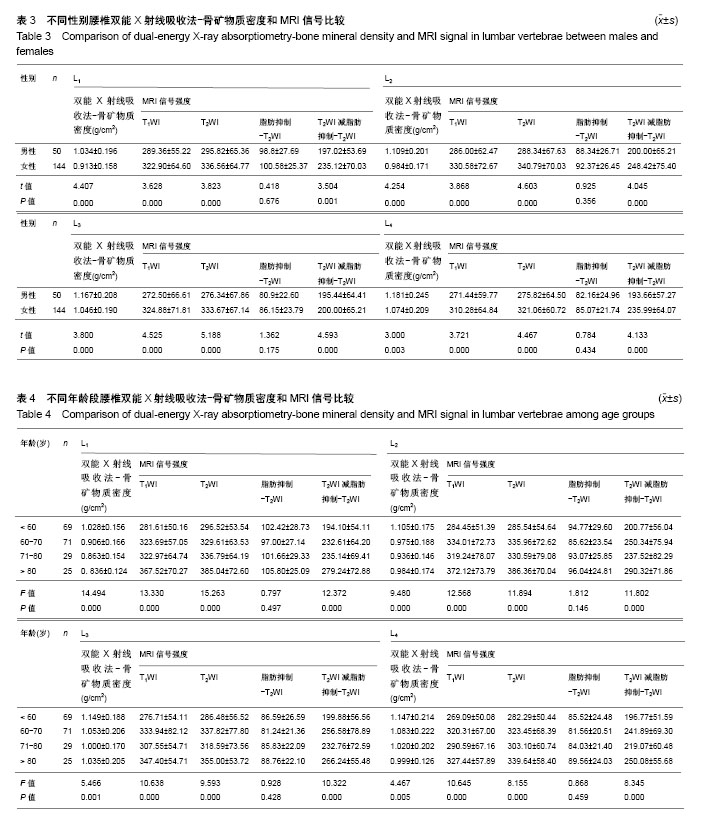

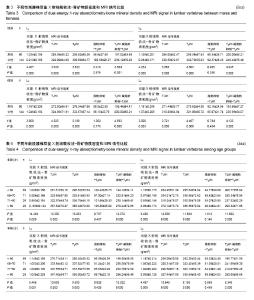

RESULTS AND CONCLUSION: (1) Bone mineral density of female subjects in all four vertebral bodies were significantly lower than that of males, in addition to P=0.003 in L₄, the rest P < 0.001. (2) The FS-T₂WI was not significantly different between males and females (P > 0.05). In females, the signals of MR-T₁WI, T₂WI and signal difference between MR-T₂WI and FS-T₂WI in the sagittal plane of lumbar vertebrae were significantly higher than those in males (P ≤ 0.001). (3) Among different age groups, dual-energy X-ray absorptiometry-bone mineral density and signals of MRI-T₁WI, T₂WI and signal difference between MRI-T₂WI and FS-T₂WI were significantly different. (4) In addition to the L₄, dual-energy X-ray absorptiometry-bone mineral density of patients under 60 years old was significantly higher than that of patients over 60 years old (P < 0.05), and decreased with age increasing. (5) While the signals of MRI-T₁WI, T₂WI and signal difference between MR-T₂WI and FS-T₂WI of patients under 60 years old were significantly lower than that of patients over 60 years old (P < 0.05), and increased with age increased. (6) There were no significant differences in the signal of MRI-FS-T₂WI of all age groups. (7) The age and signals of MRI-T₁WI, T₂WI and signal difference between MRI-T₂WI and FS-T₂WI of subjects of dual-energy X-ray absorptiometry-bone mineral density ≥ 1 g/cm² were significantly lower than that < 1 g/cm² (P < 0.001), while vertebral signals were not significantly different in FS-T₂WI (P > 0.05). (8) These results indicate that dual-energy X-ray absorptiometry can quantitatively determine the bone mineral density. MRI can reflect the content of bone fat and water by changes of signal by multi-sequences. It has important significance to judge the content of bone minerals and bone matrix indirectly.

中国组织工程研究杂志出版内容重点：人工关节；骨植入物；脊柱；骨折；内固定；数字化骨科；组织工程

Key words: Osteoporosis, Bone Density, Minerals, Absorptiometry, Photon, Magnetic Resonance Imaging, Tissue Engineering

CLC Number:

R445.2

Weng Zijing, Huang Xuejing, Yu Jianli, Zhang Minguang. Significance of routine magnetic resonance imaging examination in evaluating osteoporosis of the lumbar spine [J]. Chinese Journal of Tissue Engineering Research, 2018, 22(35): 5667-5673.

Figures/Tables 4

References

[1] Ralston SH, Fraser J. Diagnosis and management of osteoporosis. Practitioner. 2015;259(1788):15-19.

[2] 毛文晴,田甜.原发性骨质疏松的原因及发病机制[J].中国骨质疏松杂志,2011,17(10):937-940.

[3] 陈刚,俞茂华.男性骨质疏松的原因[J].中华老年医学杂志, 2007, 26(12):955-956.

[4] Kanis JA, McCloskey EV, Johansson H, et al. European guidance for the diagnosis and management of osteoporosis in postmenopausal women. Osteoporos Int. 2013;24(1): 23-57.

[5] World Health Organization. Prevention and management of osteoporosis. World Health Organ Tech Rep Ser. 2003;921: 1-164.

[6] Weaver CM, Gordon CM, Janz KF, et al. The National osteoporosis foundation's position statement on peak bone mass development and lifestyle factors: a systematic review and implementation recommendations. Osteoporos Int. 2016; 27(4):1281-1386.

[7] Baum T, Rohrmeier A, Syväri J, et al. Anatomical variation of age-related changes in vertebral bone marrow composition using chemical shift encoding-based water-fat magnetic resonance imaging. Front Endocrinol (Lausanne). 2018;9: 141.

[8] 雷立存,何丽,刘斋,等.磁共振化学位移成像对骨质疏松的诊断价值[J].中国临床医学影像学杂志,2014,25(9):648-651.

[9] Schwartz AV. Marrow fat and bone: review of clinical findings. Front Endocrinol (Lausanne). 2015;6(40):40.

[10] Messina C, Maffi G, Vitale JA, et al. Diagnostic imaging of osteoporosis and sarcopenia: a narrative review. Quant Imaging Med Surg. 2018;8(1):86-99.

[11] 程晓光,杨定焯,周琦,等.中国女性的年龄相关骨密度、骨丢失率、骨质疏松发生率及参考数据库——多中心合作项目[J].中国骨质疏松杂志,2008,14(4):221-228.

[12] Brennan O, Kennedy OD, Lee TC, et al. The effects of estrogen deficiency and bisphosphonate treatment on tissue mineralisation and stiffness in an ovine model of osteoporosis. J Biomech. 2011;44(3):386-390.

[13] Koh LK, Sedrine WB, Torralba TP, et al. A simple tool to identify asian women at increased risk of osteoporosis. Osteoporos Int. 2001;12(8):699-705.

[14] Muslim D, Mohd E, Sallehudin A, et al. Performance of osteoporosis self-assessment tool for asian (osta) for primary osteoporosis in post-menopausal malay women. Malays Orthop J. 2012;6(1):35-39.

[15] 景彩霞,李二乐,薛亚娟.OSTA指数与体重指数对于绝经后妇女骨质疏松的预测效果评价[J].中国骨质疏松杂志, 2015,21(9): 1083-1086.

[16] Oh SM, Song BM, Nam BH, et al. Development and validation of osteoporosis risk-assessment model for korean men. Yonsei Med J. 2016;57(1):187-196.

[17] Mistry SD, Woods GN, Sigurdsson S, et al. Sex hormones are negatively associated with vertebral bone marrow fat. Bone. 2018;108(1):20-24.

[18] Lewiecki EM. Clinical applications of bone density testing for osteoporosis. Minerva Med. 2005;96(5):317-330.

[19] Winzenberg T, Jones G. Dual energy X-ray absorptionmetry. Aust Fam Physician. 2011;40(1-2):43-44.

[20] 吴丹,孔西建,叶进,等.女性骨质疏松性骨折骨密度阈值冀中国人群骨质疏松诊断标准探讨[J].中国骨质疏松杂志, 2011,17(5): 382-385.

[21] 查小云,庞晓娜,李锂,等.中老年男性骨质疏松(OP)危险分层与定量超声骨密度(QUS-BMD)及双能X线骨密度(DXA-BMD)的相关性[J].复旦学报(医学版),2014,41(4):504-510.

[22] 中华医学会骨质疏松和骨矿盐疾病分会.原发性骨质疏松症诊疗指南[J].中华骨质疏松和骨矿盐疾病杂志,2011,4(1):2-17.

[23] 张智海,刘忠厚,李娜,等.中国人骨质疏松症诊断标准专家共识(第三稿•2014版)[J].中国骨质疏松杂志,2014,20(9):1007-1010.

[24] 刘中银,陈涛.48例双能X线骨密度检测假阴性结果分析[J].西南国防医学,2013,23(4):414-415.

[25] 何涛,杨定焯,刘忠厚.骨质疏松症诊断标准的探讨[J].中国骨质疏松杂志,2010,16(2):151-156,104.

[26] 张昕,王峻,苏晋生,等.定量CT与双能X线吸收测定仪测量腰椎各椎体间骨密度差异性研究[J].中国医学影像学杂志, 2011,19(12): 884-886.

[27] Link TM. Radiology of Osteoporosis. Can Assoc Radiol J. 2016;67(1):28-40.

[28] 宋飞鹏,张进,郜璐璐,等.骨质疏松症影像学诊断的研究现状[J].中国现代医生,2014,52(11):158-160.

[29] Balzano RF, Mattera M, Cheng X, et al. Osteoporosis: what the clinician needs to know? Quant Imaging Med Surg. 2018; 8(1):39-46.

[30] Chou SH, LeBoff MS. Vertebral imaging in the diagnosis of osteoporosis: a clinician's perspective. Curr Osteoporos Rep. 2017;15(6):509-520.

[31] 李冠武,常时新,鲍虹,等.骨髓脂肪含量对预测骨质疏松性椎体骨折风险的初步应用[J].实用放射学杂志,2012,28(1):74-77.

[32] 张灵艳,李绍林,郝帅.比较氢质子磁共振波谱和正反相位MRI成像在骨髓脂肪沉积中的价值[J].中国骨质疏松杂志, 2015,21(6): 691-696.

[33] 雷立存,何丽,刘斋,等.磁共振化学位移成像对骨质疏松的诊断价值[J].中国临床医学影像学杂志,2014,25(9):648-651.

[34] Zhang L, Li S, Hao S, et al. Quantification of fat deposition in bone marrow in the lumbar vertebra by proton MRS and in-phase and out-of-phase MRI for the diagnosis of osteoporosis. J Xray Sci Technol. 2016;24(2):257-266.

[35] 柯祺,许灼新,曹海伟,等.腰椎骨质疏松双能X线吸收法骨密度测定与MRI对照分析[J].实用放射学杂志,2003,19(3):236-240.

[36] Paccou J, Hardouin P, Cotten A, et al. The role of bone marrow fat in skeletal health: usefulness and perspectives for clinicians. J Clin Endocrinol Metab. 2015;100(10):3613-3621.

[37] 常飞霞,黄刚,樊敦徽,等.磁共振水-脂分离成像技术对椎体脂肪含量的测量[J].磁共振成像,2016,7(12):902-908.

[38] 顾晨琦,陈广东,顾云斌.核磁共振对骨质疏松性骨折疼痛责任椎体的诊断价值研究[J].中国血液流变学杂志, 2016,26(2): 259-261.

[39] 张恒,黄刚,毛泽庆,等.3.0T磁共振腹部DWI序列定量评价腰椎骨质疏松的价值[J].医学影像学杂志,2016,26(6):1083-1087.

[40] Oei L, Koromani F, Rivadeneira F, et al. Quantitative imaging methods in osteoporosis. Quant Imaging Med Surg. 2016; 6(6):680-698.
