Hydroxyapatite/beta-tricalcium phosphate scaffolds combined with adipose-derived stem cells for the treatment of spinal defects in rabbits

doi:10.3969/j.issn.2095-4344.0505

Abstract

Abstract:

BACKGROUND: Repair of bone defects is not only a clinical problem, but also a hot topic in the field of orthopedics. Although autologous bone grafting is considered as the “gold standard” for bone repair, its use is limited due to the limited source of autogenous bone, bone infections and pains that are easy to occur in the donor region. Allograft bones are always associated with immune rejection, slow healing, and infection. Therefore, it is imminent to develop new materials for bone repair.
OBJECTIVE: To explore the effect of rabbit adipose-derived stem cells (rADSCs) as seed cells and hydroxyapatite/β-tricalcium phosphate (HA/β-TCP) composite as a carrier on the repair of rabbit vertebral defects.
METHODS: Thirty-eight 3-month-old New Zealand white rabbits were selected, and two of them were used to culture rADSCs in vitro. Passage 3 rADSCc were inoculated on HA/β-TCP scaffolds and then cultured in vitro for 2 weeks. A 5 mm×5 mm×3 mm bone defect was prepared at the anterior edge of L4/5 vertebral body in the remaining 36 rabbits. These model rabbits were then randomized into cell-scaffold composite group, scaffold group and control group with no intervention, with 12 rabbits in each group. rADSCs/HA/β-TCP composite and HA/β-TCP scaffold were implanted into the cell-scaffold and HA/β-TCP groups, respectively. Anteroposterior and lateral DR of the spine and Lane-Sandhu X-ray were performed at 4, 8, 12 postoperative weeks. All rabbits were sacrificed at 12 postoperative weeks and specimens were collected for gross and histopathological observations.
RESULTS AND CONCLUSION: Under the gross observation, bone defects in the cell-scaffold group were essentially replaced by new bone tissues, which was significantly better than that in the scaffold group and control group. At 12 postoperative weeks, the material implanted was basically absorbed in the cell-scaffold group, partially absorbed in the scaffold group and poorly absorbed in the control group in which there was a clear boundary with the surrounding tissues and patchy calcified shadows were visible. X-ray results showed that the repair effect in the cell-scaffold group was better than that in the scaffold group and control group (P < 0.05). Histopathological findings showed the marked absorption of the implant in the cell-scaffold group, partial residual in the scaffold group with some fibrous calluses and osteoid tissues, and a large amount of fiber tissues and a small amount of calluses in the control group. Overall, the rADSCs/HA/β-TCA has a good ability to repair bone defects.

中国组织工程研究杂志出版内容重点：干细胞；骨髓干细胞；造血干细胞；脂肪干细胞；肿瘤干细胞；胚胎干细胞；脐带脐血干细胞；干细胞诱导；干细胞分化；组织工程

Key words: Spinal Injuries, Adipose Tissue, Stem Cells, Hydroxyapatites, Calcium Phosphates, Tissue Engineering

CLC Number:

R394.2

Wang Teng-fei, Song Xing-hua, Maimaitiaili Abulikemu, Chen Jiang-tao, Tao Ying, Yang Yong. Hydroxyapatite/beta-tricalcium phosphate scaffolds combined with adipose-derived stem cells for the treatment of spinal defects in rabbits[J]. Chinese Journal of Tissue Engineering Research, 2018, 22(13): 2081-2086.

Figures/Tables 3

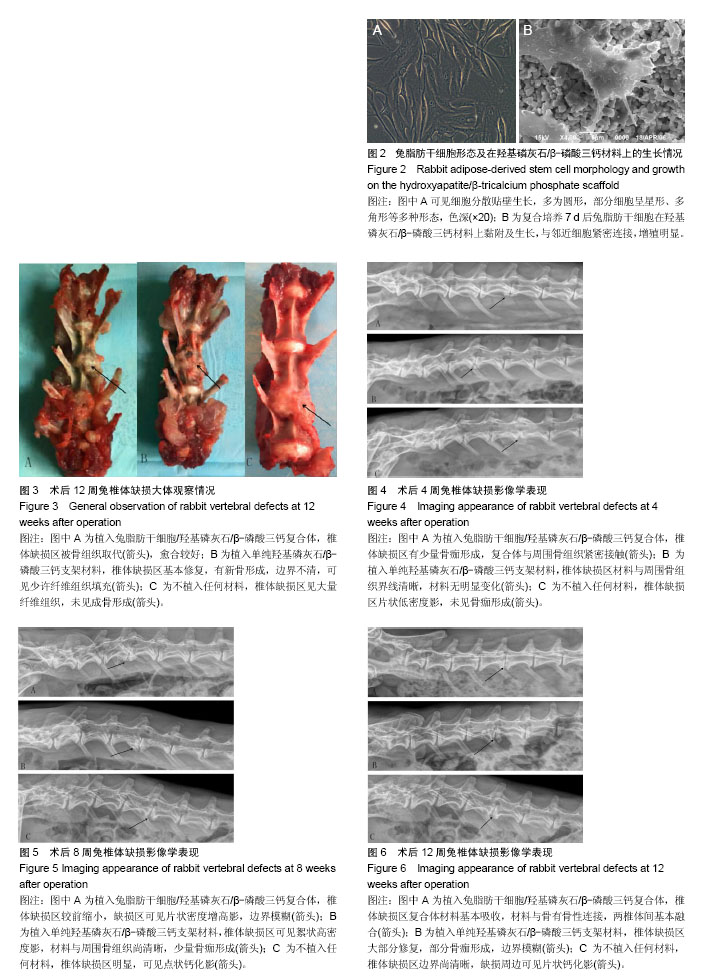

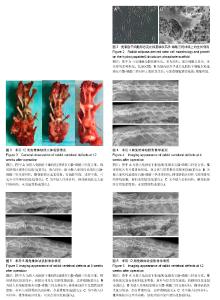

2.1 脂肪干细胞形态学原代兔脂肪干细胞培养三四个小时开始贴壁，呈小圆形，部分细胞呈多边形等形态，24 h后基本完全贴壁，分布均匀，增殖能力强，传代后平均3 d即可达到90%以上融合(图2A)。将兔脂肪干细胞与HA/β-TCA复合培养7 d后，在扫描电镜下可见材料表面呈多孔状，兔脂肪干细胞黏附于材料表面和空隙中，并向四周延伸，邻居细胞紧密连接，细胞在复合体上生长良好，增殖明显(图2B)。 2.2 大体观察结果术后所有兔伤口愈合良好，三四天后活动、进食基本正常。术后12周时，A组椎体缺损区被骨组织取代，表面未见明显复合体材料，愈合较好(图3A)。B组椎体缺损区基本修复，边界不清，有新骨形成，少许纤维组织填充，触及硬度不高(图3B)。C组椎体缺损区见大量纤维组织，未见成骨形成(图3C)。 2.3 影像学检查结果术后4周：A组椎体缺损区有少量骨痂形成，复合体与周围骨组织紧密接触(图4A)。B组椎体缺损区材料与周围骨组织界线清晰，材料无明显变化(图4B)。C组椎体缺损区界线清晰，片状低密度影，未见骨痂形成(图4C)。术后8周：A组椎体缺损区较前缩小，椎体缺损区可见片状密度增高影，材料吸收，边界模糊(图5A)。B组椎体缺损区可见絮状高密度影，材料与周围骨组织尚清晰，有少量骨痂形成(图5B)。C组椎体缺损区明显，可见点状钙化影(图5C)。术后12周：A组椎体缺损区复合体材料基本吸收，材料与骨有骨性连接，两椎体间基本融合(图6A)。B组椎体缺损区大部分修复，部分骨痂形成，边界模糊(图6B)。C组椎体缺损区边界尚清晰，缺损周边可见片状钙化影(图6C)。根据X射线片结果，按照Lane-Sandhu X射线评分标准进行椎体缺损修复的放射学评分，见表1。 2.4 组织病理学观察结果术后12周时，A组材料吸收明显，可见少量成纤维细胞及成骨细胞(图7A)。B组部分材料残留，可见到纤维性骨痂及少许类骨样组织形成(图7B)。C组可见大量纤维结缔组织，可见少许骨痂形成(图7C)。"

References

[1] Beamer GL, Turner J. Murine models of susceptibility to tuberculosis. Arch Immunol Ther Exp (Warsz). 2005;53(6): 469-483.

[2] Zumla A, George A, Sharma V, et al. The WHO 2014 global tuberculosis report--further to go. Lancet Glob Health. 2015; 3(1):e10-12.

[3] Rasouli MR, Mirkoohi M, Vaccaro AR, et al. Spinal tuberculosis: diagnosis and management. Asian Spine J. 2012;6(4):294-308.

[4] 曹雪飞,甄平.载药磷酸钙骨水泥治疗结核性骨缺损[J].实用骨科杂2014,20(11):1009-1011.

[5] Yuan J, Zhen P, Zhao HB, et al. The preliminary performance study of the 3D printing of a tricalcium phosphate scaffold for the loading of sustained release anti-tuberculosis drugs. J Mater Sci. 2015;50(5):2138-2147.

[6] Langer R, Vacanti JP. Tissue Engineering. Science.1993; 260: 920-926.

[7] 胡金龙.组织工程学技术治疗骨缺损的最新研究进展[J].中国矫形外科杂志,2013,21(2):150-153.

[8] Zuk PA, Zhu M, Mizuno H, et al. Multilineage cells from human adipose tissue: implications for cell-based therapies. Tissue Eng. 2001;7(2):211-228.

[9] Zuk PA, Zhu M, Ashjian P, et al. Human adipose tissue is a source of multipotent stem cells. Mol Biol Cell. 2002;13(12): 4279-4295.

[10] 王冠聪. 具有二级三维网络结构的壳聚糖/羟基磷灰石骨组织工程复合支架材料的构建及其生物性能研究[D].济南:山东大学, 2012.

[11] 李东亚,郑欣,邱旭升,等.新西兰兔桡骨骨缺损动物模型的制作[J].中华实验外科杂志,2013,30(9):2012-2013.

[12] 张屹,陈建常,史振满.异种骨支架及其衍生材料治疗骨缺损的研究现状与进展[J].中国矫形外科杂志志,2014,22(14): 1277-1279.

[13] 邢文华,霍洪军,肖宇龙,等.不同植入物内固定修复胸腰段脊柱结核：后凸Cobb角及脊柱稳定性比较[J].中国组织工程研究,2015, 19(13):2034-2039.

[14] Liu J, Kerns DG. Mechanisms of guided bone regeneration: a review. Open Dent J. 2014;8:56-65.

[15] 吴子征,李受珉,王泽,等.同种异体脂肪源性间充质干细胞复合β-磷酸三钙支架修复兔桡骨大段骨缺损[J].复旦学报:医学版,2015, 42(3):338-343.

[16] 王贵玲,仇丽鸿,庞希宁.间充质干细胞的旁分泌作用及其在颅颌面骨再生治疗中的应用研究进展[J].中国实用口腔科杂志,2016, 9(6):373-378.

[17] Liu G, Zhang Y, Liu B, et al. Bone regeneration in a canine cranial model using allogeneic adipose derived stem cells and coral scaffold. Biomaterials. 2013;34(11):2655-2664.

[18] Kim BS, Park KE, Kim MH, et al. Effect of nanofiber content on bone regeneration of silk fibroin/poly(ε-caprolactone) nano/microfibrous composite scaffolds. Int J Nanomedicine. 2015;10:485-502.

[19] Seok H, Kim MK, Kim SG, et al. Comparison of silkworm-cocoon-derived silk membranes of two different thicknesses for guided bone regeneration. J Craniofac Surg. 2014;25(6):2066-2069.

[20] Lindfors LT, Tervonen EA, Sándor GK, et al. Guided bone regeneration using a titanium-reinforced ePTFE membrane and particulate autogenous bone: the effect of smoking and membrane exposure. Oral Surg Oral Med Oral Pathol Oral Radiol Endod. 2010;109(6):825-830.

[21] Riggenbach MD, Jones GL, Bishop JY. Open reduction and internal fixation of clavicular nonunions with allograft bone substitute. Int J Shoulder Surg. 2011;5(3):61-67.

[22] Mitchell JB, McIntosh K, Zvonic S, et al. Immunophenotype of human adipose-derived cells: temporal changes in stromal-associated and stem cell-associated markers. Stem Cells. 2006;24(2):376-385.

[23] 梁求真,折胜利,宋兴华,等.体外构建抗结核骨组织工程复合体的实验研究[J].中国矫形外科杂志,2014,22(19):1789-1796.

[24] Tang ZB, Cao JK, Wen N, et al. Posterolateral spinal fusion with nano-hydroxyapatite-collagen/PLA composite and autologous adipose-derived mesenchymal stem cells in a rabbit model. J Tissue Eng Regen Med. 2012;6(4):325-336.

[25] Lange C, Bruns H, Kluth D, et al. Hepatocytic differentiation of mesenchymal stem cells in cocultures with fetal liver cells. World J Gastroenterol. 2006;12(15):2394-2397.

[26] 折胜利,罗兰,宋兴华,等. PLA/PLGA共聚物在组织工程中的应用[J].组织工程与重建外科杂志,2011,7(4):235-237.

[27] 杨晓波,裴福兴,严永刚,等.聚氨基酸复合纳米羟基磷灰石的体内生物相容性实验研究[J].中国矫形外科杂志,2010,18(21): 1809-1813.

[28] Teixeira S, Fernandes H, Leusink A, et al. In vivo evaluation of highly macroporous ceramic scaffolds for bone tissue engineering. J Biomed Mater Res A. 2010;93(2):567-575.

[29] Khan SN, Tomin E, Lane JM. Clinical applications of bone graft substitutes. Orthop Clin North Am. 2000;31(3):389-398.

[30] 李海建,龙志成,宋兴华,等HA/β-TCA复合材料与同种异体骨体外兔脂肪干细胞生物相容性的对比实验[J].新疆医科大学学报, 2015,38(8):949-953.

[31] 刘正文,呼西旦,付明花,等.兔脊柱结核模型的构建[J].中华实验外科杂志,2012,29(4):758-761.
