Changes in properties of treated allogeneic tendons after multiple freeze-thaw cycles

doi:10.12307/2025.487

Abstract

Abstract: BACKGROUND: Allogeneic tendons are often used in clinical treatment of tendon and ligament injuries, which need to be treated before clinical application. At present, allogeneic tendons will face multiple freeze-thaw cycles after cryopreservation, but there is no relevant research on the changes in the properties of the treated allogeneic tendon after several freeze-thaw cycles.
OBJECTIVE: To explore the changes in mechanical properties and composition of allogeneic tendon after multiple freeze-thaw cycles.
METHODS: The treated allogeneic tendon was frozen and thawed 3, 6, and 10 times at -40 ℃ (or -80 ℃), respectively. The mechanical test, DNA content, glycosaminoglycan sulfate, hydroxyproline content and total protein content of the allogeneic tendon after freezing and thawing were detected.

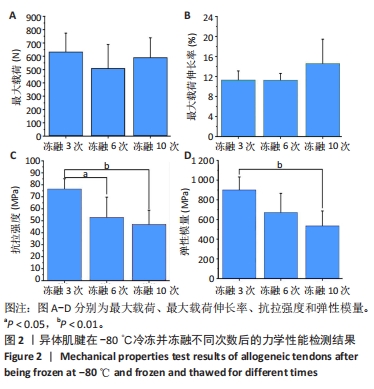

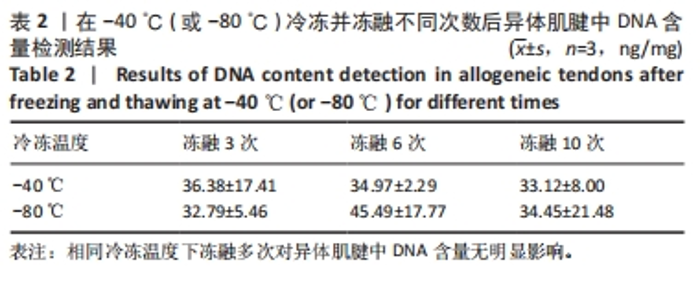

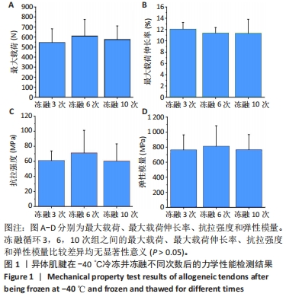

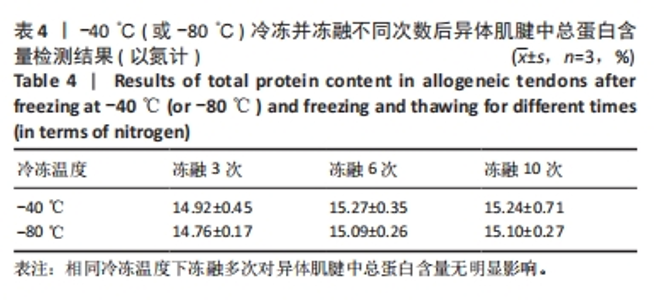

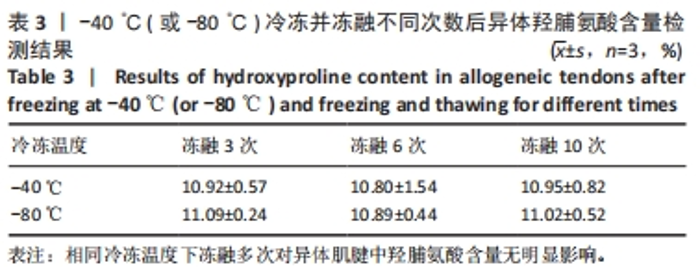

RESULTS AND CONCLUSION: (1) There was no significant difference in the maximum load, maximum load elongation, tensile strength and elastic modulus between groups after freezing-thawing cycles for 3, 6, and 10 times at -40 ℃ (P > 0.05). There was no significant difference in the maximum load and maximum load elongation between the groups after freezing-thawing cycles for 3, 6, and 10 times at -80 ℃ (P > 0.05). The tensile strength of the group with 3 cycles of freezing and thawing was higher than that of the groups with 6 and 10 cycles of freezing and thawing (P < 0.05). The elastic modulus of the group with 3 cycles of freezing and thawing was higher than that of the group with 10 cycles of freezing and thawing (P < 0.05). (2) The freezing and thawing times did not affect the contents of DNA, hydroxyproline, total protein, and sulfated glycosaminoglycan in allogeneic tendon when stored at -40 ℃ (or -80 ℃). (3) These findings suggest that in -40℃ storage, the performance of the allogeneic tendon should not be affected by taking out and putting back the tendon less than 10 times, while in -80 ℃ storage, the allogeneic tendon should be taken out and put back less than 6 times.

Key words: allogeneic tendon, freeze-thaw cycle, mechanical property, component detection, process treatment, engineered tendon

CLC Number:

Hu Kai, Guo Yongqin, Shao Yiran, Wang Jingjing. Changes in properties of treated allogeneic tendons after multiple freeze-thaw cycles[J]. Chinese Journal of Tissue Engineering Research, 2025, 29(28): 6046-6051.

Figures/Tables 6

References

[1] 张佩,王成,杨军.深低温保存同种异体肌腱的基础研究进展[J].医学综述,2021,27(6):1096-1101.
[2] 杨金娟,谢敏豪,黄伟平,等.运动性肌腱损伤研究进展[J].中国运动医学杂志,2019,38(9):809-815.
[3] 王晓乐,陈道振,陈坤峰,等.异体肌腱在陈旧性拇长伸肌腱断裂修复中的临床应用[J].实用手外科杂志,2019,33(1):58-59.
[4] 史占雷,高顺红,刘德群.同种异体肌腱移植的研究进展[J].中国煤炭工业医学杂志,2007,10(10):1137-1139.
[5] 孙文爽,赵建宁,包倪荣.肌腱损伤治疗的研究进展[J].医学研究生学报,2017,30(3):324-328.
[6] 段晓杰,王萌,陈丽媛,等.乙醇工艺对同种异体肌腱病毒灭活效果的研究[J].中国药事,2021,35(5):544-551.
[7] 赵彦涛,刘思扬,尹惠琼,等.γ射线终末辐照对同种异体肌腱病毒灭活效果及生物力学性能影响的研究[J].中国骨与关节杂志,2018,7(5): 389-393.
[8] 沙勇,李福兵,唐辉,等.深低温冷冻保存同种异体肌腱移植修复陈旧性跟腱断裂研究[J].西南国防医药,2014,24(7):707-709.
[9] 唐林俊,陈浩贤,崔太安,等.同种异体肌腱修复肌腱缺损的远期疗效观察[J].中国修复重建外科杂志,2011,25(3):341-343.
[10] 沙勇,唐辉,丁晶,等.同种异体肌腱解剖重建修复慢性踝关节不稳[J].中国组织工程研究,2014,18(27):4401-4405.
[11] LEE AH, ELLIOTT DM. Freezing does not alter multiscale tendon mechanics and damage mechanisms in tension. Ann N Y Acad Sci. 2017;1409(1):85-94.
[12] 曾心一,曹俊涛.深低温处理同种异体肌腱移植的生物力学性能实验研究[J].中国医药导报,2007,4(33):76-77.
[13] 徐光辉,孙康,徐强,等.深低温冷冻异体肌腱移植的组织学和生物力学研究[J].中国矫形外科杂志,2008,16(24):1883-1886.
[14] LANSDOWN DA, RIFF AJ, MEADOWS M, et al. What Factors Influence the Biomechanical Properties of Allograft Tissue for ACL Reconstruction A Systematic Review. Clin Orthop Relat Res. 2017;475(10):2412-2426.
[15] ARNOUT N, MYNCKE J, VANLAUWE J, et al. The influence of freezing on the tensile strength of tendon grafts: A biomechanical study. Acta Orthop Belg. 2013;79(4):435-443.
[16] SALEHPOUR A, BUTLER DL, PROCH FS, et al. Dose-Dependent Response of Gamma Irradiation on Mechanical Properties and Related Biochemical Composition of Goat Bone-Patellar Tendon-Bone Allografts. J Orthop Res, 1995;13(6):898-906.
[17] 徐丽明,邵安良,赵艳红.动物源性生物材料残留DNA的定量检测法[J].生物医学工程学杂志,2012,29(3):479-485.
[18] YY/T 1810-2022,组织工程医疗产品用以评价软骨形成的硫酸糖胺聚糖(sGAG)的定量检测[S].
[19] GB 5009.5-2016,食品安全国家标准食品中蛋白质的测定[S].
[20] YY/T 1453-2016, 组织工程医疗器械产品 Ⅰ型胶原蛋白表征方法[S].
[21] CABORN DN, SELBY JB. Allograft anterior tibialis tendon with bioabsorbable interference screw fixation in anterior cruciate ligament reconstruction. Arthroscopy. 2002;18(1):102-105.
[22] GREAVES LL, HECKER AT, BROWN CH JR. The effect of donor age and low-dose gamma irradiation on the initial biomechanical properties of human tibialiS tendon al lografts. Am J Sports Med. 2008;36(7):1358-1366．
[23] MCALLISTER DR, JOYCE MJ, MANN BJ, et al. Allograft update: the current status of tissue regulation, procurement, processing, and sterilization. Am J Sports Med. 2007;35(12):2148-2158.
[24] HERNIGOU P, GRAS G, MARINELLO G, et al. Influence of Irradiation on the Risk of Transmission of HIV in Bone Grafts Obtained from Appropriately Screened Donors and Followed by Radiation Sterilization. Cell Tissue Bank. 2000;1(4):279-289.
[25] SMITH RA, INGELS J, LOCHEMES JJ, et al. Gamma irradiation of HIV-1. J Orthop Res. 2001;19(5):815-819.
[26] NIKOLAOU PK, SEABER AV, GLISSON RR, et al. Anterior cruciate ligament allograft transplantation. Long-term function, histology, revascularization, and operative technique. Am J Sports Med. 1986;14(5):348-360.
[27] SCHEFFLER SU, SCHMIDT T, GANGEY I, et al. Fresh-frozen free-tendon allografts versus autografts in anterior cruciate ligament reconstruction:delayed remodeling and inferior mechanical function during long-term healing in sheep. Arthroscopy. 2008;24(4):448-458.
[28] DUSTMANN M, SCHMIDT T, GANGEY I, et al. The extracellular remodeling of free-soft-tissue autografts and allografts for reconstruction of the anterior cruciate ligament: a comparison study in a sheep model. Knee Surg Sports Traumatol Arthrosc. 2008;16(4):360-369.
[29] NOYES FR, BUTLER DL, GROOD ES, et al. Biomechanical analysis of human ligament grafts used in knee-ligament repairs and reconstructions. J Bone Joint Surg Am. 1984;66(3):344-352.
[30] 沙川华,张涛,李龙.人体小腿肌腱生物材料力学特征实验研究[J].成都体育学院学报,2016,42(4):82-86.
[31] 吴延平,王英振,焦兆德,等.反复冻融处理同种异体移植兔跟腱组织学及生物力学变化[J].中国组织工程研究与临床康复,2009,13(5):816-820.
[32] HUANG H, ZHANG J, SUN K, et al. Effects of repetitive multiple freeze-thaw cycles on the biomechanical properties of human flexor digitorum superficialis and flexor pollicis longus tendons. Clin Biomech (Bristol, Avon). 2011;26(4):419-423.
[33] FIDELER BM, VANGSNESS CT JR, LU B, et al. Gamma irradiation: effects on biomechanical properties of human bone-patellar tendon-bone allografts. Am J Sports Med. 1995;23(5):643-646.
[34] MCGILVRAY KC, SANTONI BG, TURNER AS, et al. Effects of (60)Co gamma radiation dose on initial structural biomechanical properties of ovine bone-patellar tendon-bone allografts. Cell Tissue Bank. 2011;12(2):89-98.
[35] SALEHPOUR A, BUTLER DL, PROCH FS, et al. Dose-dependent response of gamma irradiation on mechanical properties and related biochemical composition of goat bone-patellar tendon-bone allografts. J Orthop Res. 1995;13(6):898-906.
[36] GRECO KV, FRANCIS L, HUANG H, et al. Is quercetin an alternative natural crosslinking agent to genipin for long-term dermal scaffolds implantation? J Tissue Eng Regen Med. 2018;12(3):e1716-e1724.
[37] RYOU H, TURCO G, BRESCHI L, et al. On the stiffness of demineralized dentin matrices. Dent Mater J. 2016;32(2):161-170.
[38] 沙川华,陈孟诗,吴佳,等.人体前臂肌腱生物力学特征实验研究[J].体育科学,2010,30(3):42-45.
[39] 尤田,袁树芳,白露,等.跟腱愈合相关机制的研究进展[J].中华骨与关节外科杂志,2020,13(1):84-88.
[40] 刘搏宇,李宏宇.肌腱损伤治疗方法的研究进展[J].中国临床新医学, 2015,8(7):700-703.
[41] KJAER M. Role of extracellular matrix in adaptation of tendon and skeletal muscle to mechanical loading. Physiol Rev. 2004;84(2):649-698.
[42] 万彦林,高冰,王丽敏,等.同种异体肌腱羟脯氨酸测定的正交试验[J].中国矫形外科杂志,2024,32(4):356-361.
[43] BERG RA, PROCKOP DJ. The thermal transition of a non-hydroxylated form of collagen. Evidence for a role for hydroxyproline in stabilizing the triple-helix of collagen. Biochem Biophys Res Commun. 1973;52(1):115-120.
